Electronic Climate Control Panel
>>
Air Delivery
Air Delivery

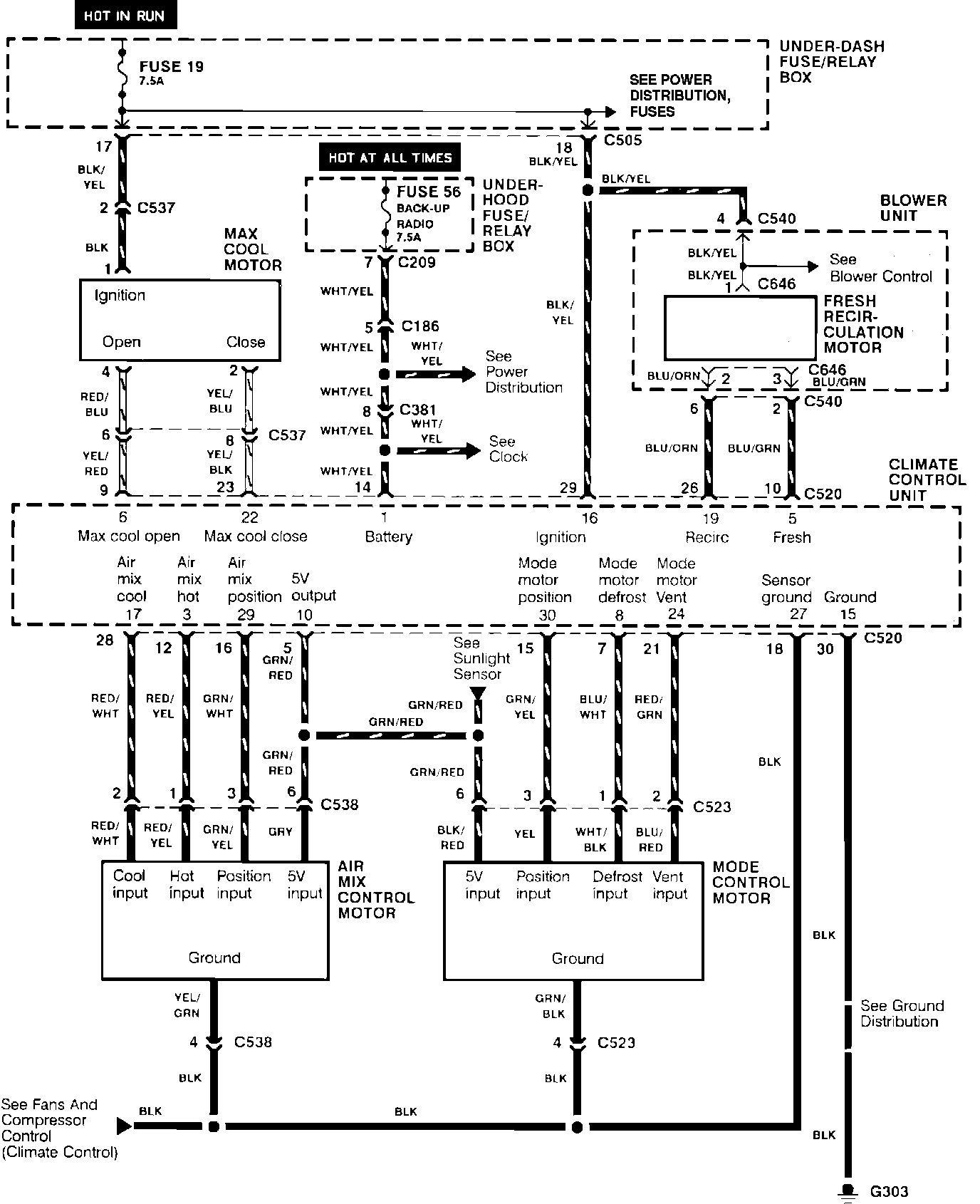

Air Conditioning (automatic): Air Delivery:
