Cabin Temperature Sensor / Switch: Service and Repair

Replacement
The in-car temperature sensor assembly includes a small fan (aspirator fan) to draw air past the sensor.

NOTE: SRS wire harness is routed near the console.

WARNING: All SRS wire harnesses and connectors are colored yellow. Do not use electrical test equipment on these circuit.

CAUTION: Be careful not to damage the SRS wire harnesses when servicing the console.

1. Remove the climate control unit.

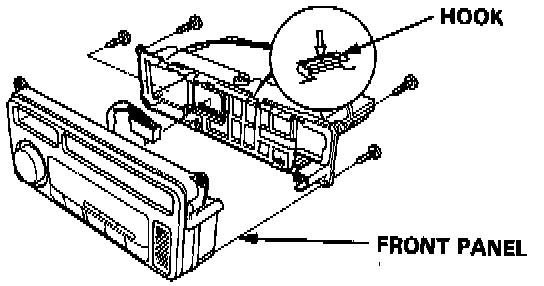

2. Remove the front panel of climate control unit.

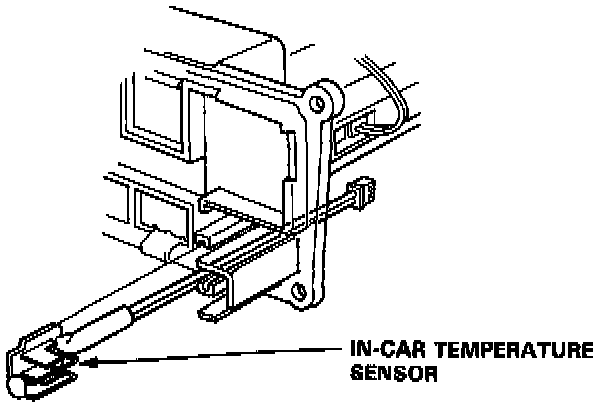

3. Disconnect the in-car sensor connector from the side of the climate control unit.





4. Remove the air intake tube.





5. Push open the hook, then pull out the sensor.
