Component Test

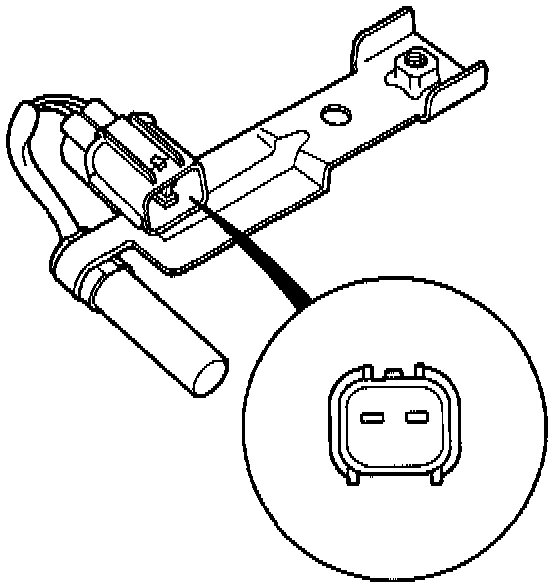

Compare the resistance reading between terminals of the outside air temperature sensor with specifications shown in the graph: It should be within specification.





CAUTION: The sensor uses a thermistor which can be damaged if high current is applied to it during testing. Therefore, use a circuit tester that puts out a measuring current of 1 mA or less. (At 20 K ohms range)
