Home
>>
Acura
>>
1991
>>
Legend Sedan V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 17
Fuse 17

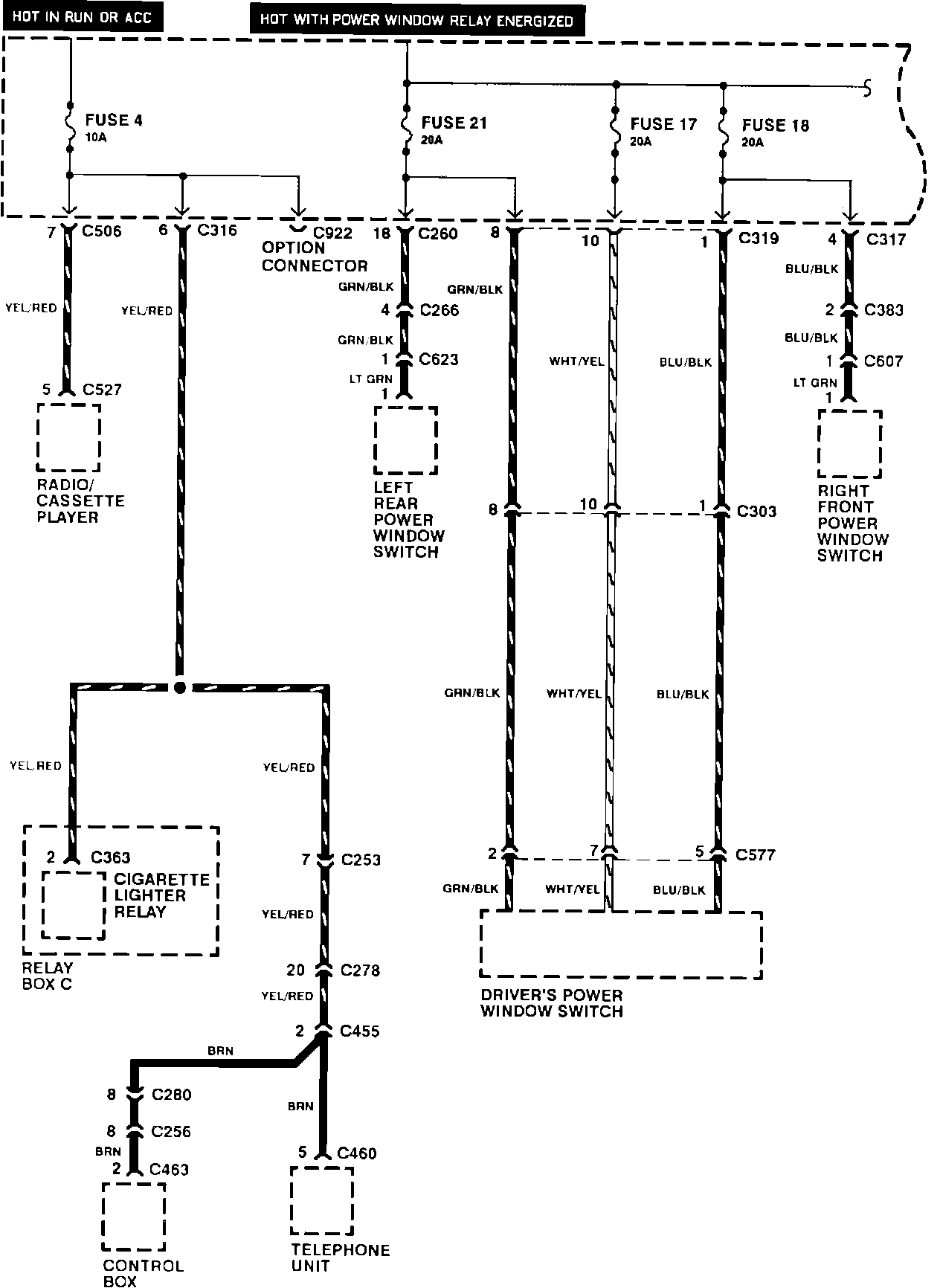

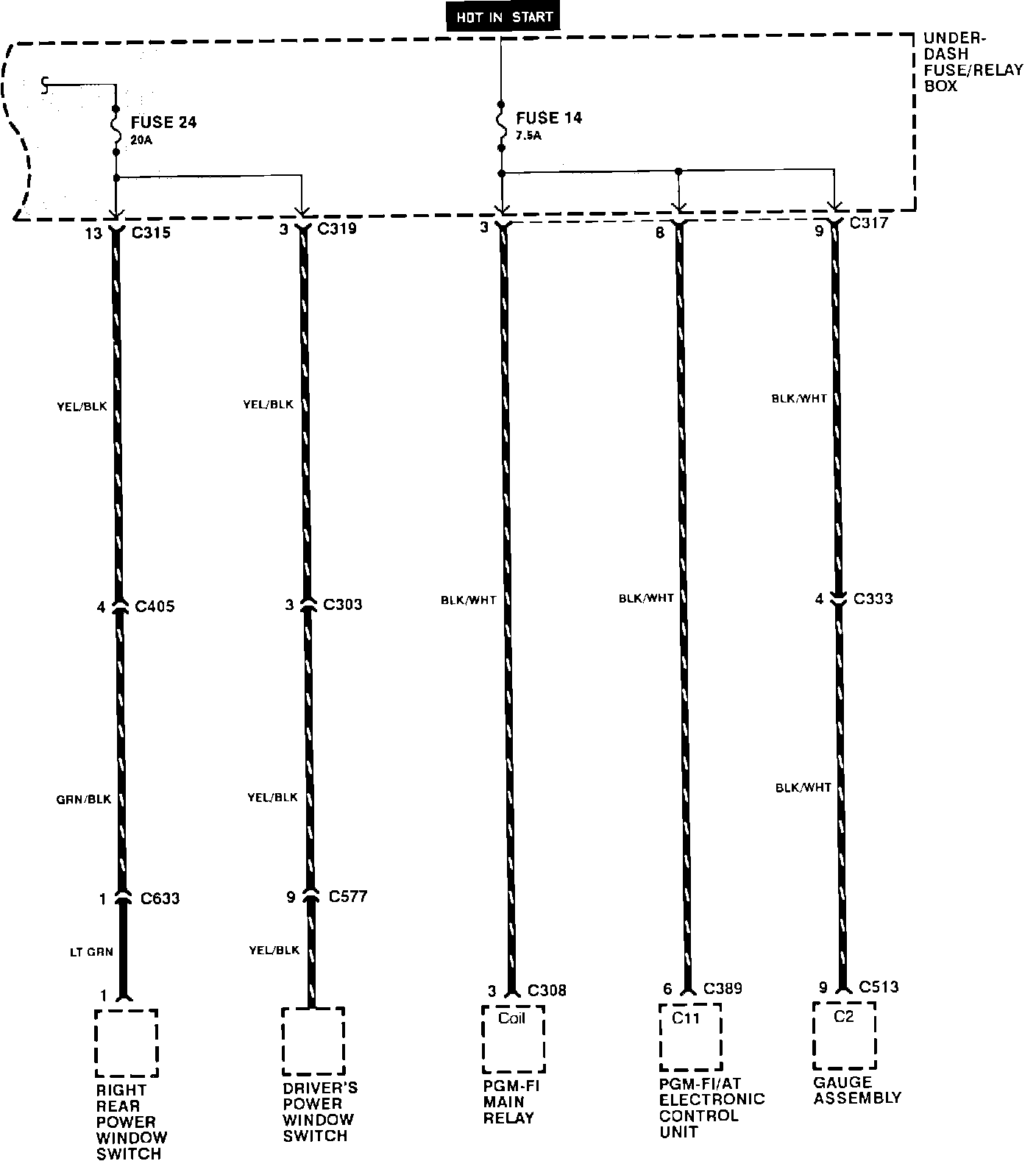

Power Distribution: Fuses 4, 14, 17, 18, 21 And 24:
Power Distribution: Fuses 4, 14, 17, 18, 21 And 24:
