Power and Ground Distribution
>>
Fuse
>>
Fuse 12
Fuse 12

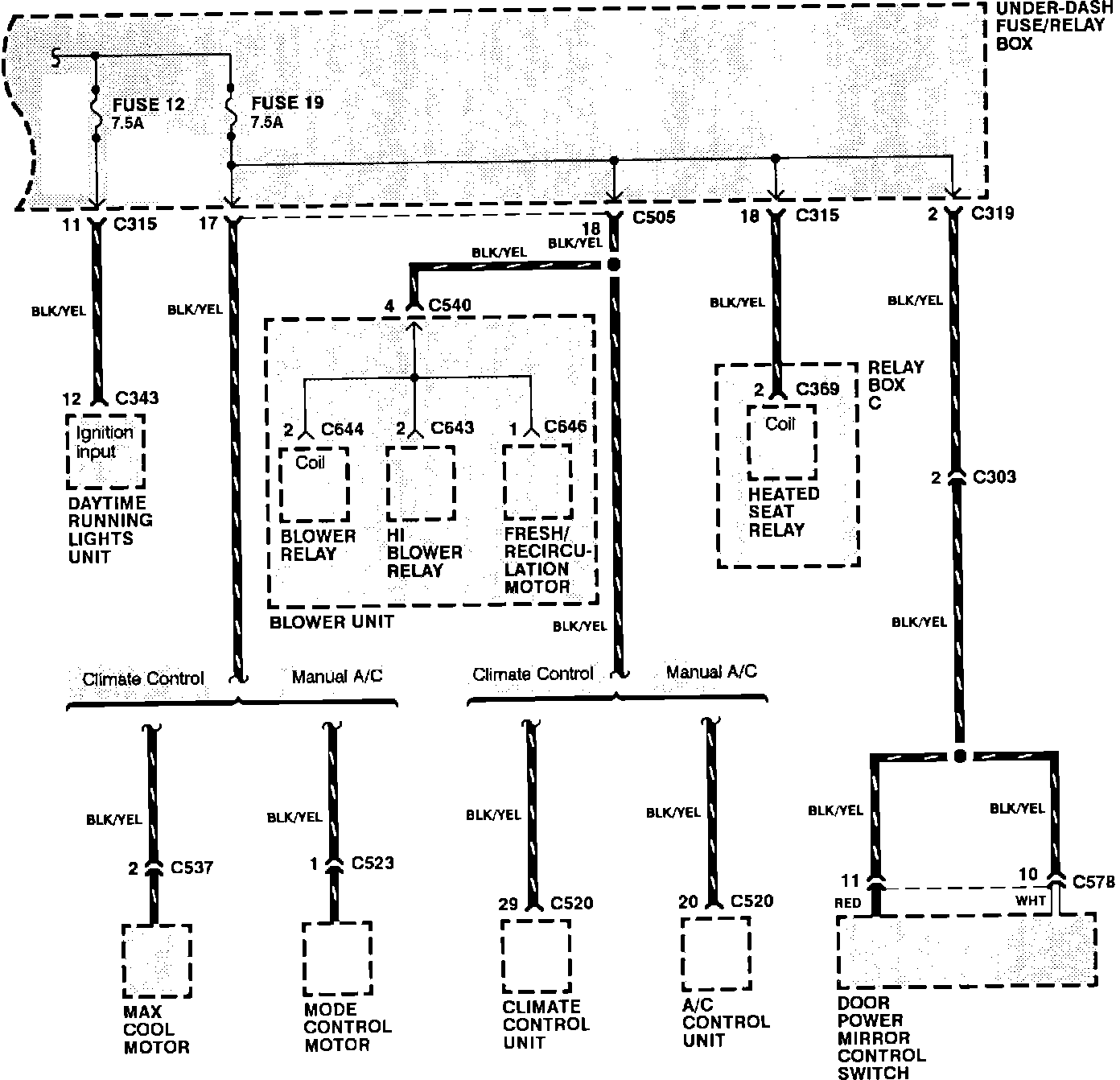

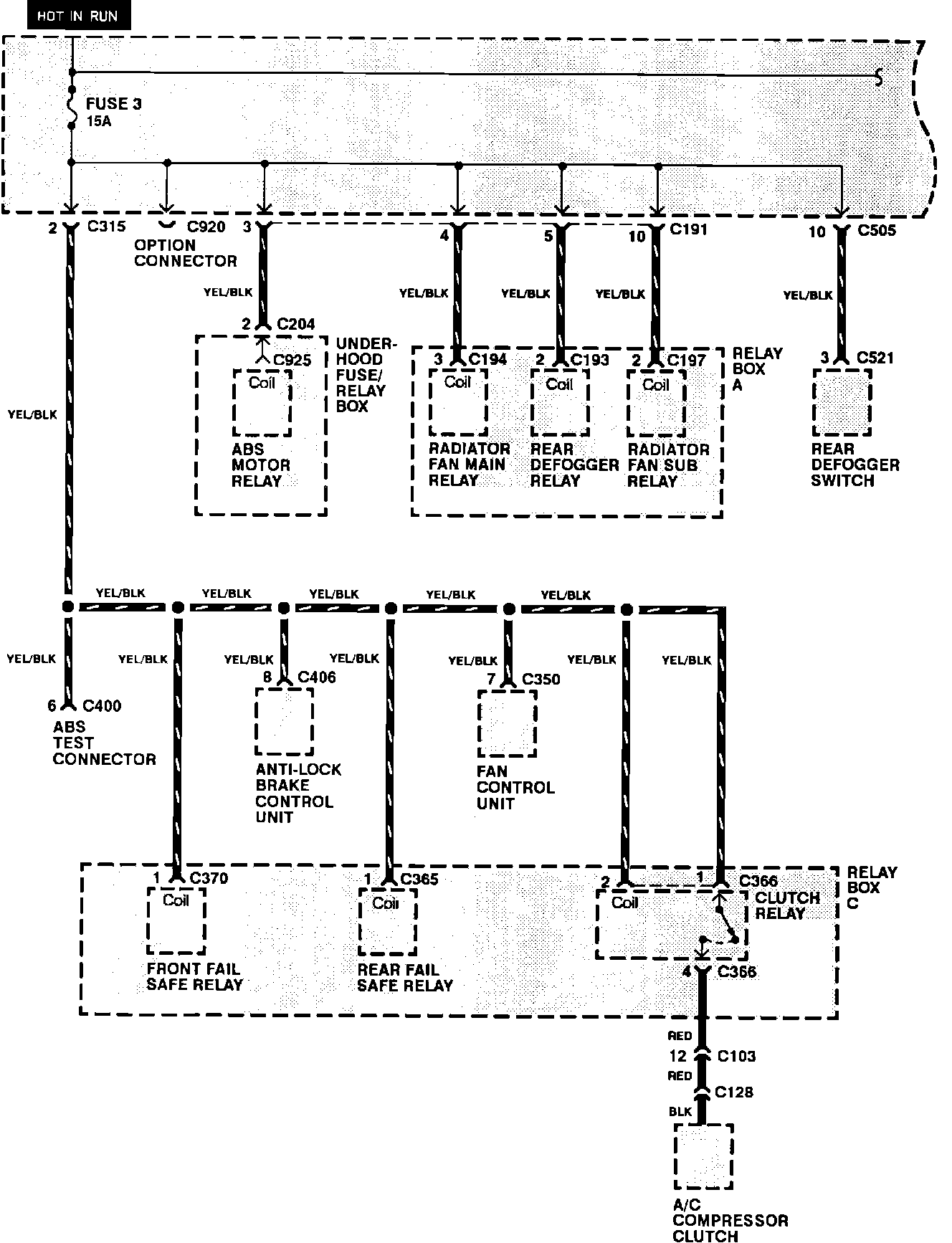

Power Distribution: Fuses 3, 12 And 19:
Power Distribution: Fuses 3, 12 And 19:
