Home
>>
Acura
>>
1991
>>
Legend Sedan V6-3206cc 3.2L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Control Assembly, HVAC
>>
Manual A/C
>>
Compressor Controls
Compressor Controls

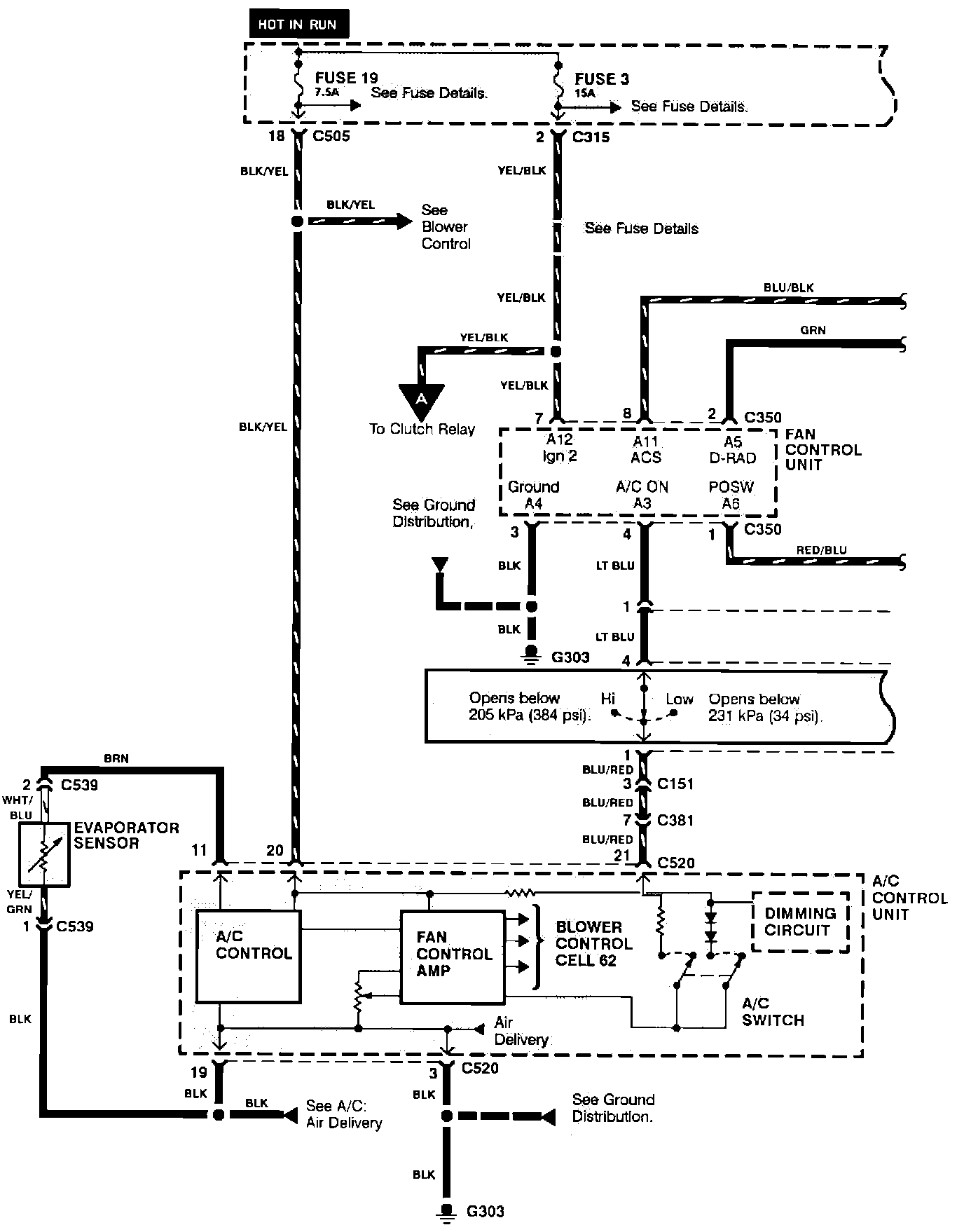

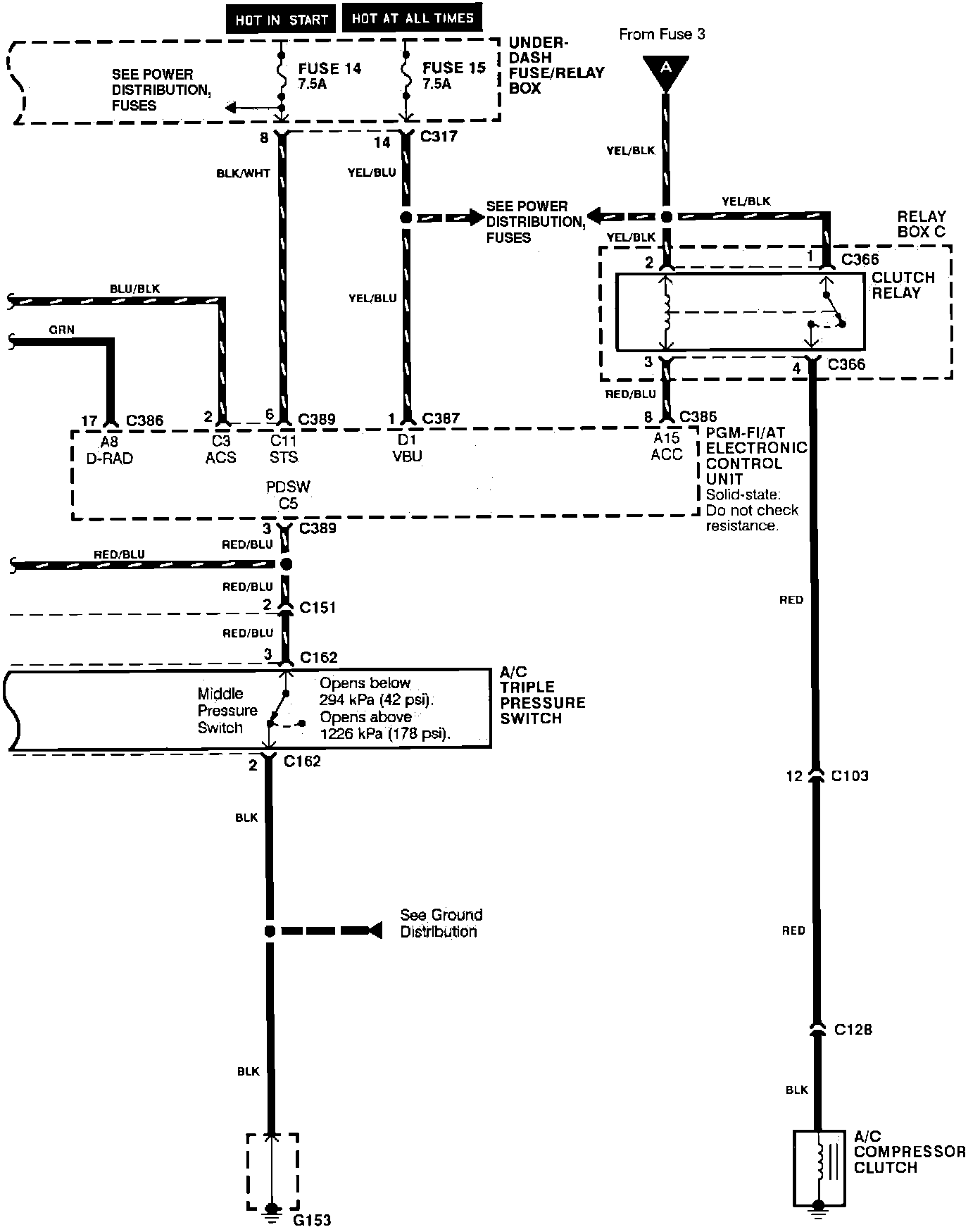

Air Conditioning (Manual): Controls:
Air Conditioning (Manual): Controls:
