Door Lock Cylinder Switch: Testing and Inspection

Key Cylinder Switch Test




1. Remove the door trim panel.
2. Disconnect the 3-P connector from the actuator.

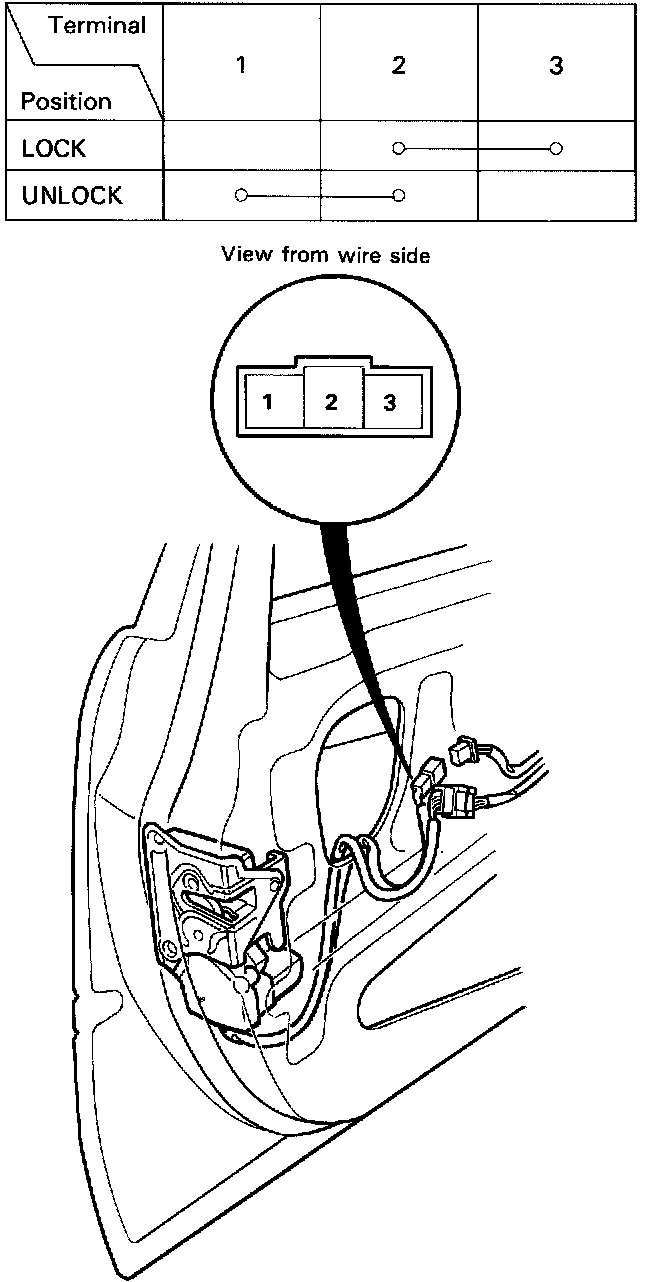

3. Check for continuity between the terminals in each switch position according to the tables.
