Console: Service and Repair

Replacement

1. To remove the center console, first remove the:
- Center console panel.
- Center armrest.
- Stereo cassette/radio.
- Glove box lower panel.
- Glove box.
- L. glove box cover.
- Dashboard lower cover.

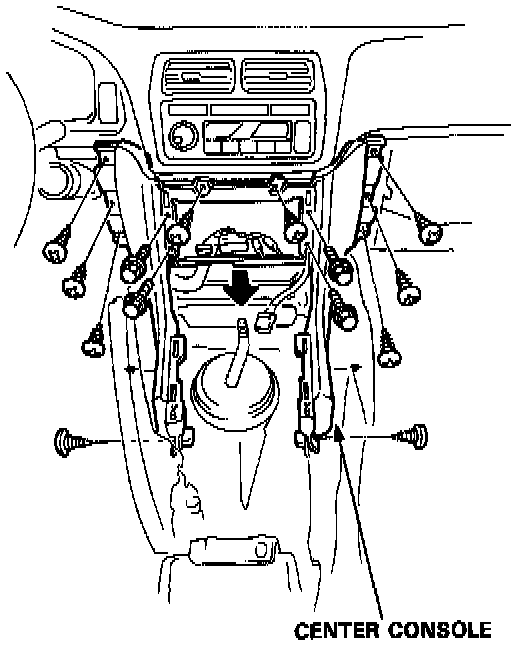

2. Remove the 10 screws and 4 bolts, then remove the center console.

NOTE:
- Take care not to scratch the dashboard.
- Do not drop the screws and bolts inside the dashboard.

3. Installation is the reverse order of removal.
