Arm Rest: Service and Repair

Replacement

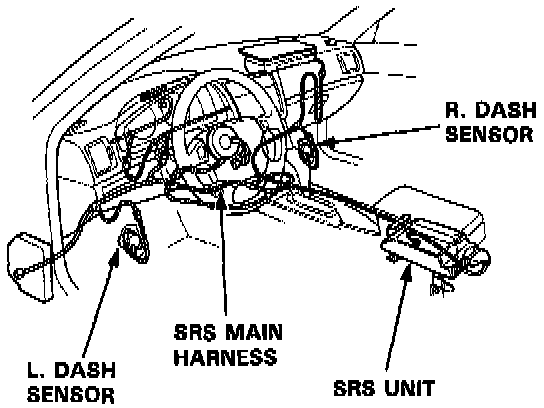

SRS wire harnesses are routed near the center console panel and center armrest.

WARNING: All SRS wire harnesses and connectors are colored yellow. Do not use electrical test equipment on these circuits.

CAUTION: Be careful not to damage the SRS wire harnesses when servicing the center console panel and center armrest.

NOTE:
- Take care not to scratch the dashboard.
- Do not drop the screw inside the center console.

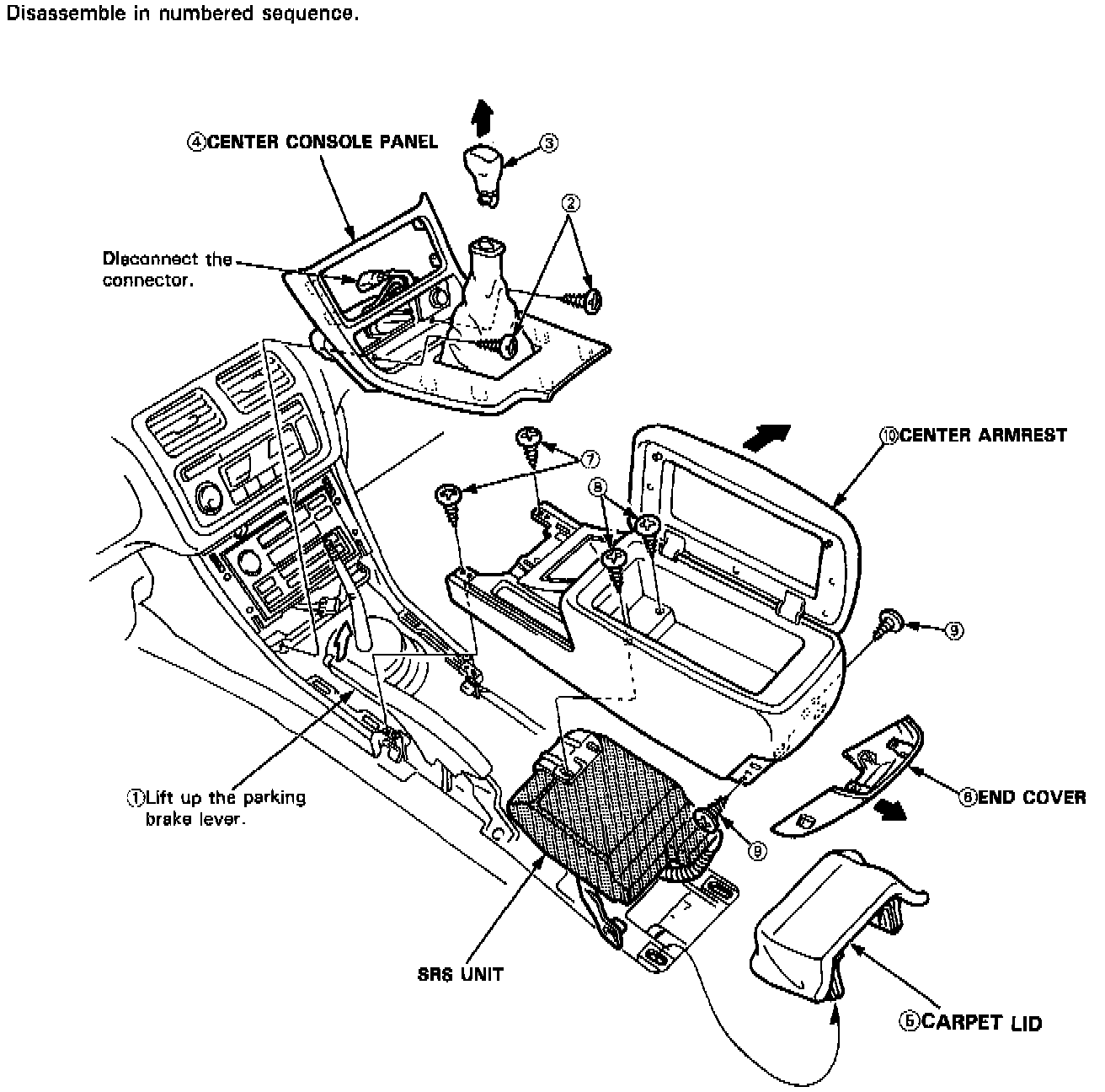

1. Disassemble in numbered sequence.
2. Installation is the reverse order of removal.
