Chamber Volume Control System
Chamber Volume Control System

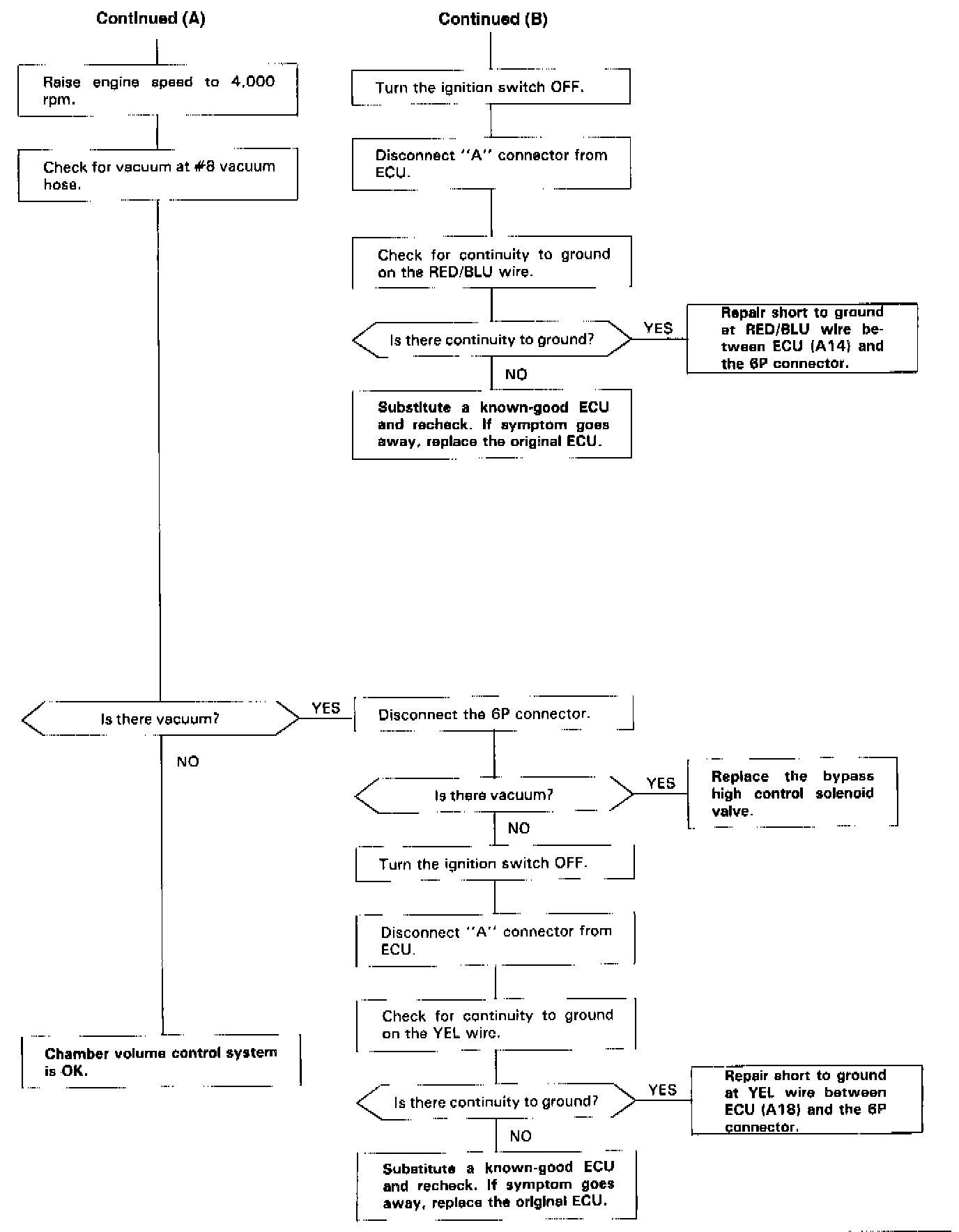

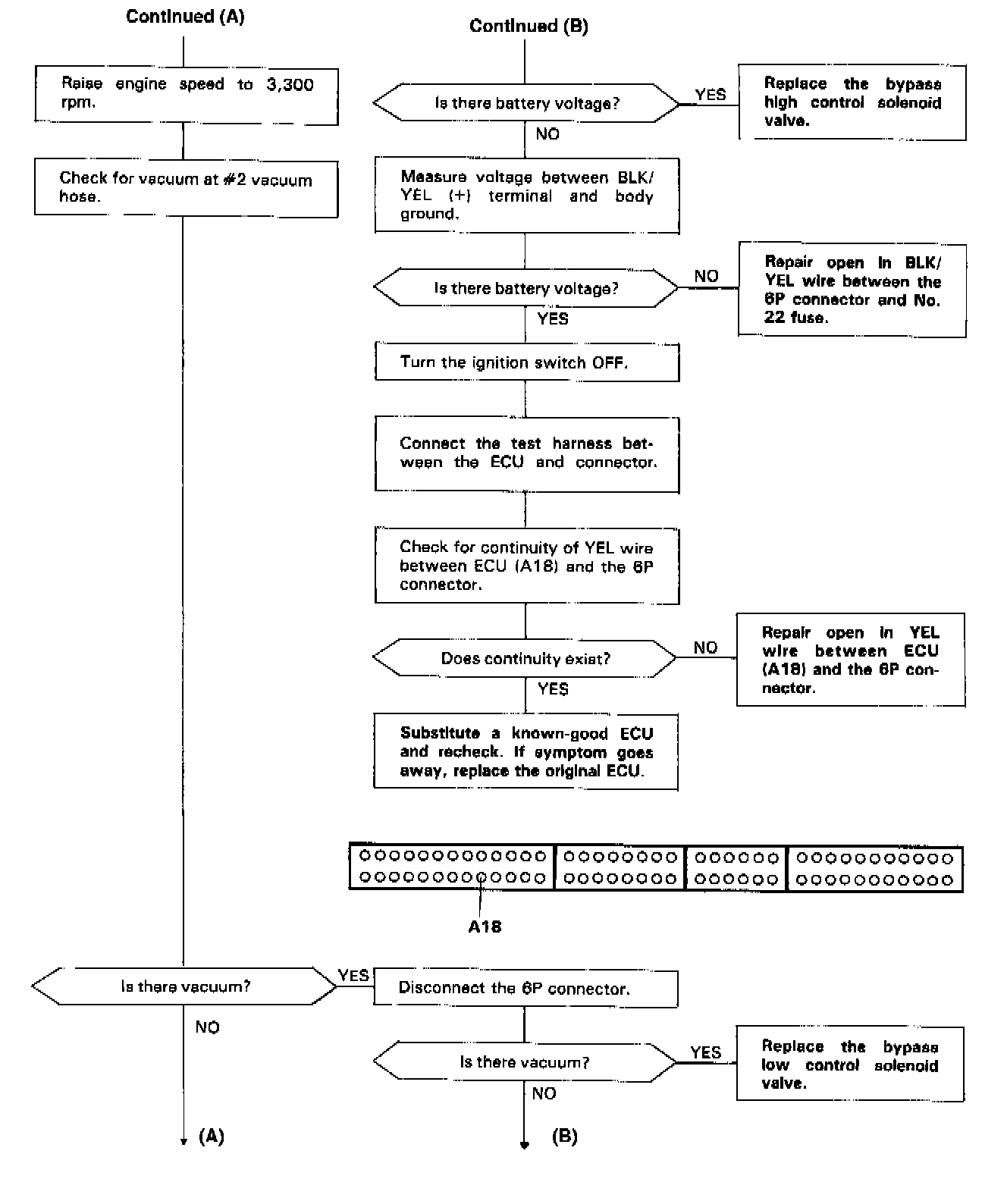

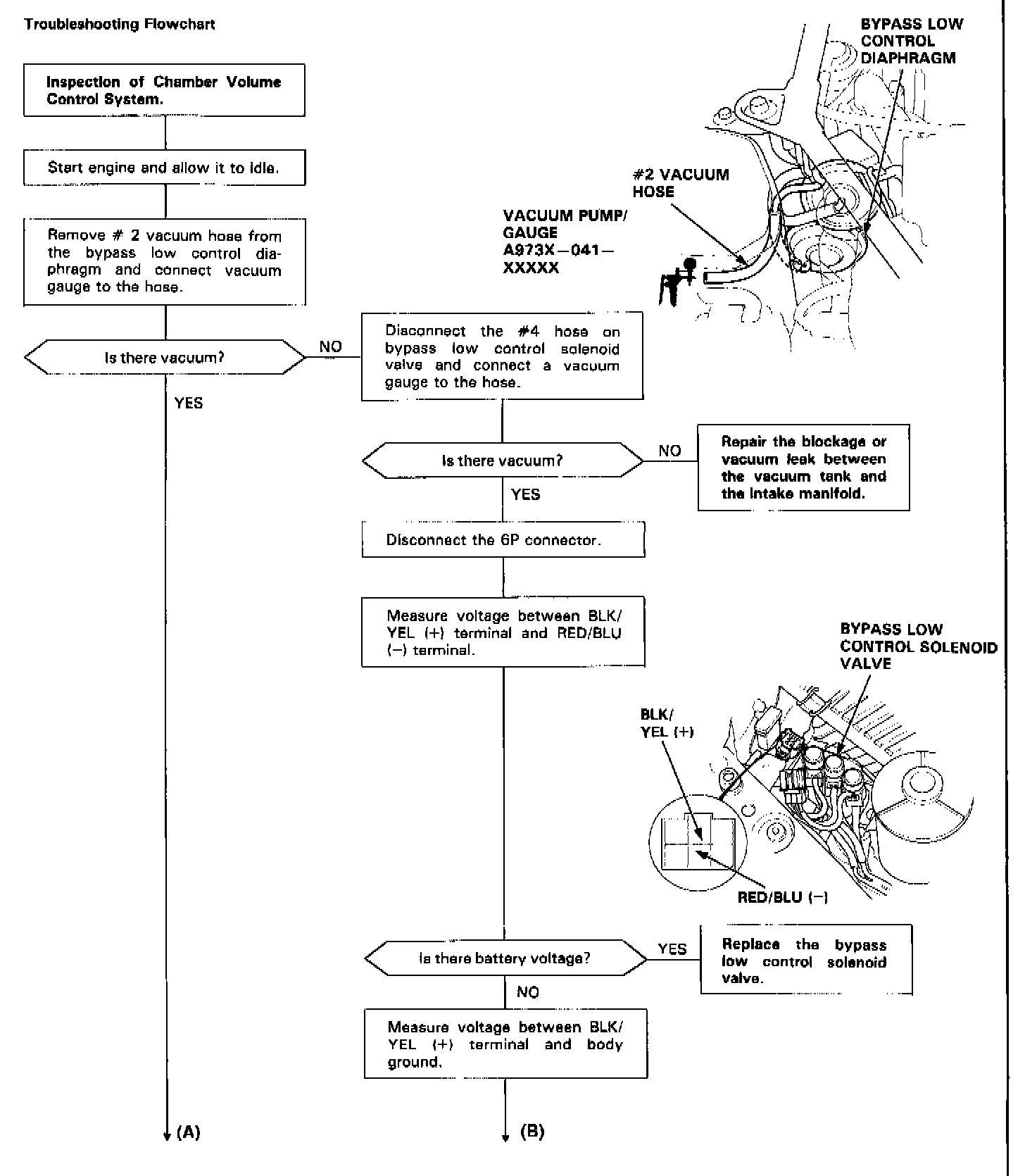

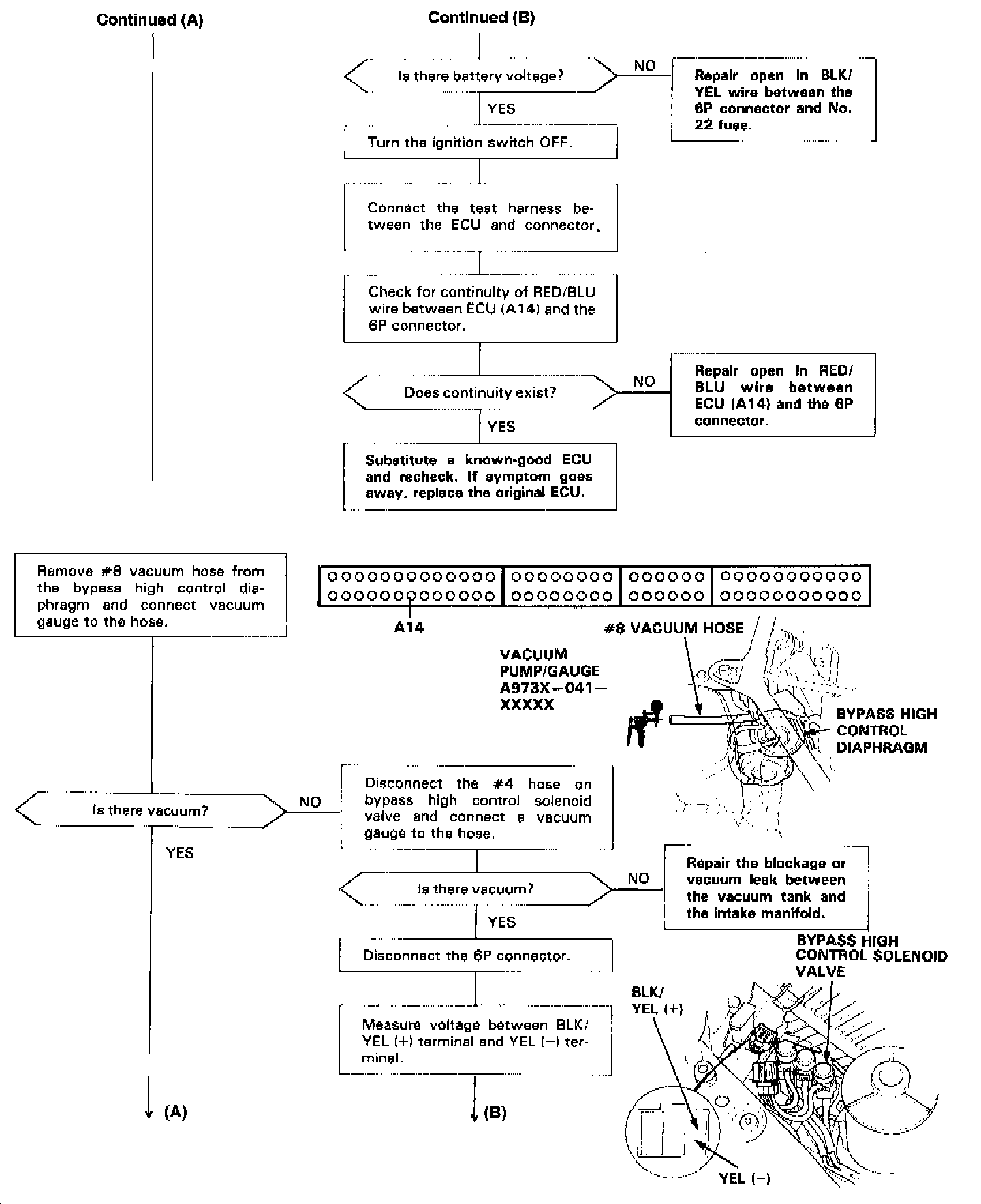

Troubleshooting Flowchart -
Chamber Volume Control System
