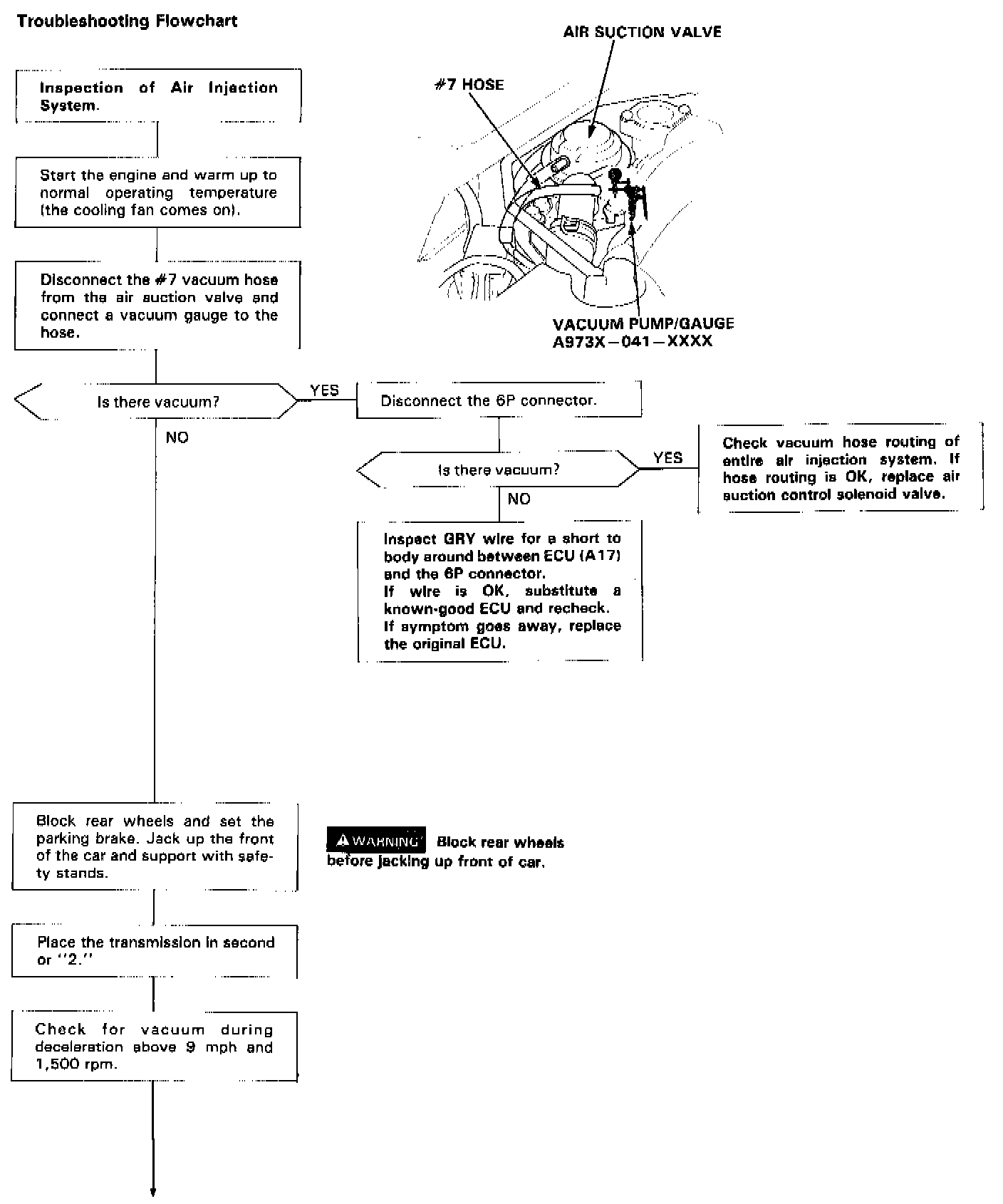

Troubleshooting Flowchart - Air Injection System
Troubleshooting Flowchart - Air Injection System
Troubleshooting Flowchart - Air Injection System
