Refrigerant Pressure Sensor / Switch: Specifications
Pressure Sensor

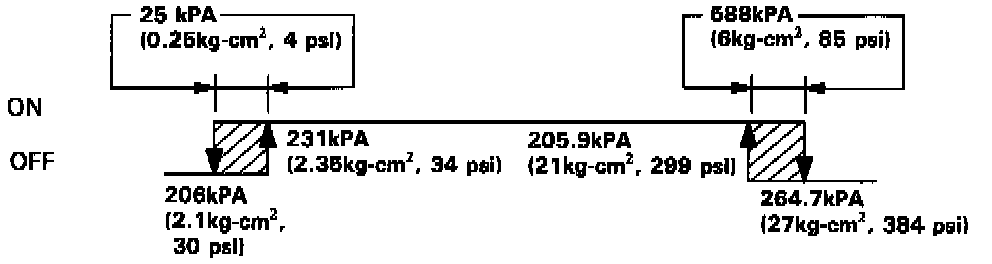

Hi-Low Pressure Switch Operating Ranges:

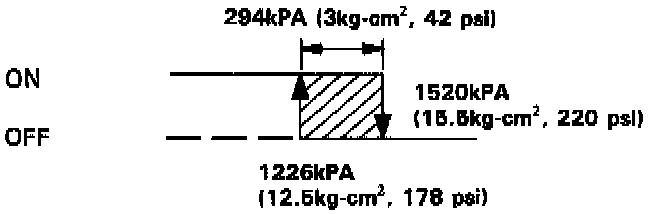

Middle Pressure Switch Operating Range:
