Fresh Air/Recirculation Control Box

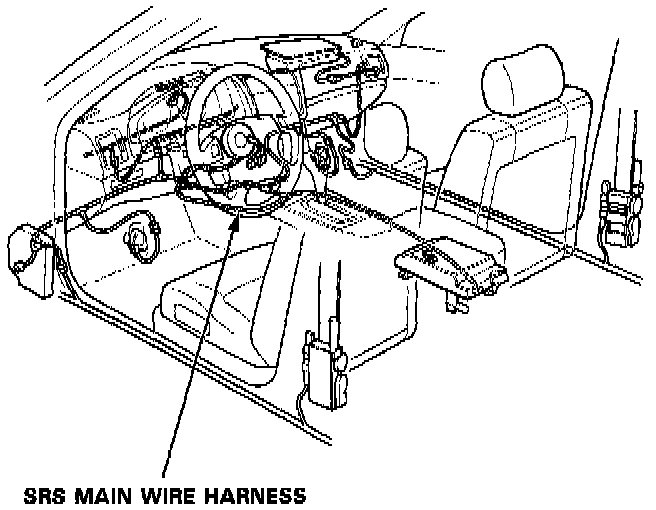

SRS wire harness is routed near the heater.

WARNING: All SRS wire harnesses and connectors are colored yellow. Do not use electrical test equipment on these circuits.

CAUTION: Be careful not to damage the SRS wire harnesses when servicing the heater.

BLOWER UNIT REMOVAL

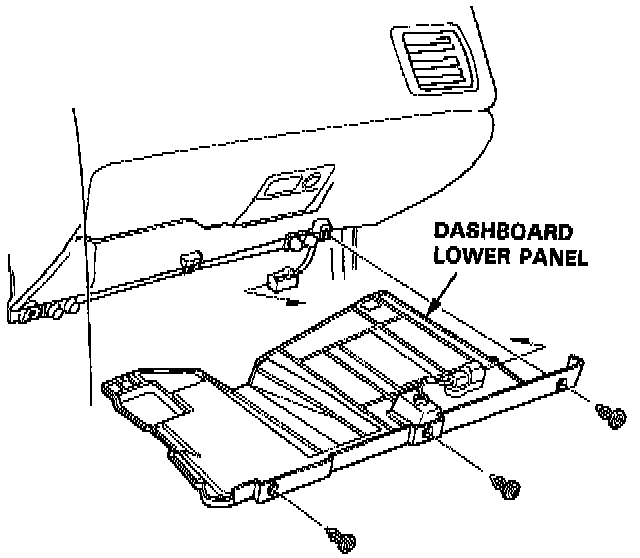

1. Remove the dashboard lower panel and disconnect the connector from it.

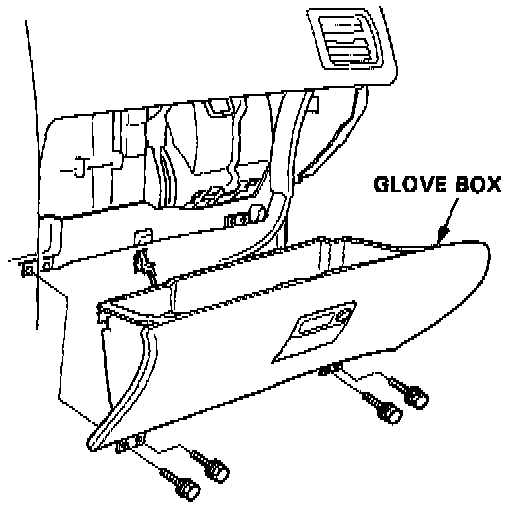

2. Disconnect the glove box light connector and glove box mounting bolts, then remove the glove box.

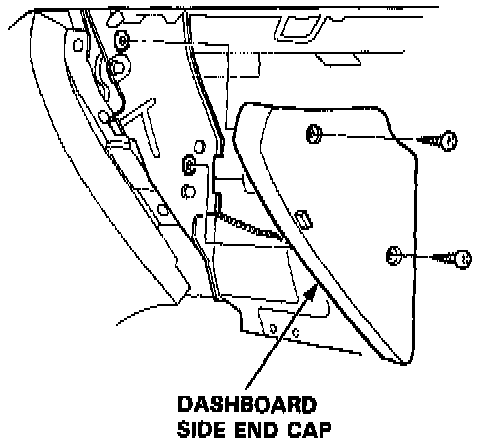

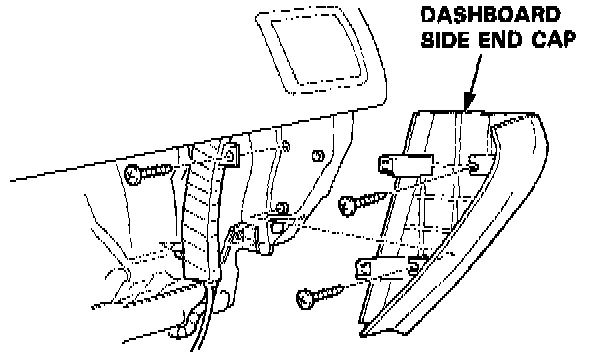

3. Remove both dashboard right end cap and the left side panel in the glove box opeing.

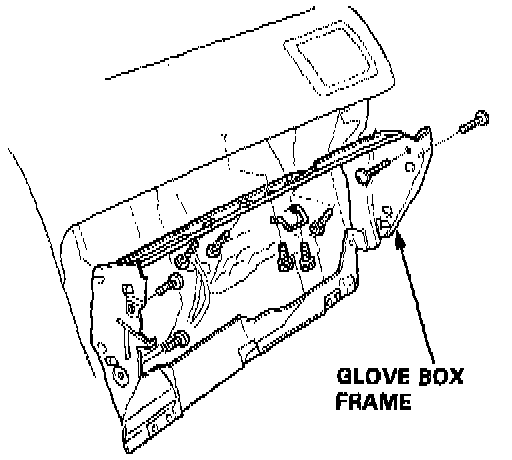

4. Remove the glove box frame mounting bolts and nuts, then remove the glove box frame.

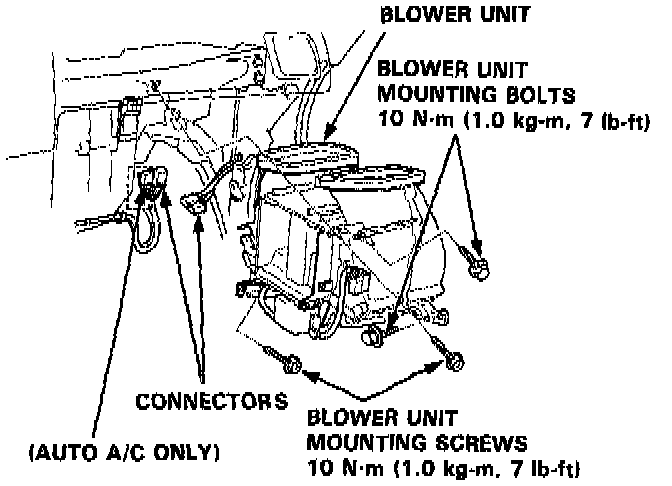

5. Disconnect the connectors as shown.
6. Remove the blower mounting bolts and screws, then remove the blower.
7. Install the blower in the reverse order of removal, then make sure it runs and doesn't leak any air.

BLOWER UNIT OVERHAUL





Refer to image for disassembly of blower unit, and replacement of blower motor.
