Diagnostic Flowchart
Diagnostic Flowchart

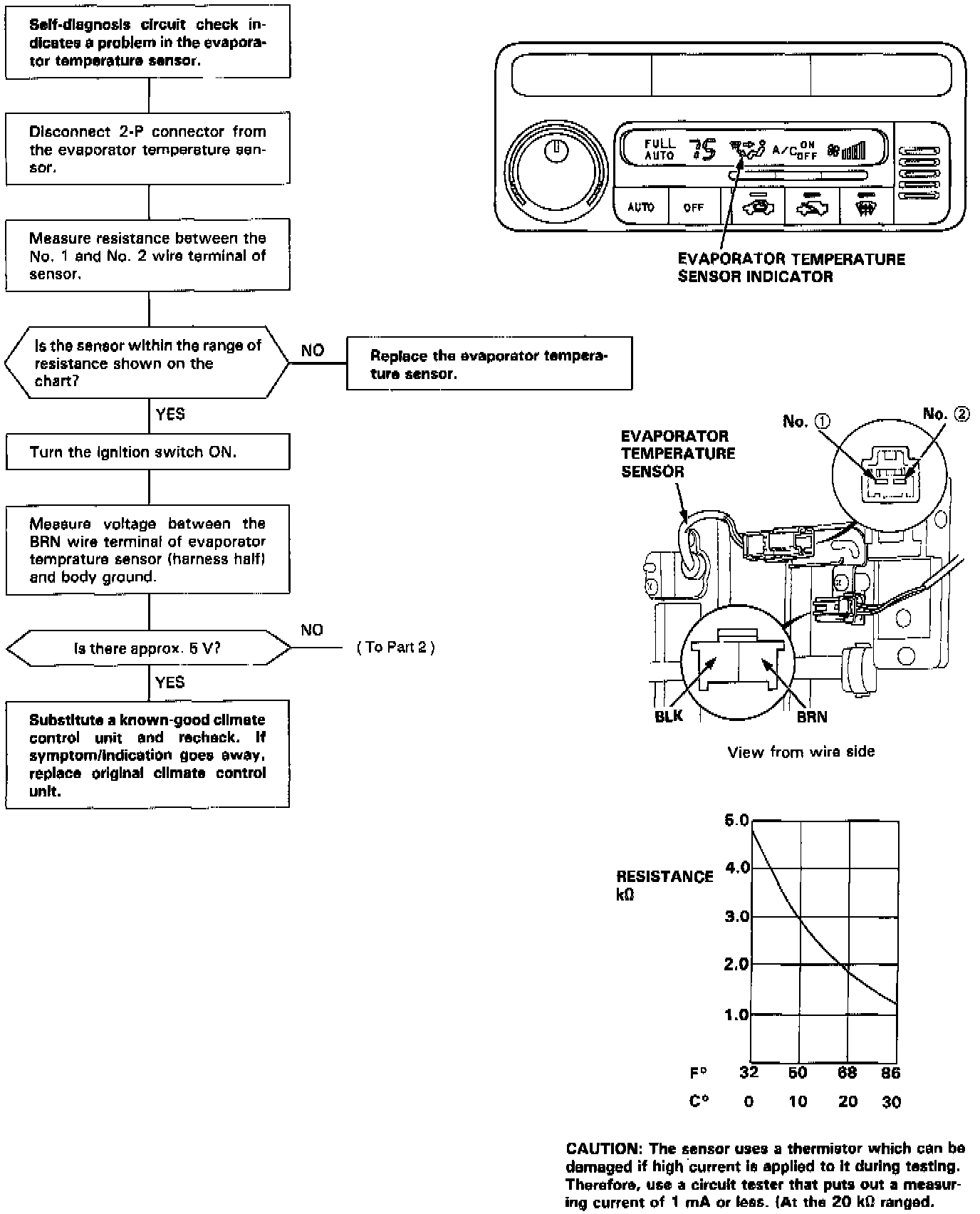

Evaporator Temperature Sensor, Part 1 Of 2:

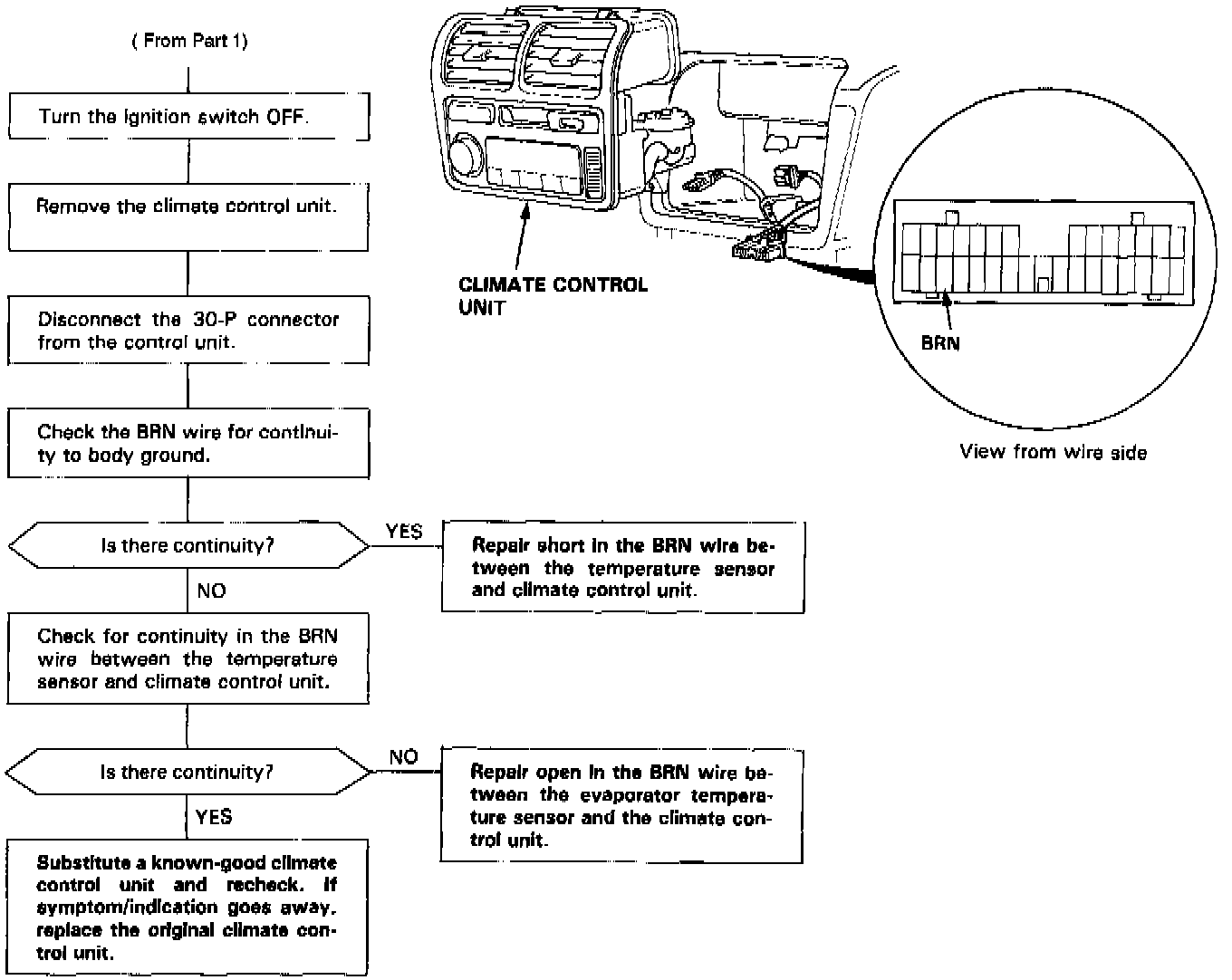

Evaporator Temperature Sensor, Part 2 Of 2:
