Component Test

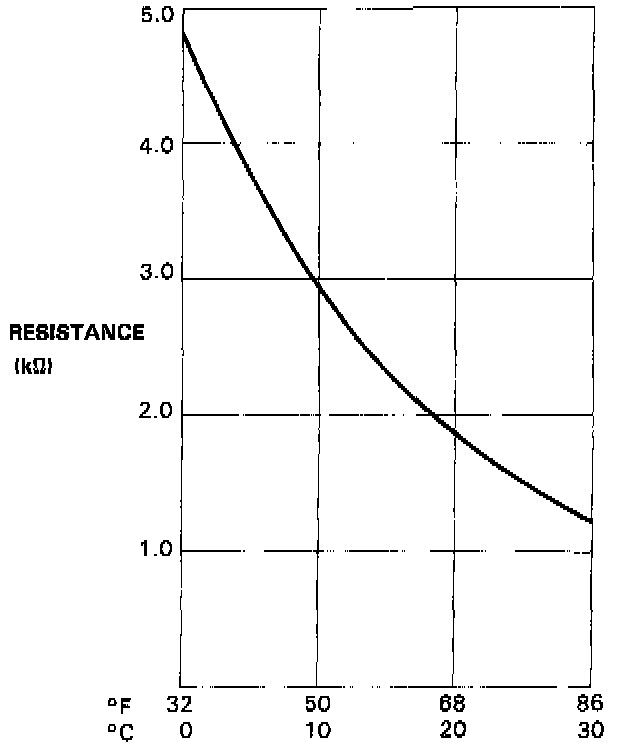

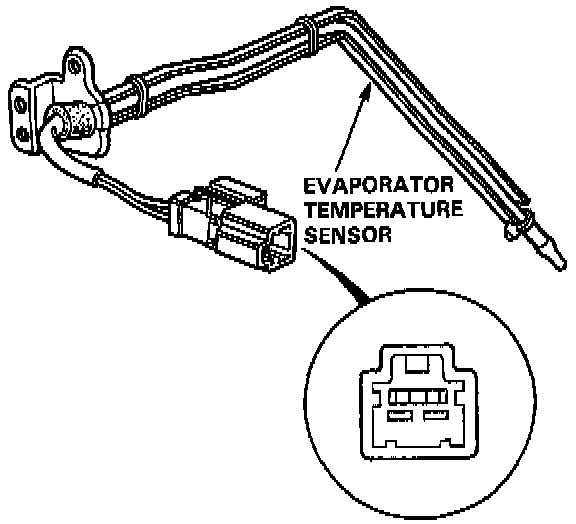

Compare the resistance reading between terminals of the evaporator temperature sensor with the specification shown in the graph: It should be within specification.





CAUTION: The sensor uses a thermistor which can be damaged if high current is applied to it during testing. Therefore, use a circuit tester that puts out a measuring current of 1 mA or less. (At the 20 k Ohm range)
