Manual Climate Control

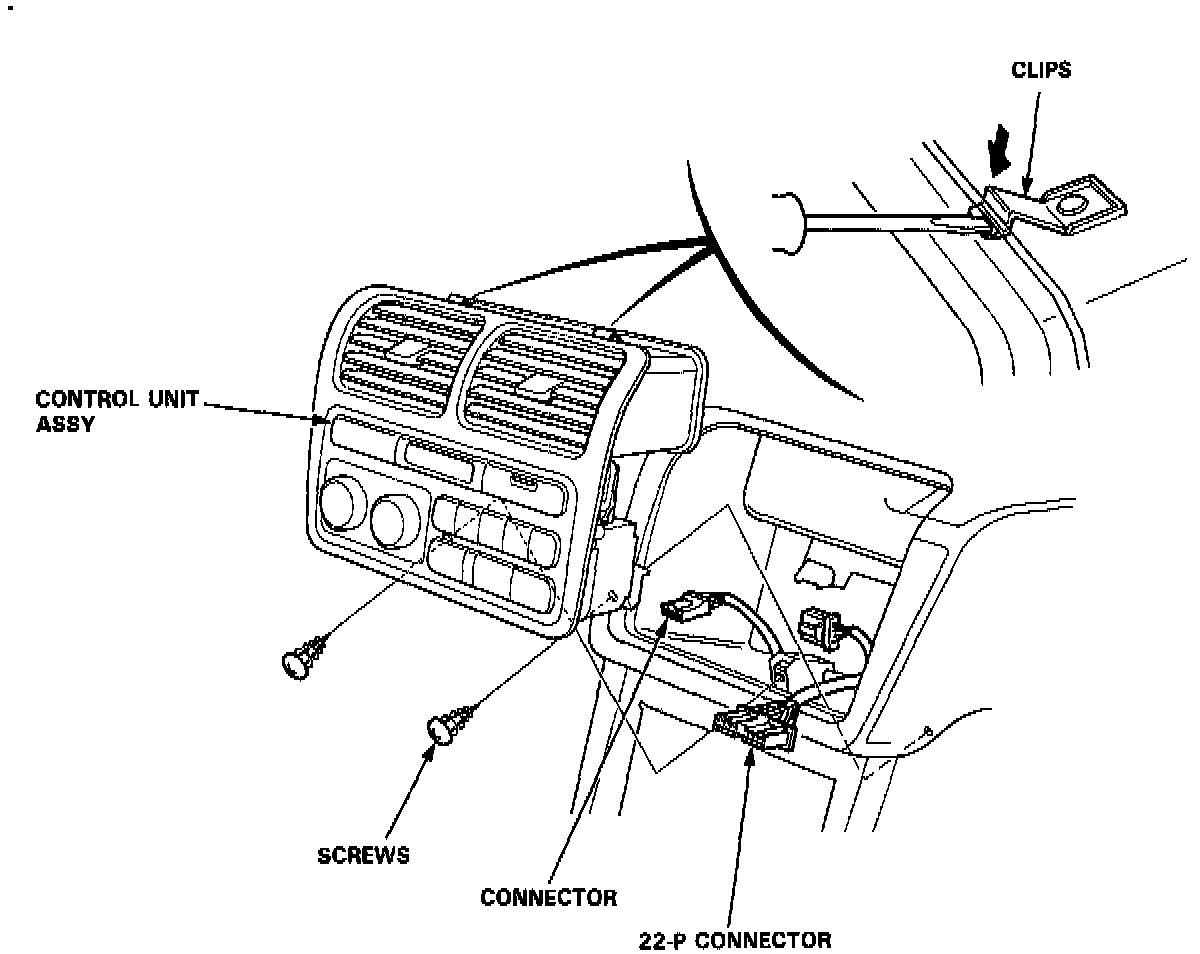

1. Remove the radio/cassette unit.
2. Remove the screws then disconnect the control unit connectors.
3. Remove the control unit assembly by pushing the clips down as shown.

CAUTION: Be careful not to damage the center console panel and the dashboard.
