Blower Motor Does Not Run at All

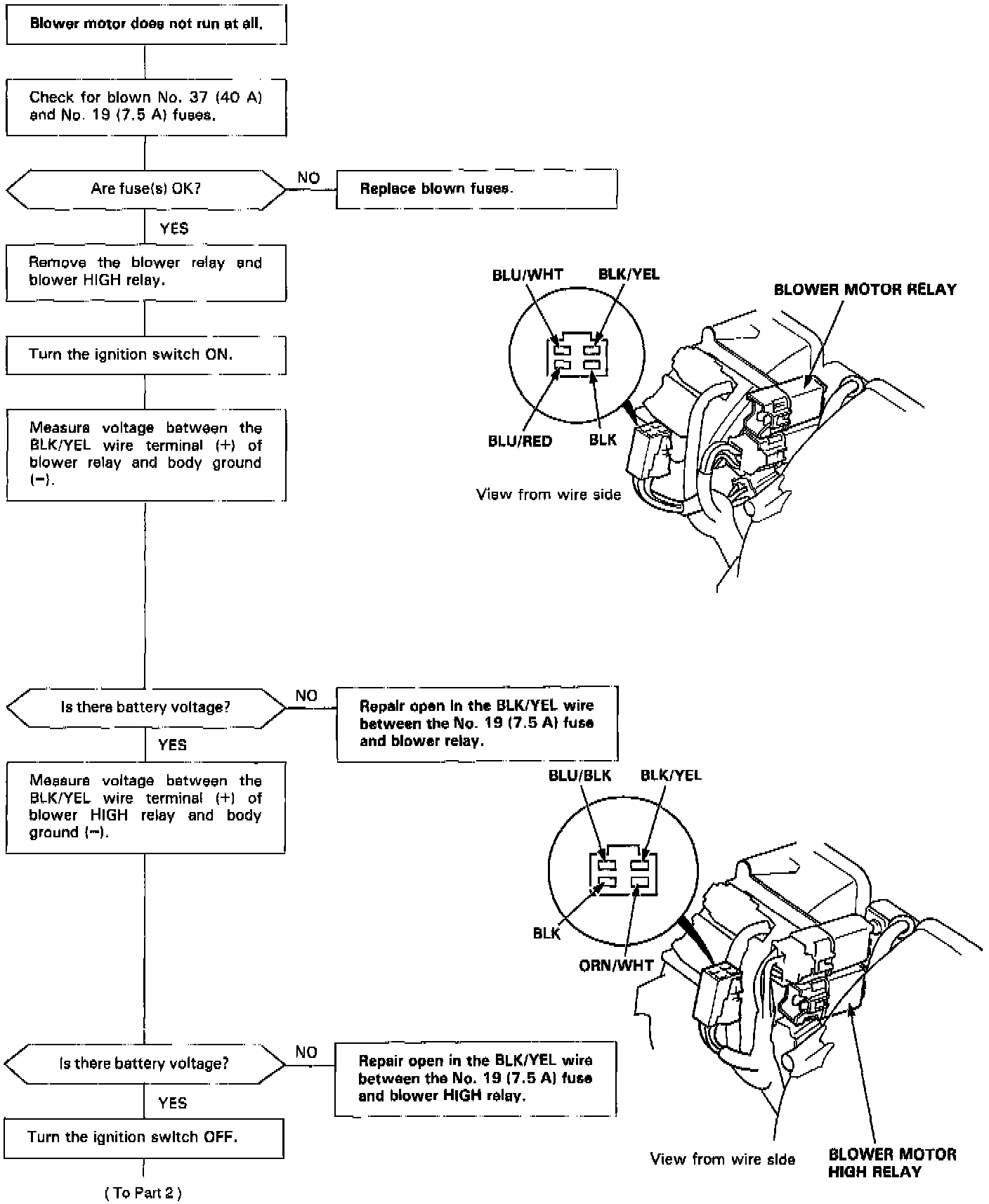

Blower Motor, Part 1 Of 4:

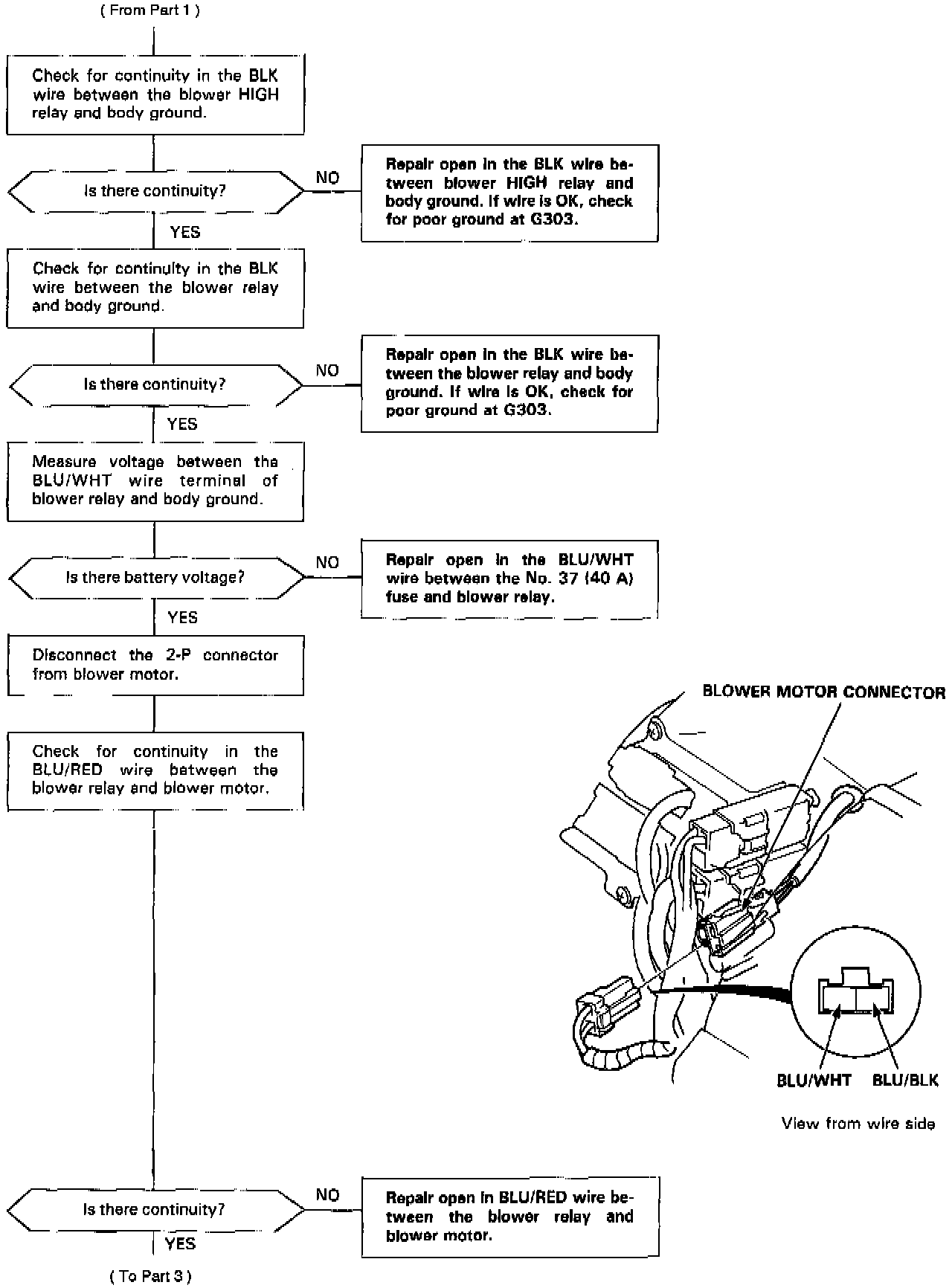

Blower Motor, Part 2 Of 4:

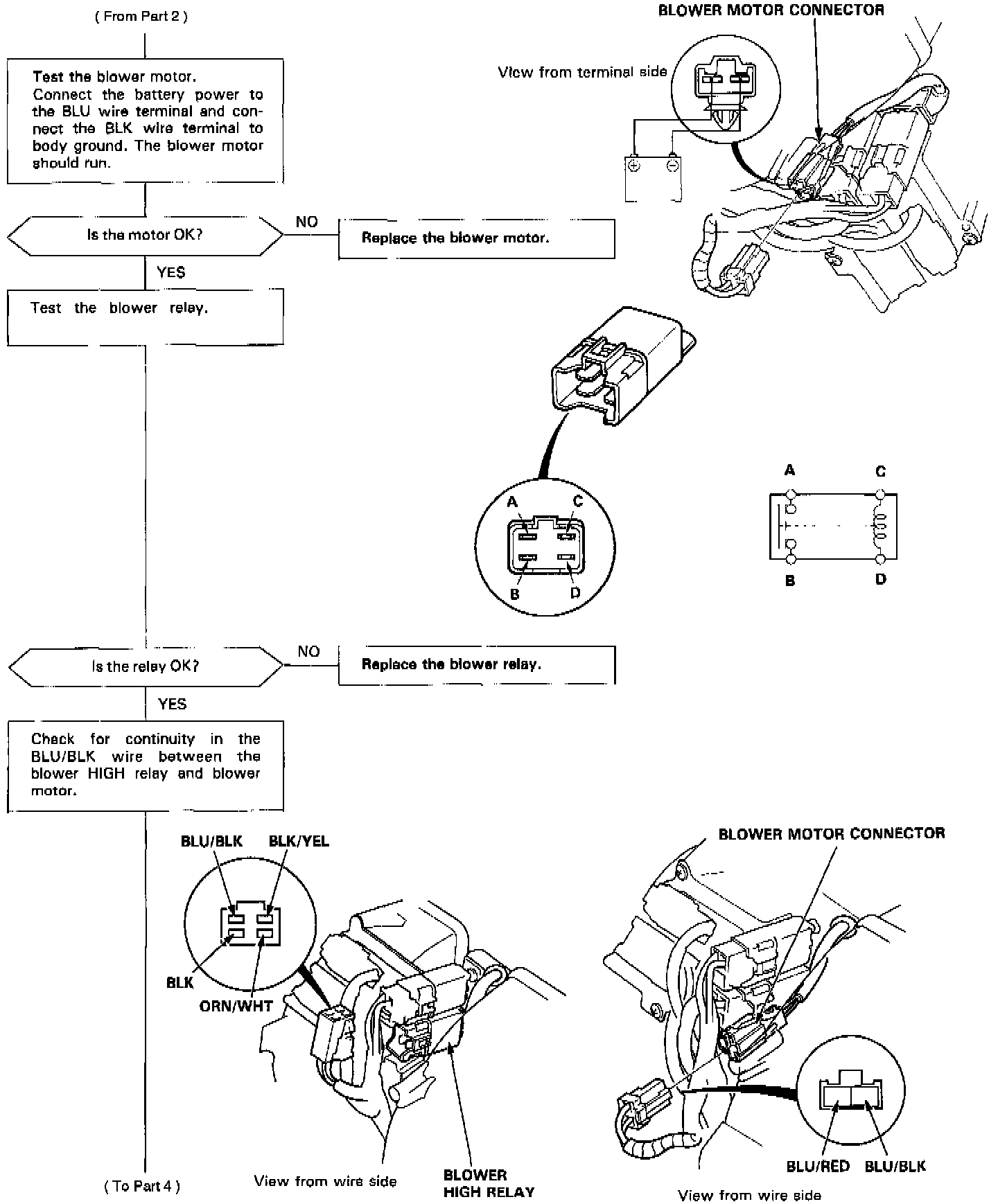

Blower Motor, Part 3 Of 4:

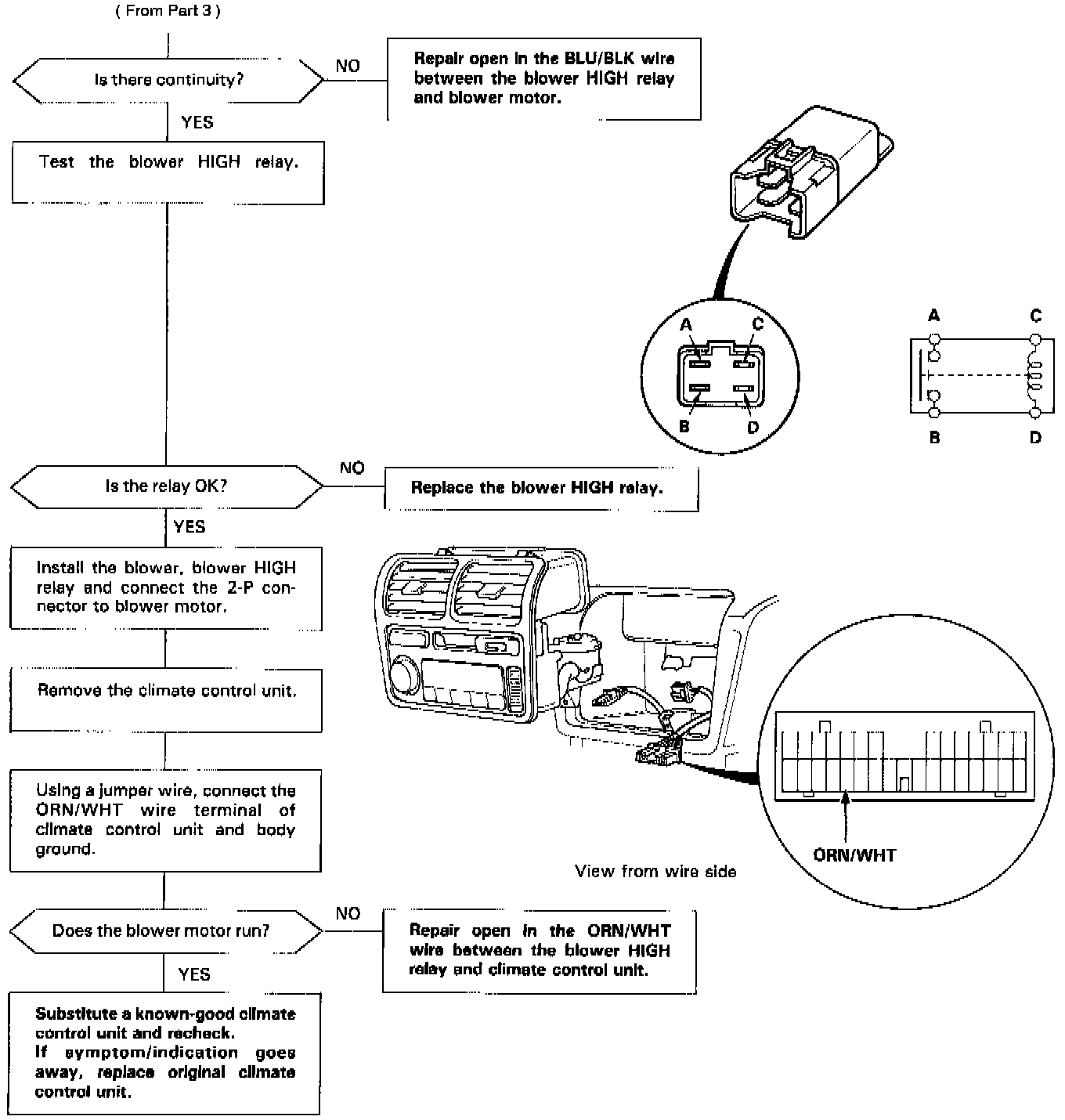

Blower Motor, Part 4 Of 4:
