Power Distribution

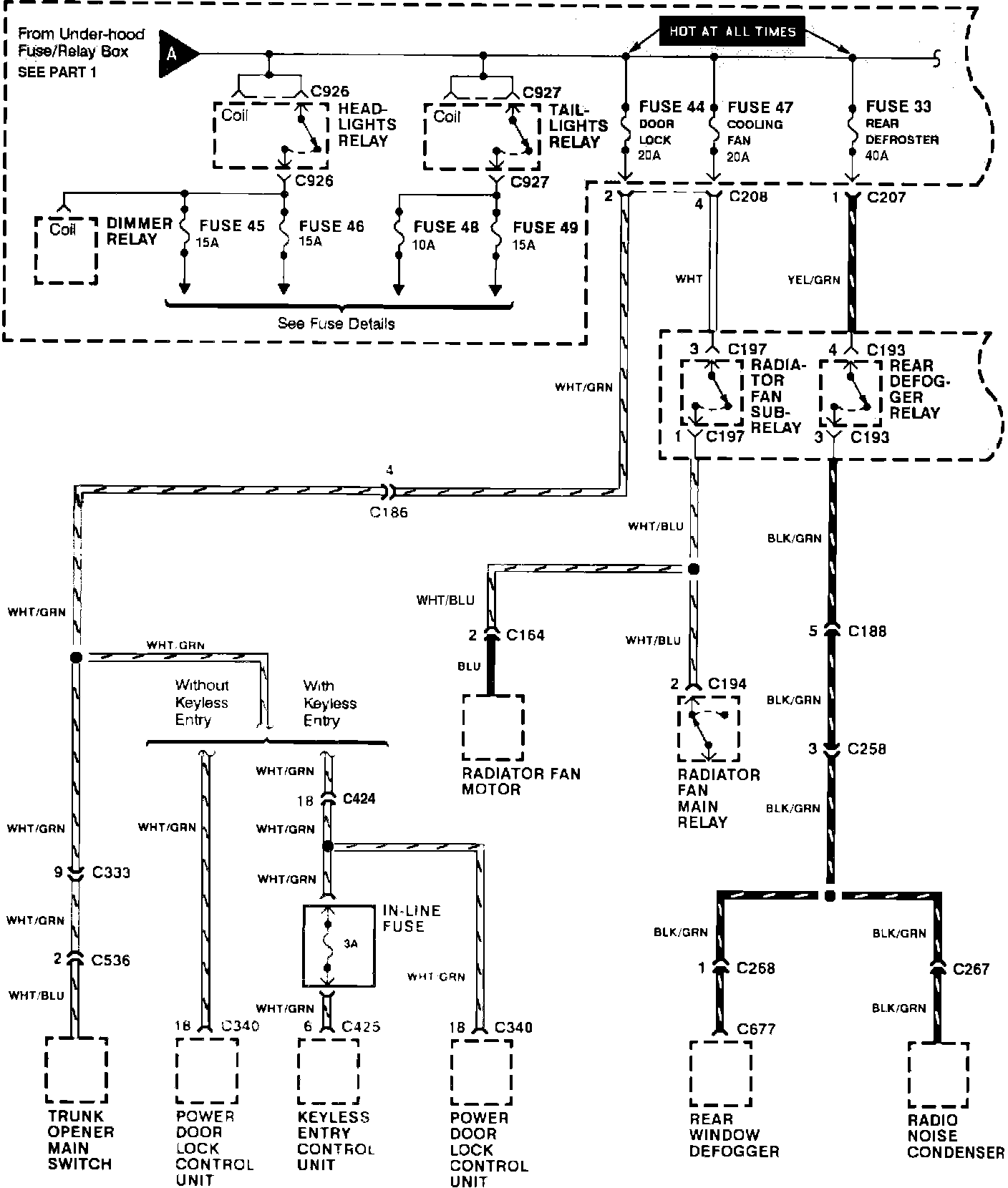

Power Distribution: Under-Hood Fuse/Relay Box:

Power Distribution: Under-Hood Fuse/Relay Box And Ignition Switch:

Engine Management: Grounds And Power:

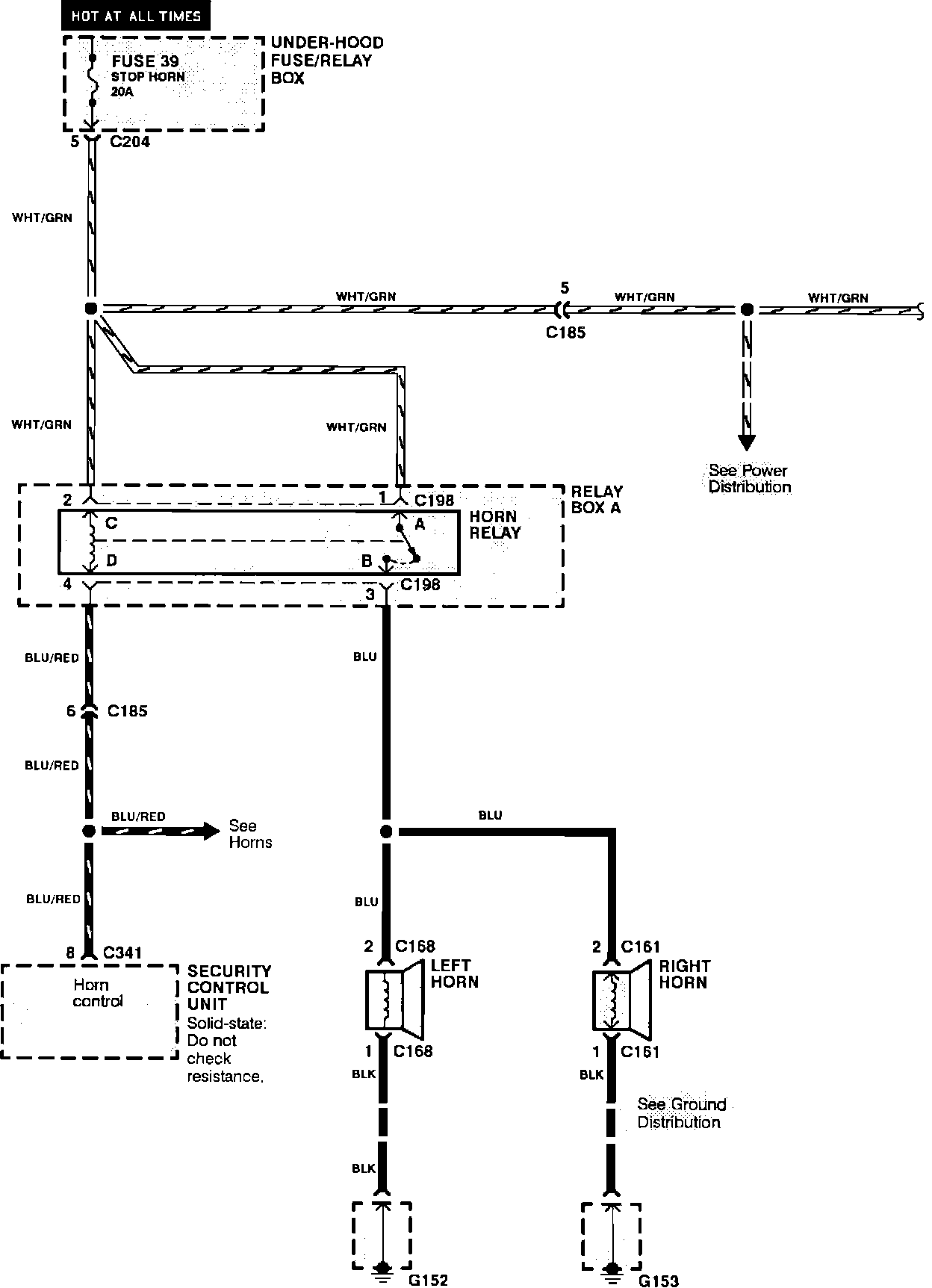

Security System: Horns:

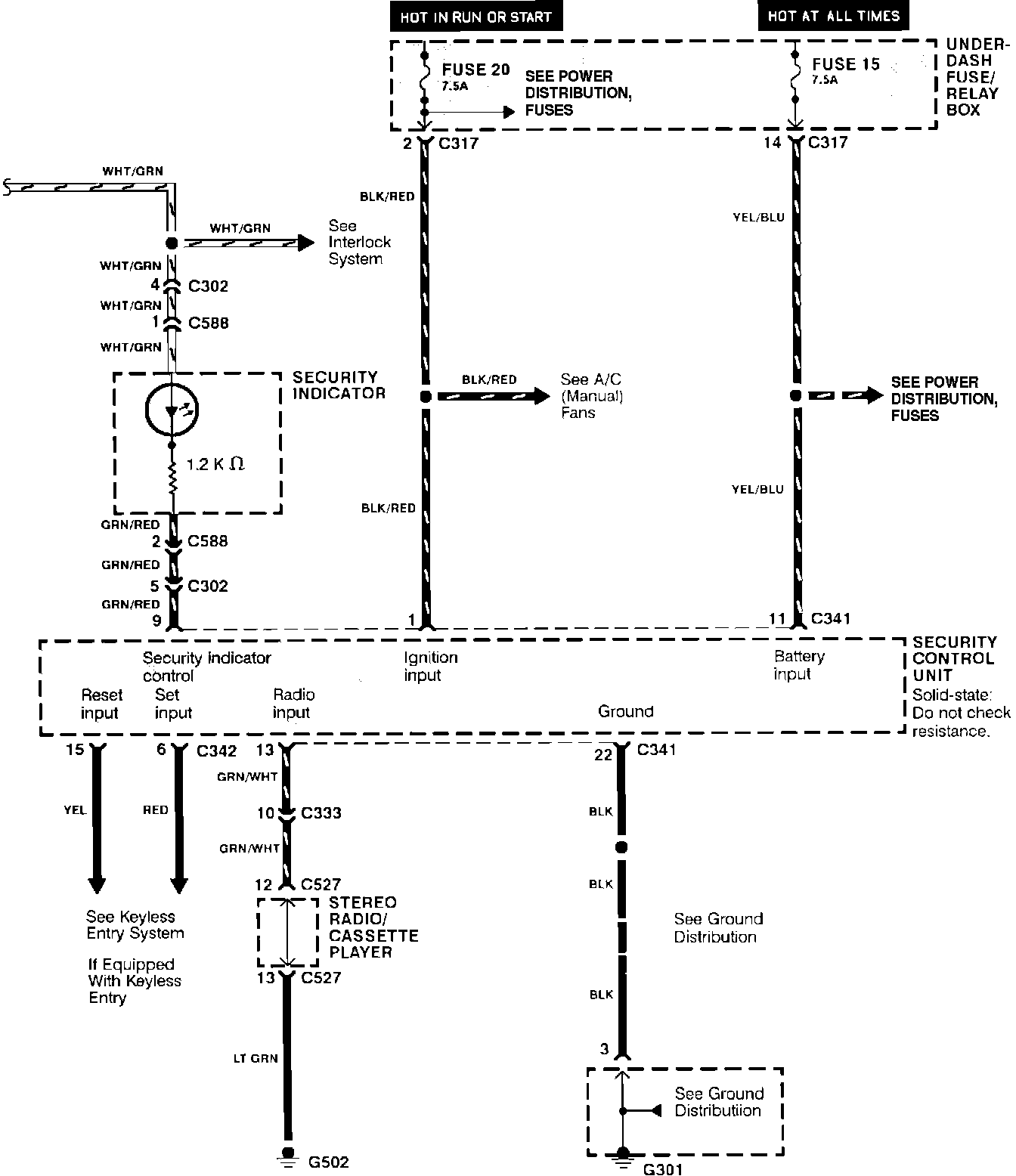

Security System: Power, Grounds, Indicator, Radio Input:

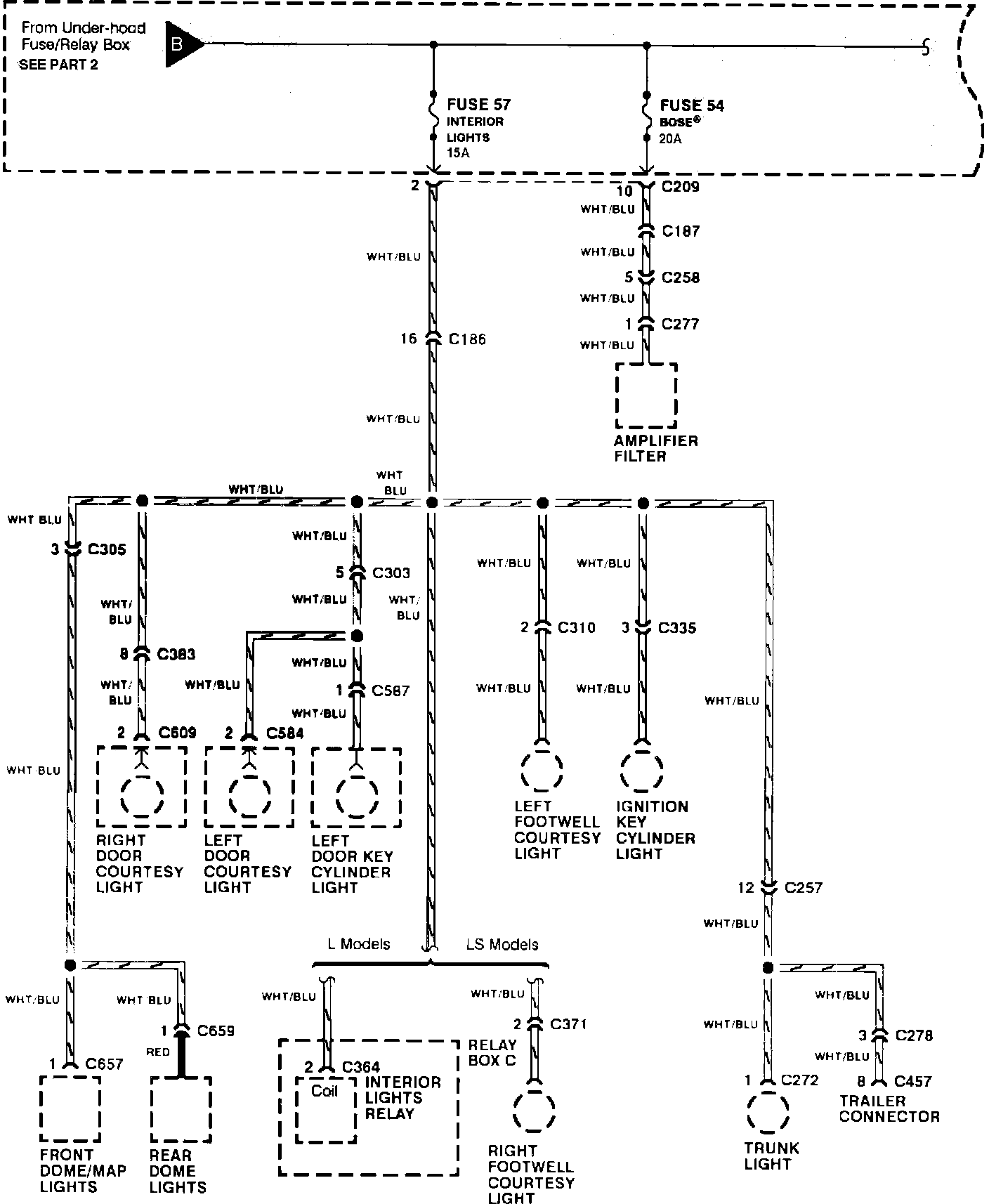

Power Distribution: Under-Hood Fuse/Relay Box:

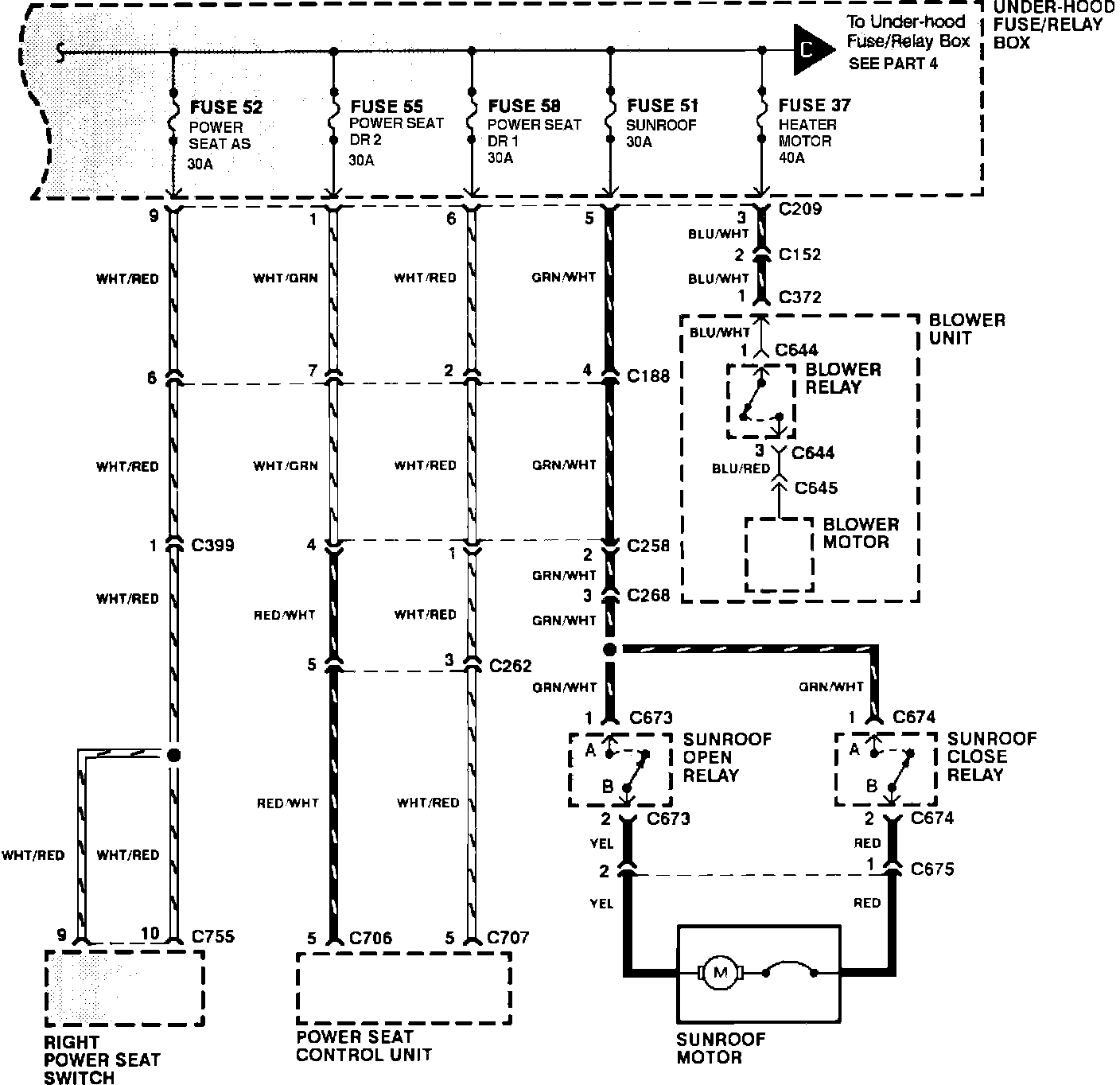

Power Distribution: Under-Hood Fuse/Relay Box:

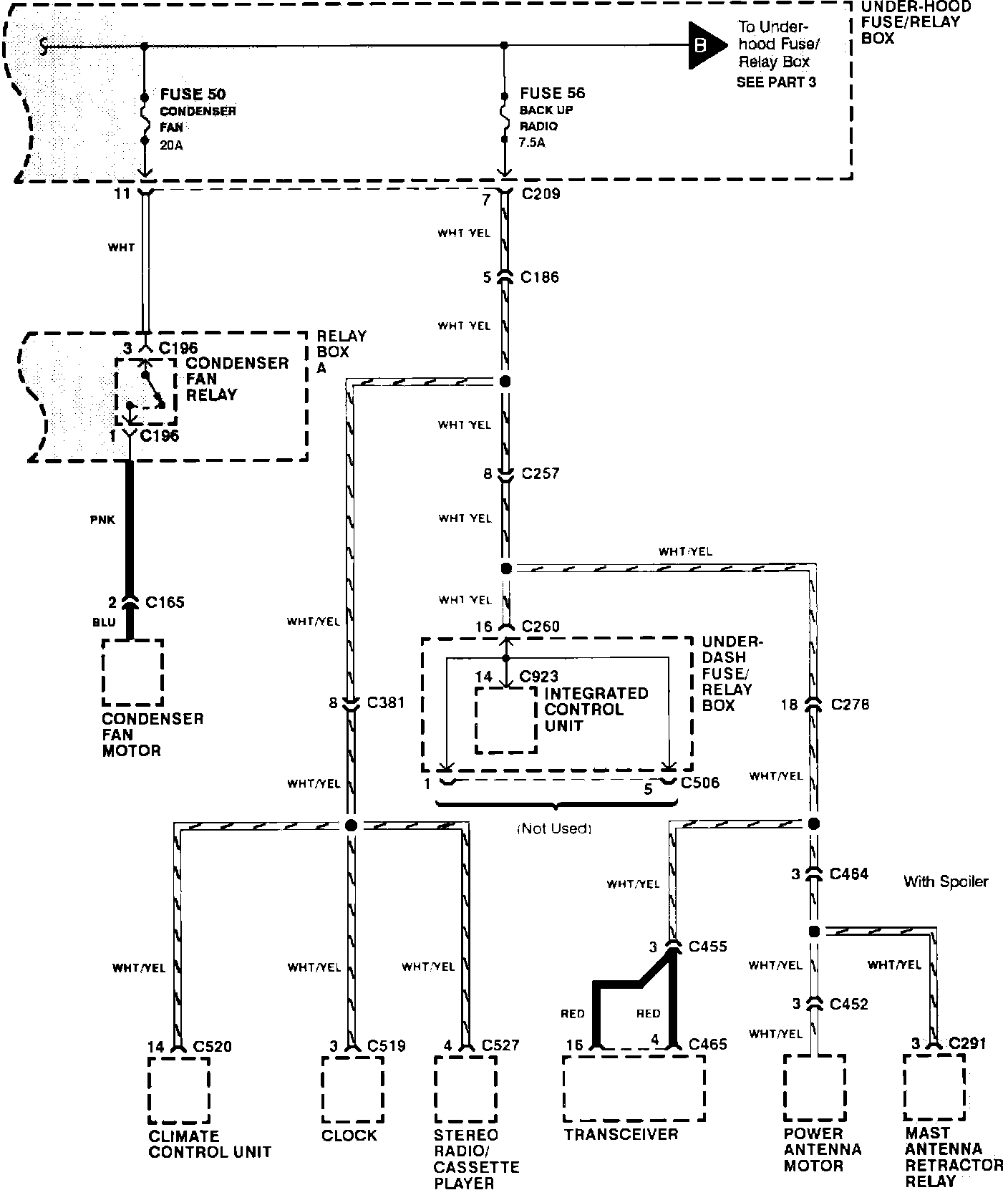

Power Distribution: Under-Hood Fuse/Relay Box:

Power Distribution: Under-Hood Fuse/Relay Box:
