System Diagram

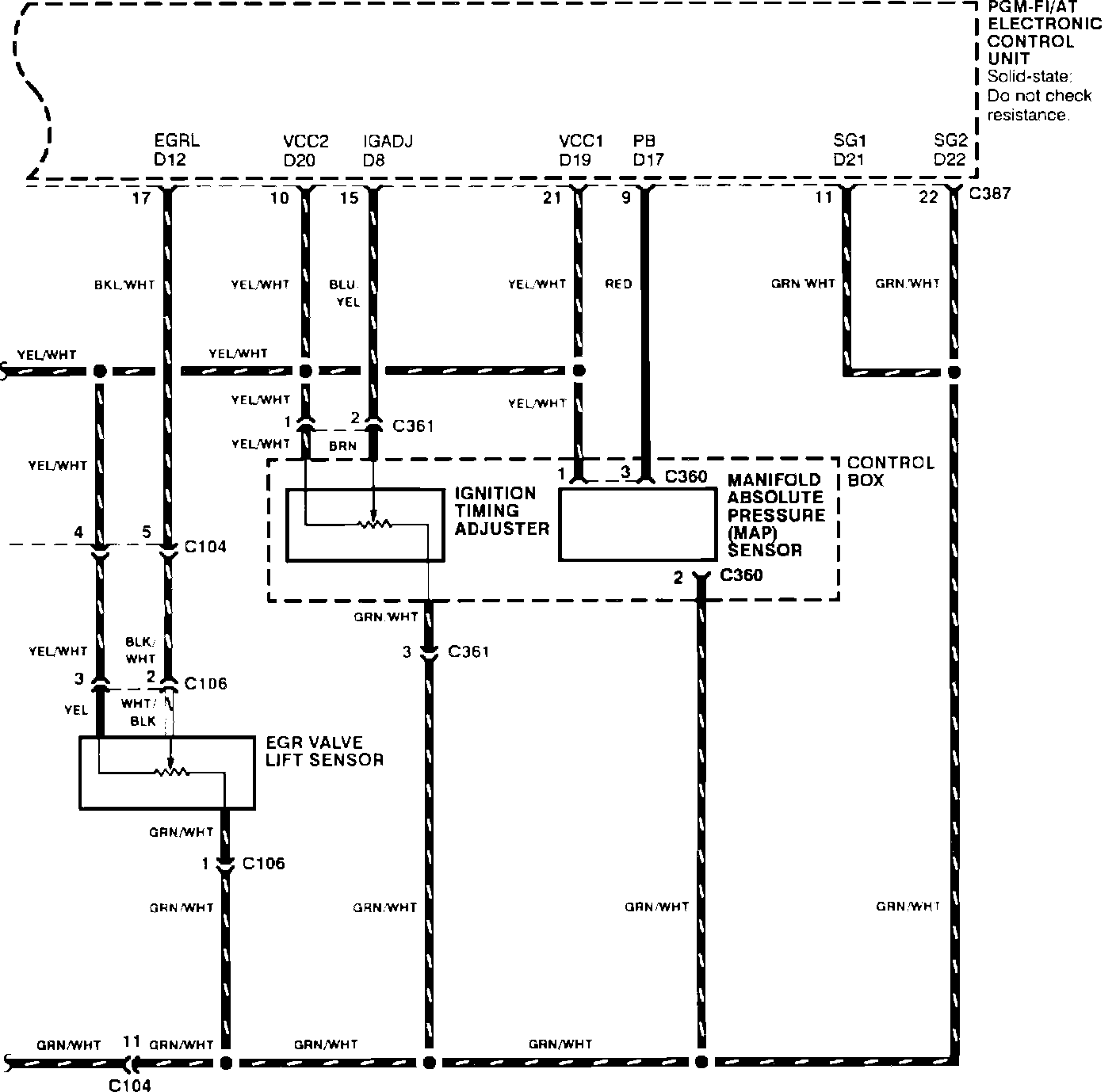

Engine Management: Engine, Vehicle Data Sensors:

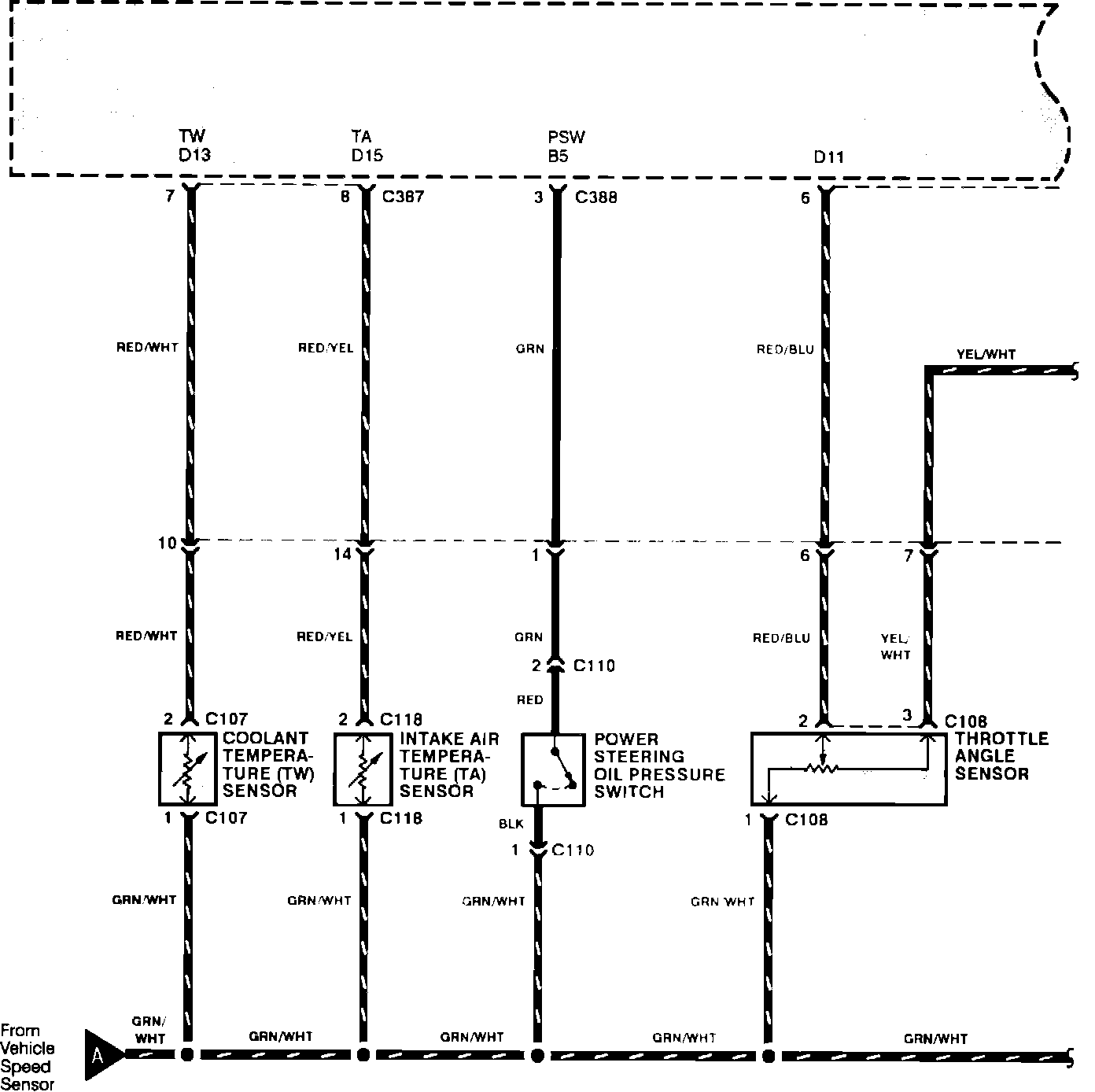

Engine Management: Engine, Vehicle Data Sensors:
