PSP Switch Signal Circuit Troubleshooting
PSP Switch Signal Circuit Troubleshooting

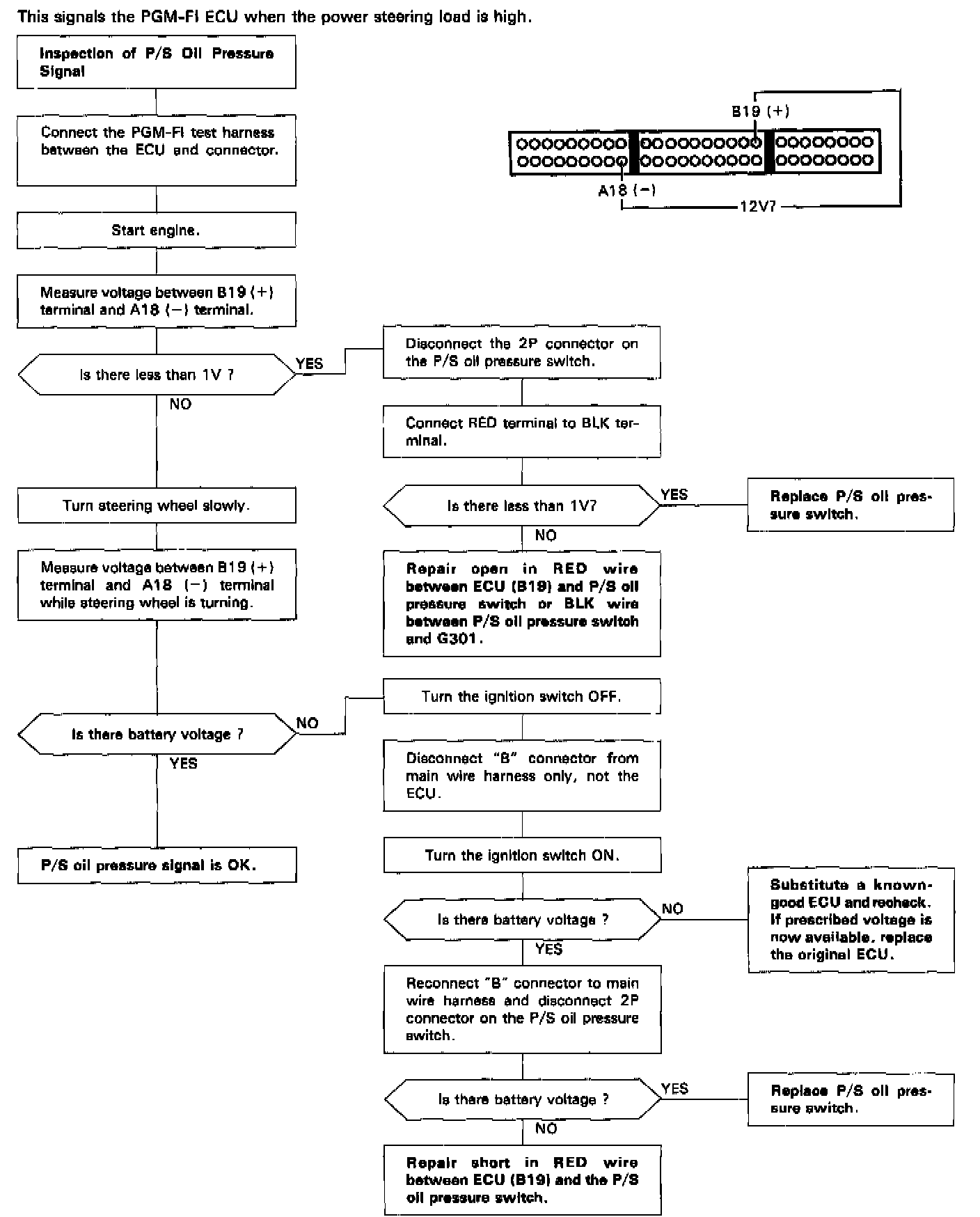

P/S OIL PRESSURE SIGNAL FLOW CHART
