Automatic Transaxle (A/T) Gear Position Signal
>>

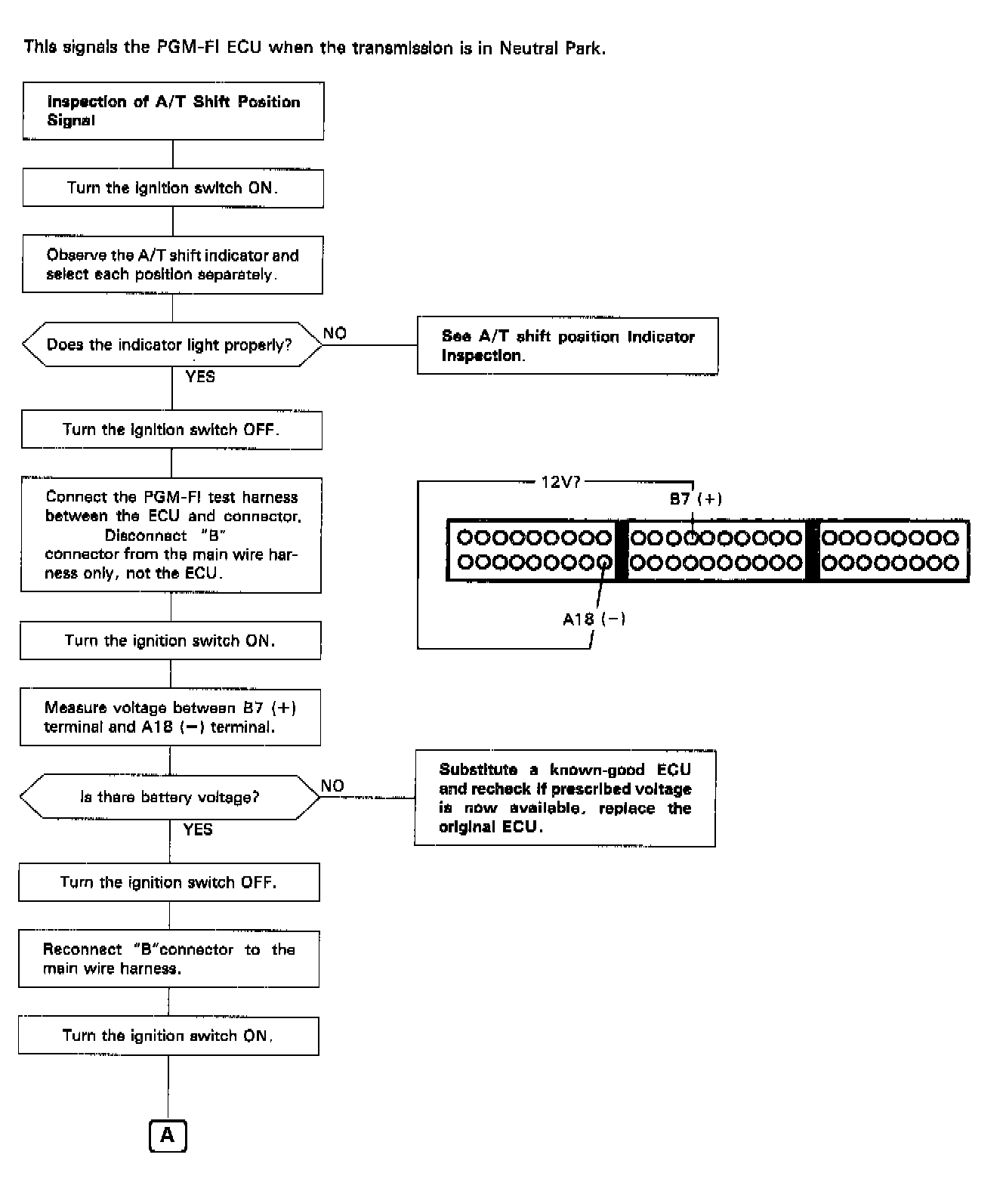

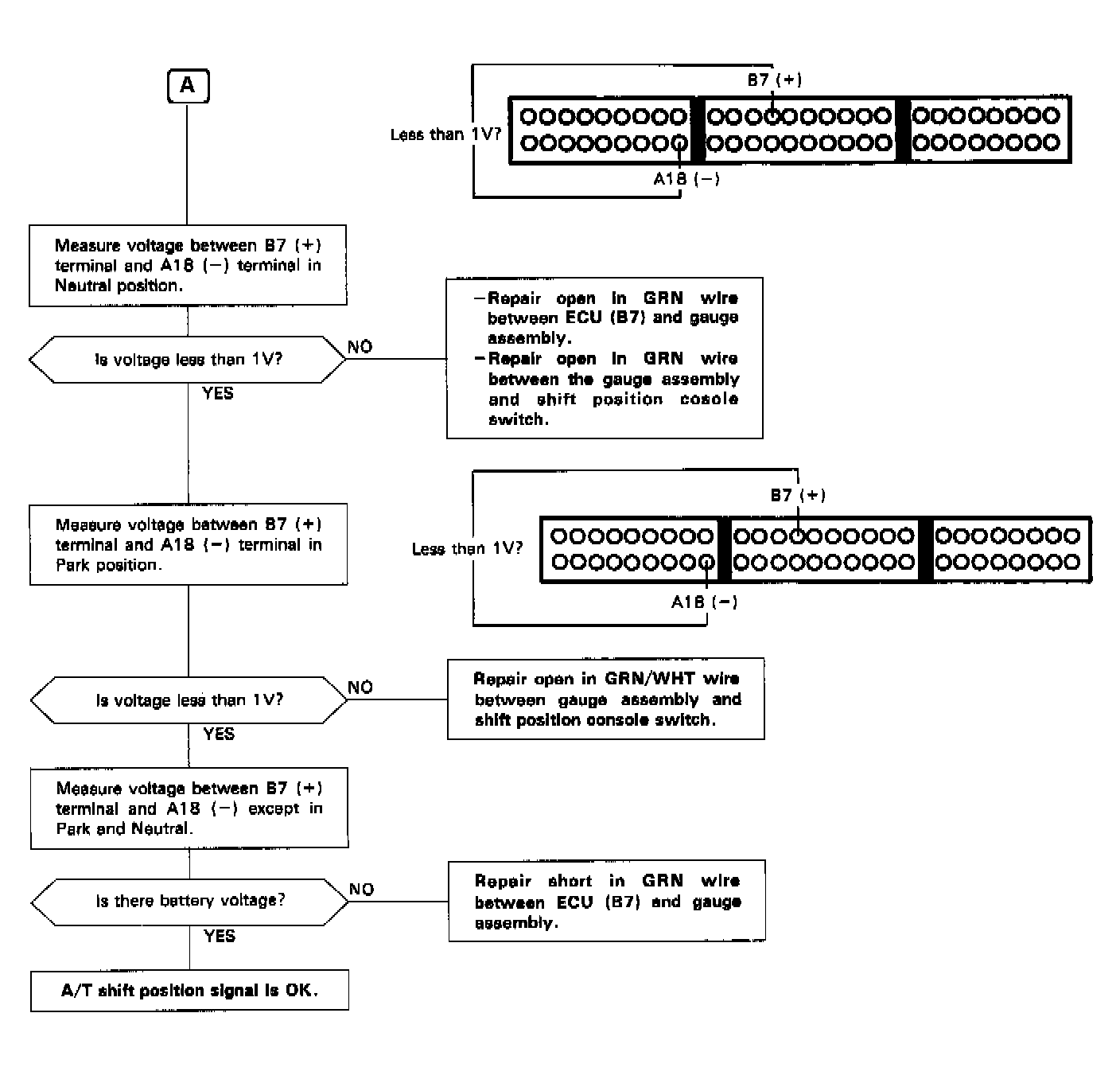

Troubleshooting Flowchart
Troubleshooting Flowchart
A/T SHIFT POSITION SIGNAL FLOW CHART
