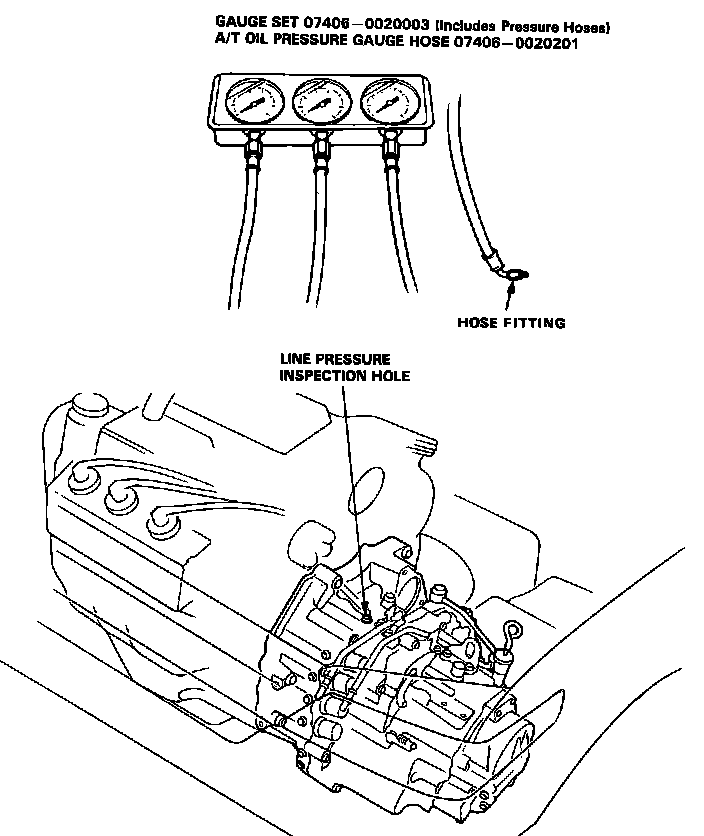

Pressure Testing

CAUTION: Before testing, be sure transmission is filled to proper level.

NOTE:
- Stop engine when attaching hoses for pressure tests.
- Torque hose fitting to 18 Nm (1.8 kg-m, 12 lb ft).
- Do not reuse aluminum washers.

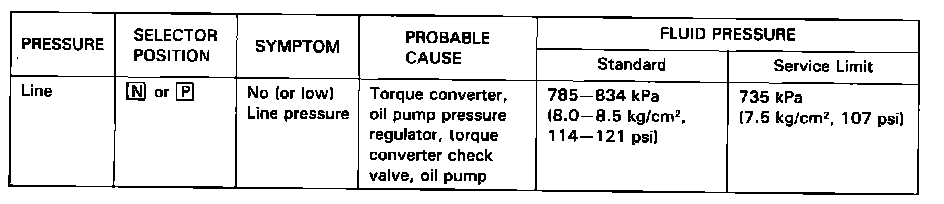

Line Pressure Measurement
- Set the parking brake securely.
- Run the engine at 2,000 rpm.

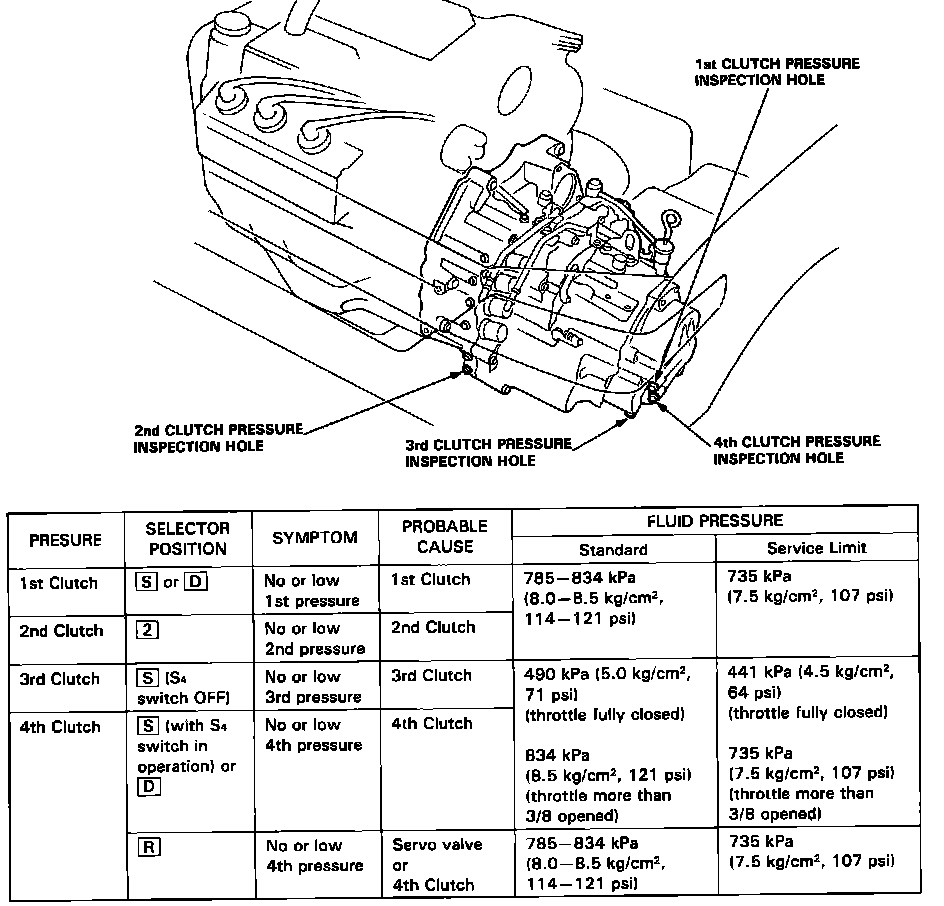

Clutch Pressure Measurement




- Set the parking brake securely and block the wheels.
- Jack up the front of the car and support it with a rigid rack.
- Run the engine at idle speed to check 1st clutch only. Test stall speed in D or S if the 1st clutch pressure is low.
- Run the engine at 2,000 rpm other clutches.
