Fan Timer Relay Test

FAN TIMER RELAY TEST


















There should be continuity between the A and B terminals when the battery is connected to the C and D terminals.
There should be no continuity when the battery is disconnected.

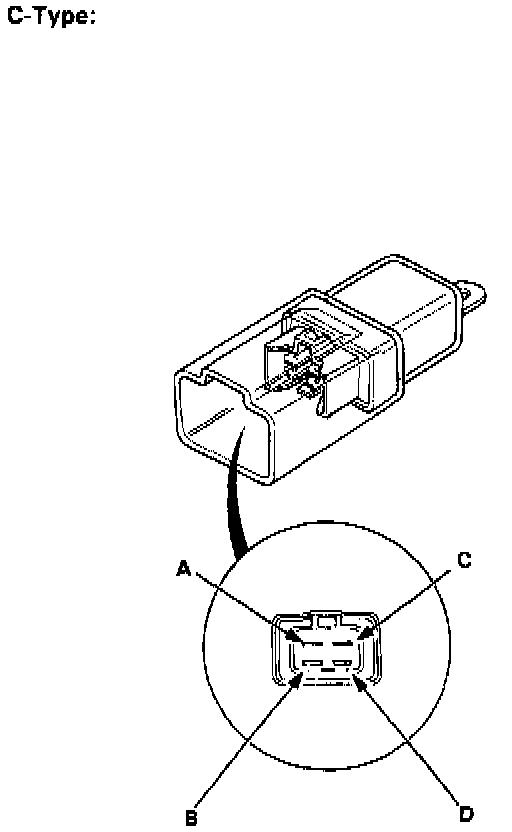

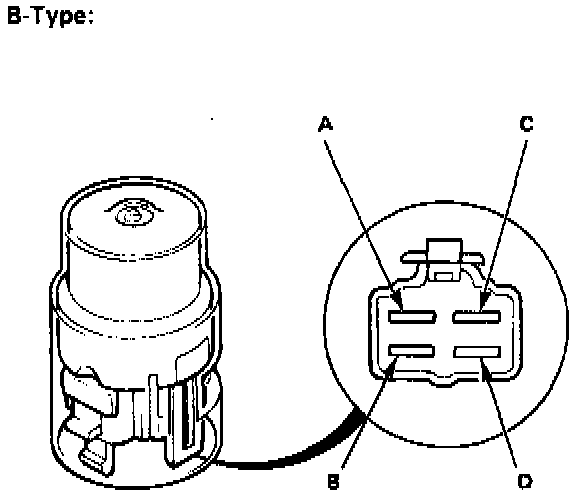

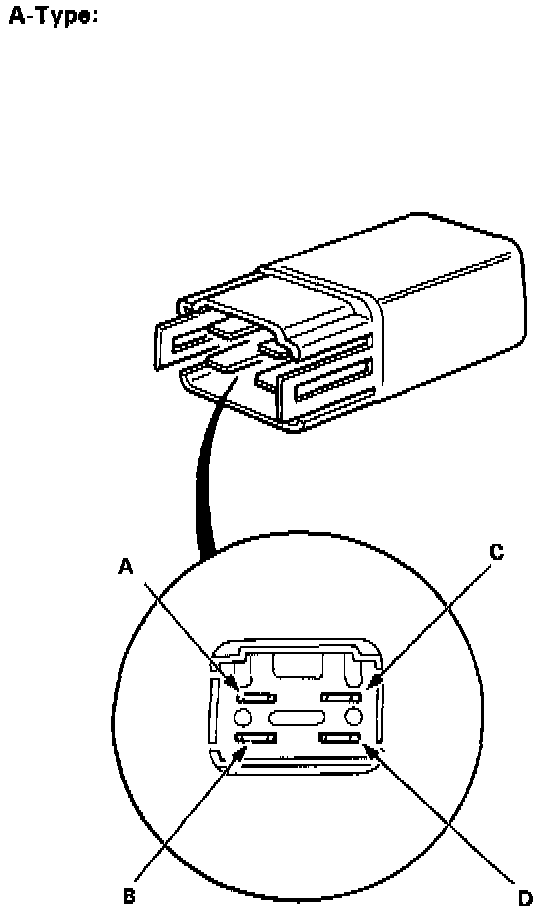

NOTE: Test procedure is the same for all relay types shown.
