Refrigerant Pressure Sensor / Switch: Testing and Inspection
Flow Chart "A" - A/C SystemNOTE: Use the digital multimeter (KA-AHM-003) to check.

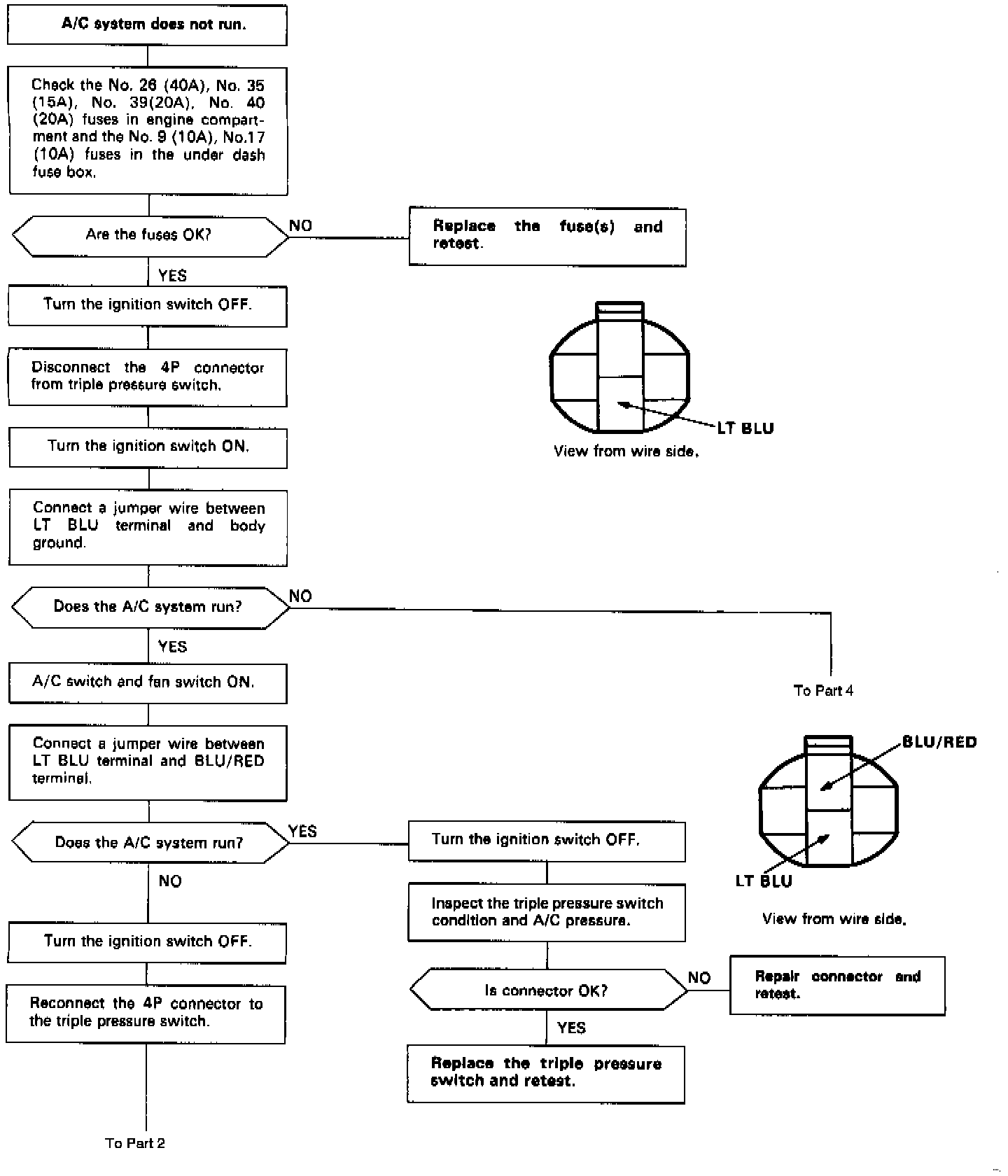

A/C System, Part 1 Of 4:

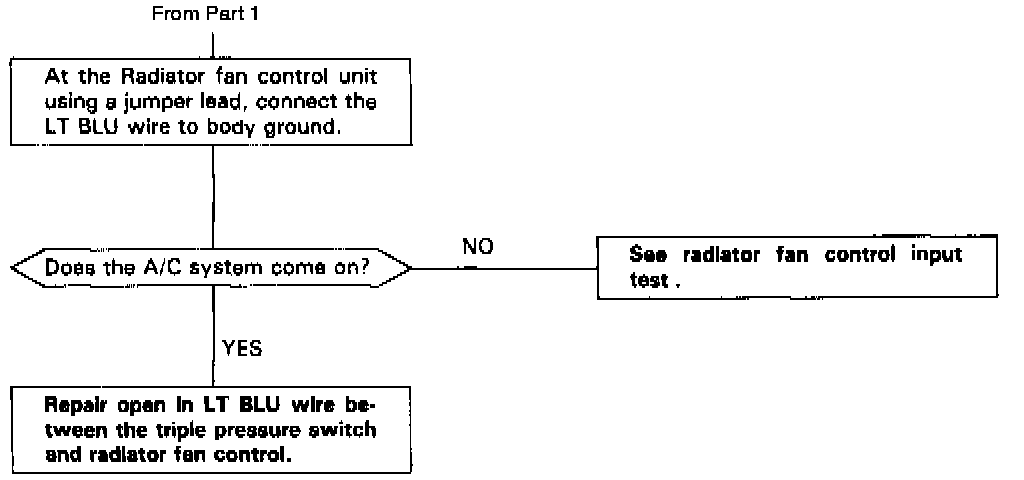

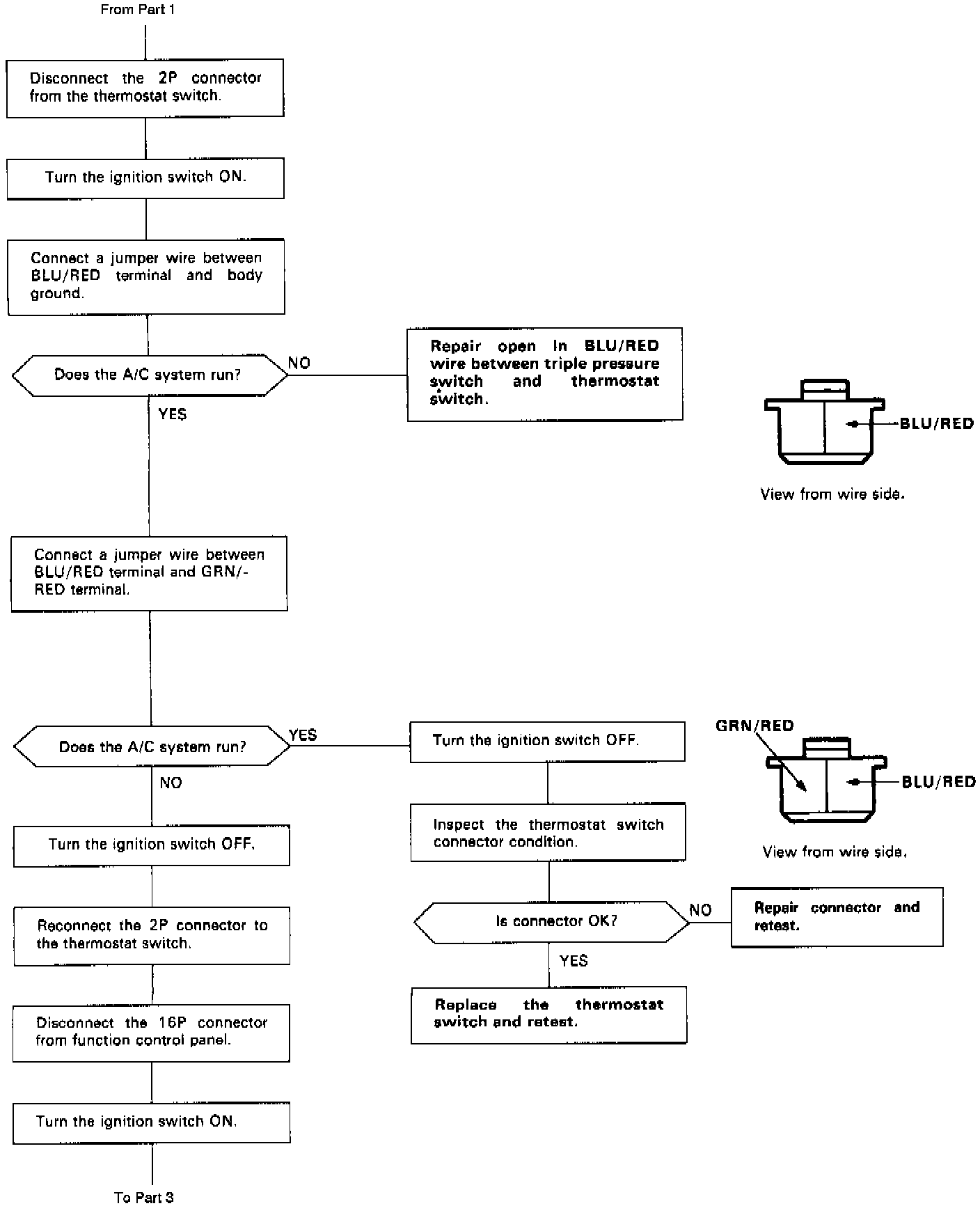

A/C System, Part 2 Of 4:

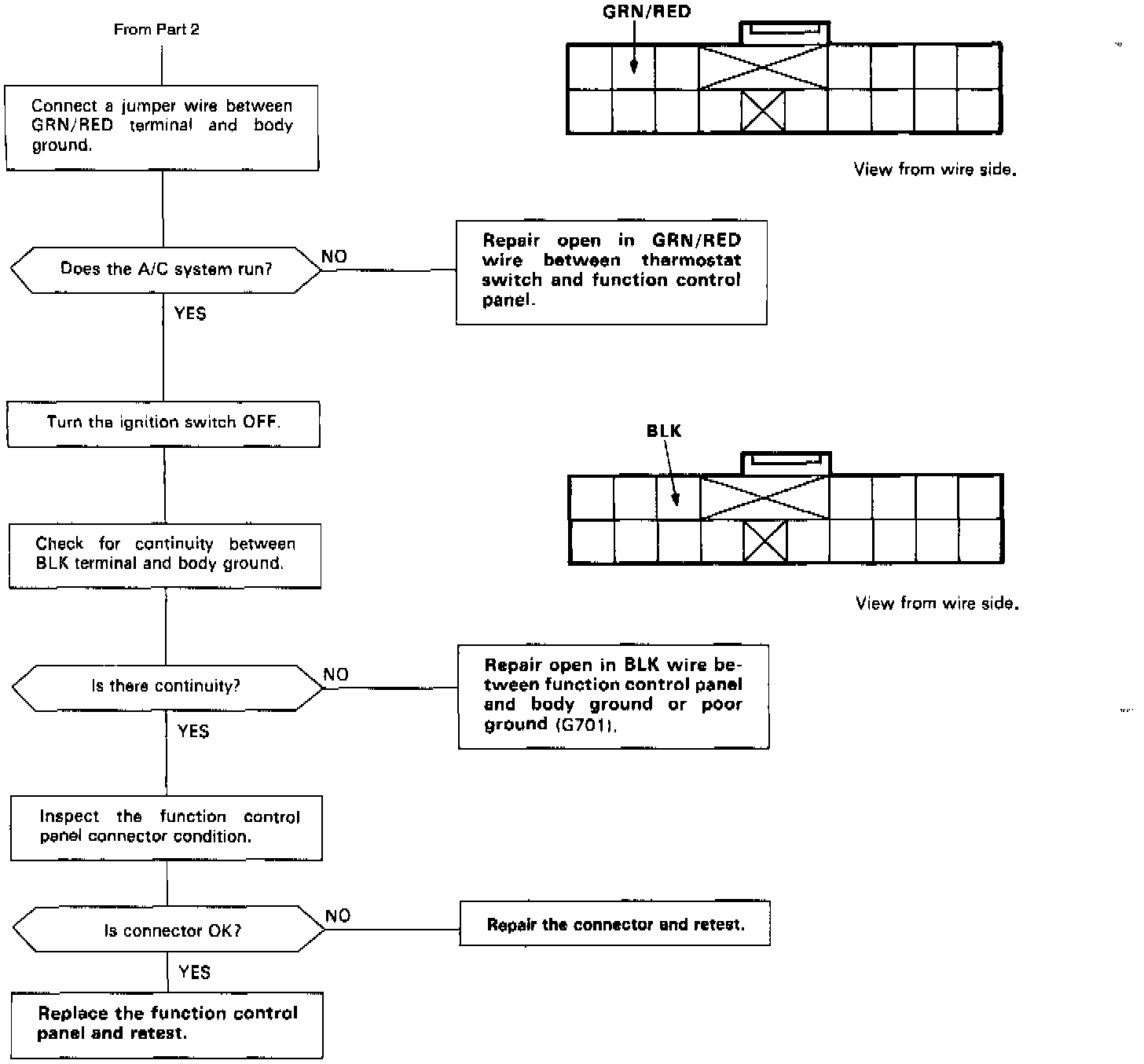

A/C System, Part 3 Of 4:
NOTE: Use the digital multimeter (KA-AHM-003) to check.
