Manual Climate Control

NOTE: SRS wire harness is routed near the console.

WARNING: All SRS wire harness and connectors are colored yellow. Do not use electrical test equipment on these circuit.

CAUTION: Be careful not to damage SRS wire harness when servicing the console.

FUNCTION CONTROL PANEL REMOVAL





1. Remove the screws, then remove the front console.
2. Remove the radio/cassette player.

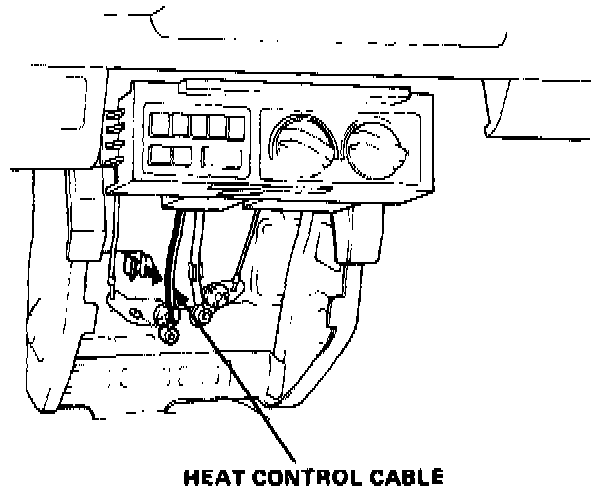

3. Remove the heat control cable from the heater.





4. Remove the screws (4).
5. Disconnect the connector and remove the function control panel.

6.5GInstall in the reverse order of removal and make sure the heat control cable is properly adjusted.

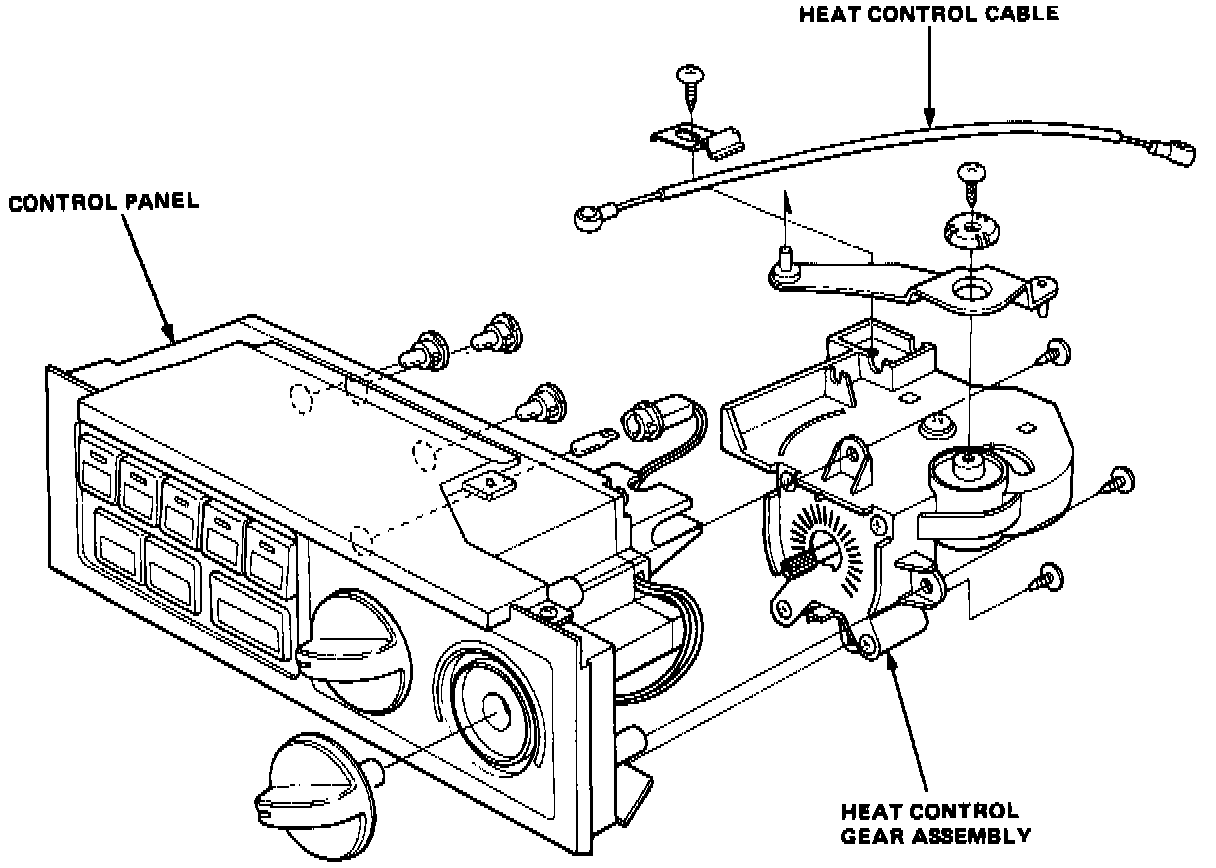

FUNCTION CONTROL PANEL DISASSEMBLY





Refer to image for component replacement.
