Condenser Fan Resistor: Testing and Inspection

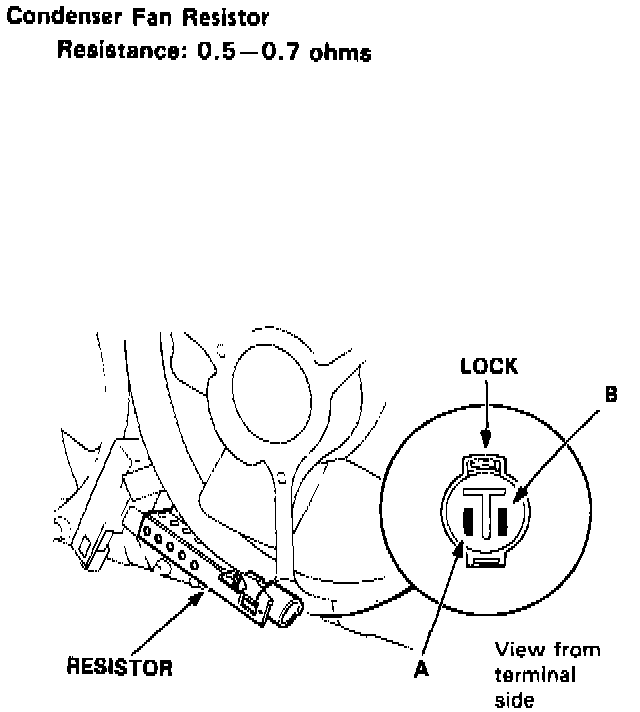

CONDENSER FAN RESISTOR TEST
1. Disconnect the 2-P connector from the resistor.
2. Using an ohmmeter, measure resistance between the A and B terminals. Replace the resistor if the resistance is not within specifications.

Resistance: 0.5 - 0.7 ohms

NOTE: Resistance will vary with the resistor temperature; specifications are at 20°C (70° F).

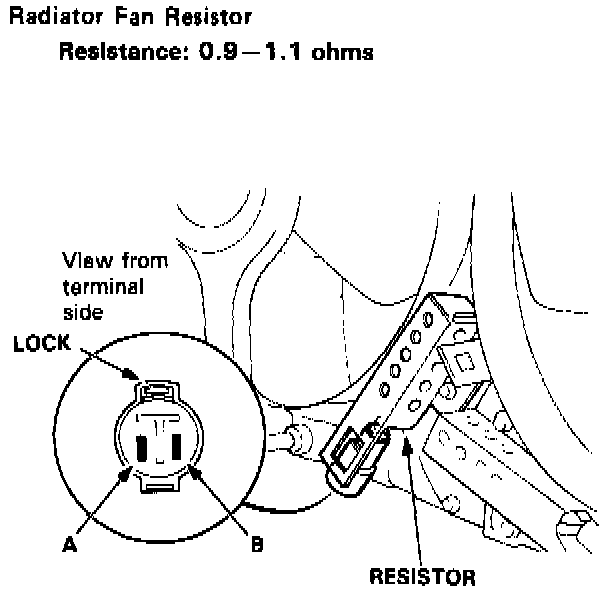

RADIATOR FAN RESISTOR TEST
1. Disconnect the 2-P connector from the resistor.
2. Using an ohmmeter, measure resistance between the A and B terminals. Replace the resistor if the resistance is not within specifications.

Resistance: 0.9 - 1.1 ohms

NOTE: Resistance will vary with the resistor temperature; specifications are at 20°C (70° F).
