Home >> Acura >> 1990 >> Legend Coupe V6-2675cc 2.7L SOHC FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> System Diagram

System Diagram

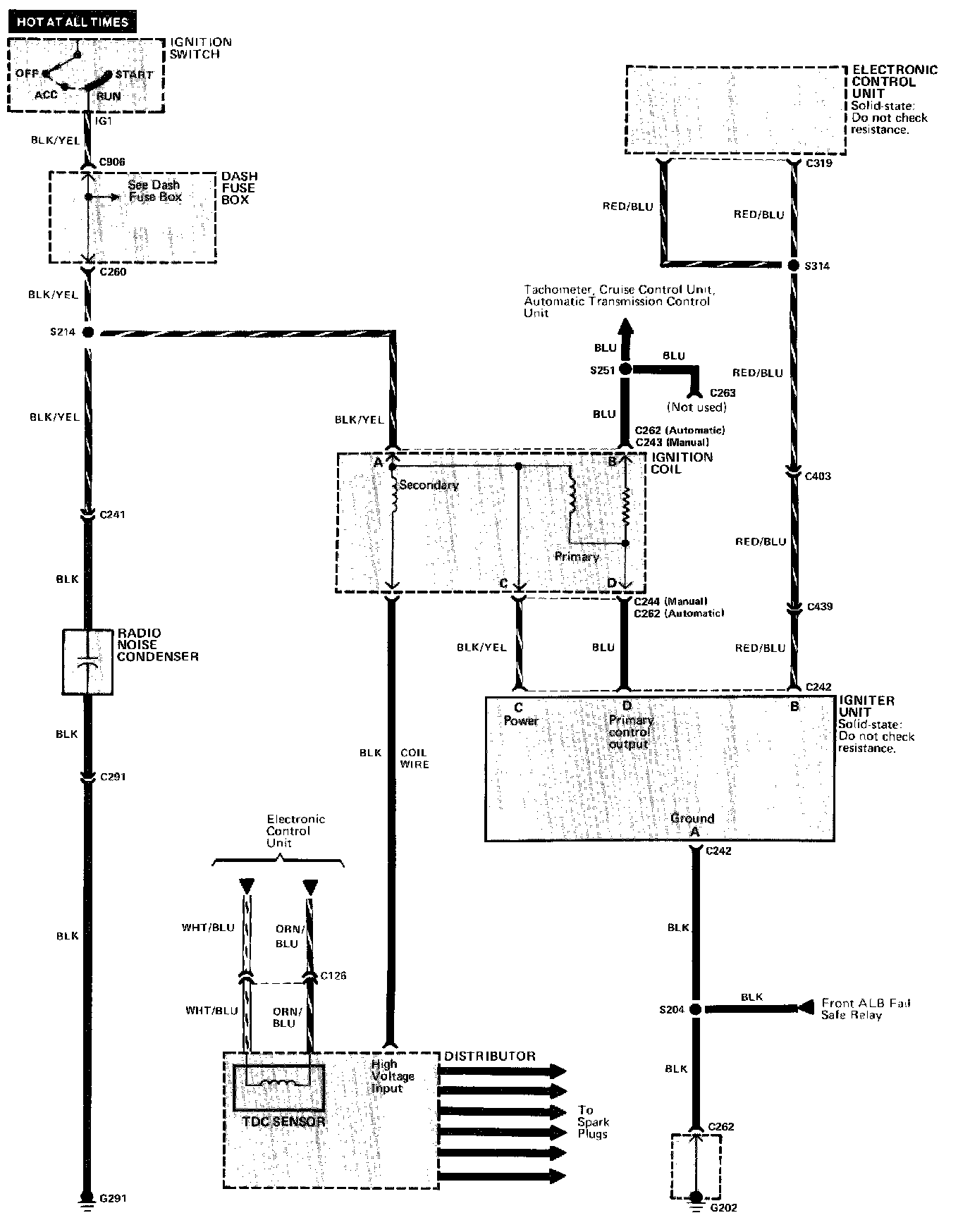

Coupe

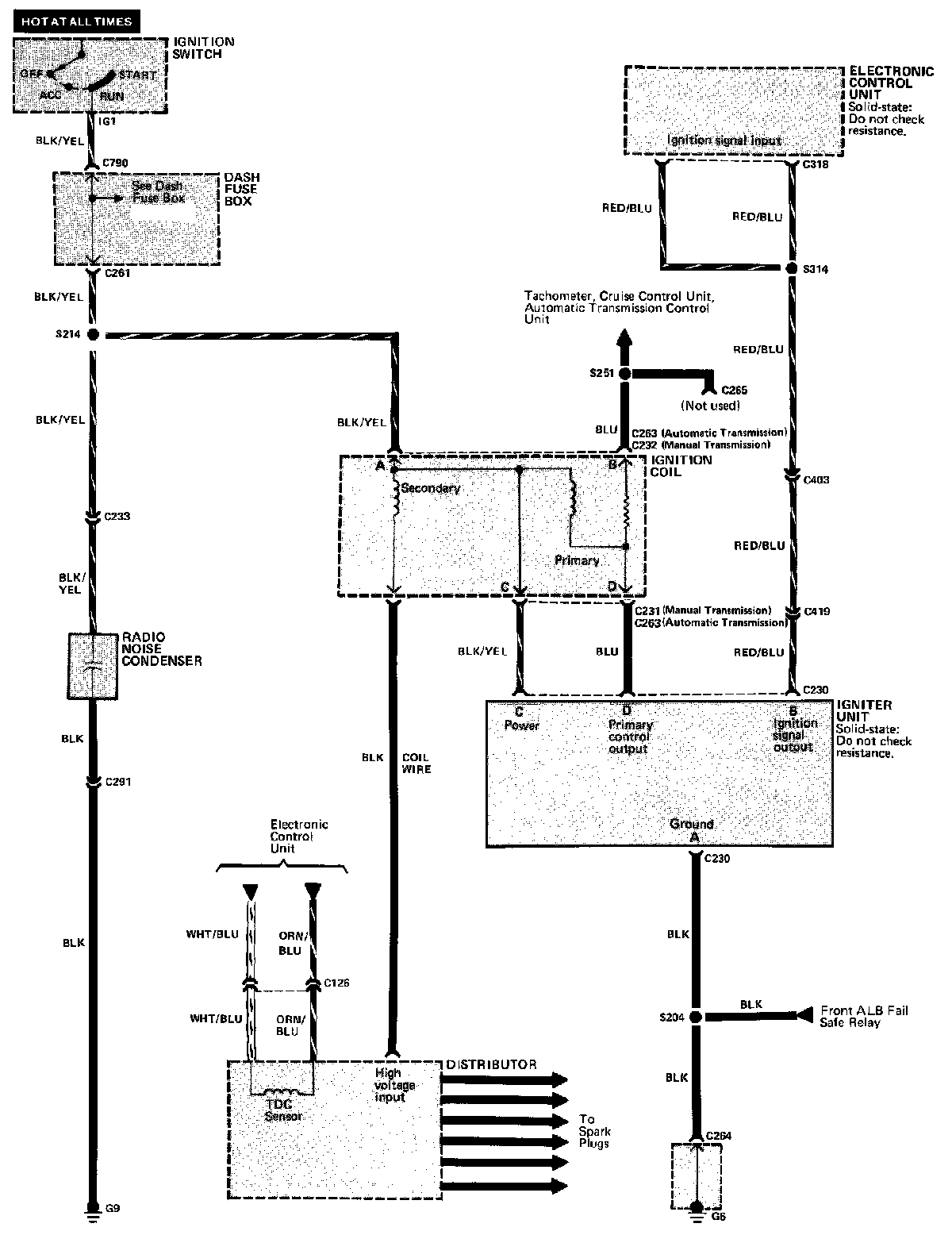

Sedan

For additional wiring diagram information refer to Powertrain Management / Diagrams. Electrical Diagrams
