Legend Coupe V6-2675cc 2.7L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
Air Bag Systems
Test Harness Attachment

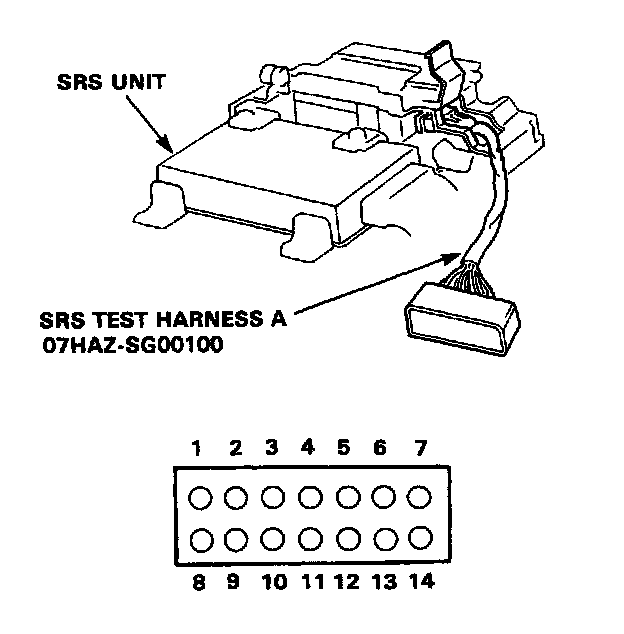

SRS Harness A

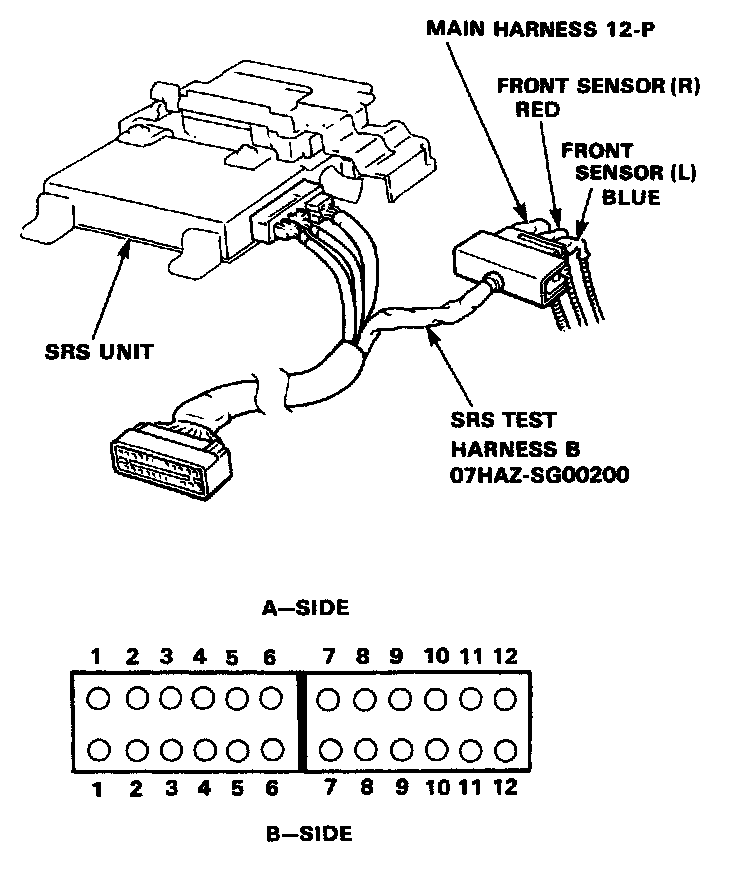

SRS Harness B

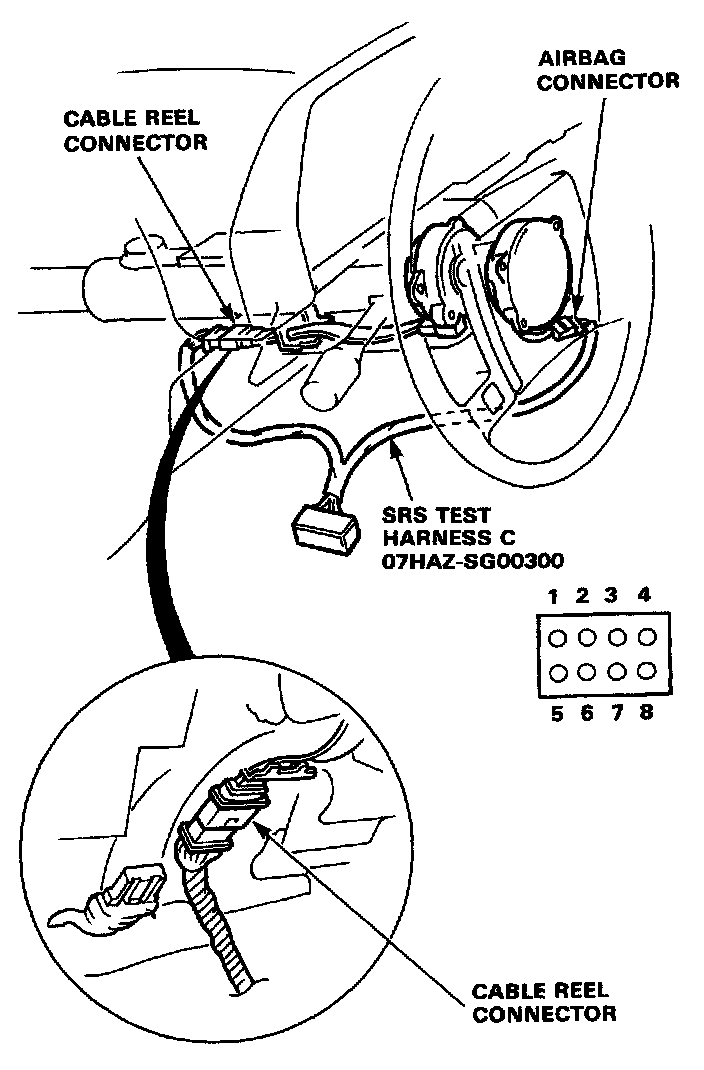

SRS Harness C
