Acura
>>
1990
>>
Integra L4-1834cc 1.8L DOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum Connections
>>
Manual Transmission
Manual Transmission

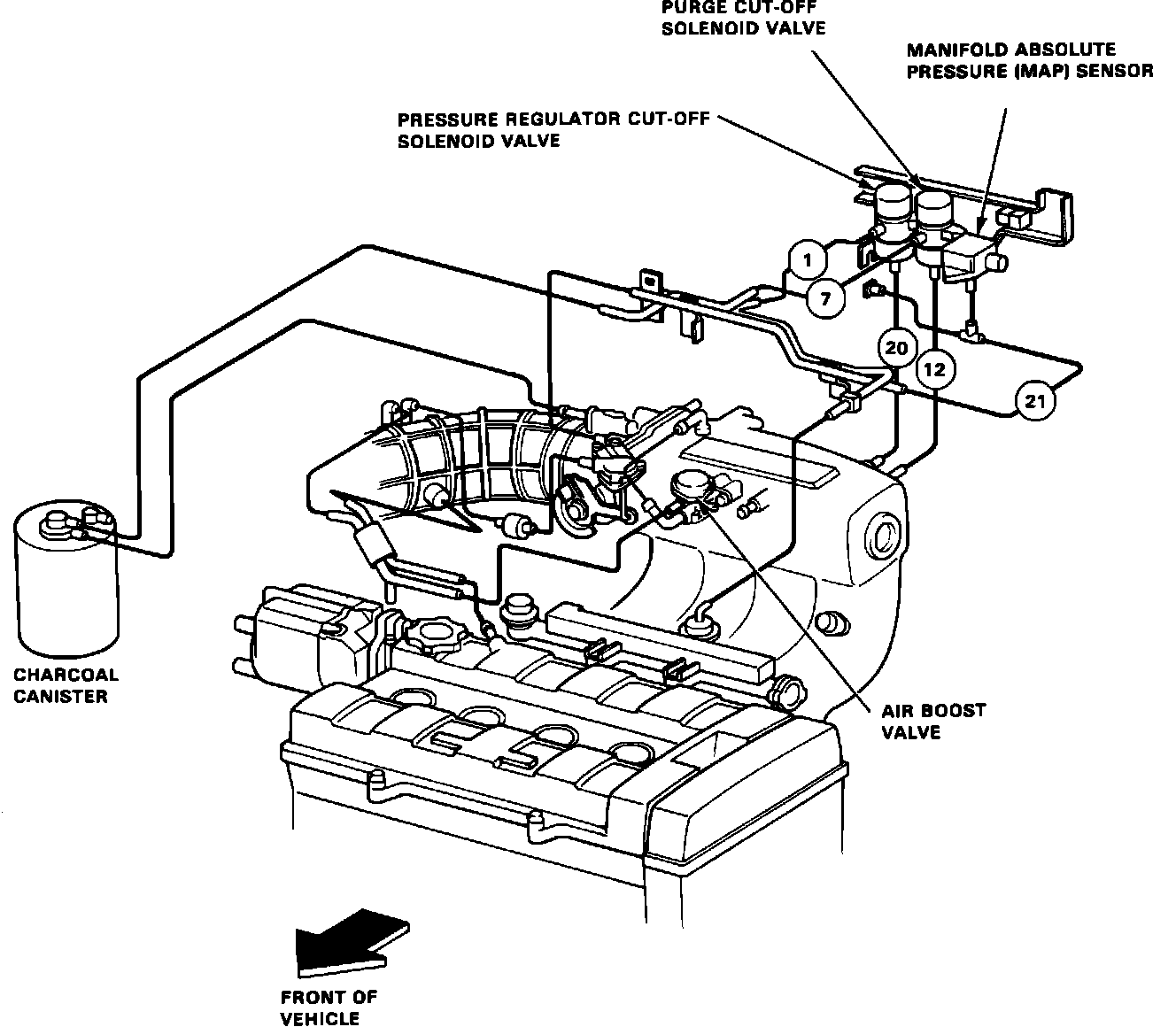

Fig. 9 Vacuum Connections (Manual Transmission):
