Home >> Acura >> 1990 >> Integra L4-1834cc 1.8L DOHC FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams

Computers and Control Systems: Diagrams

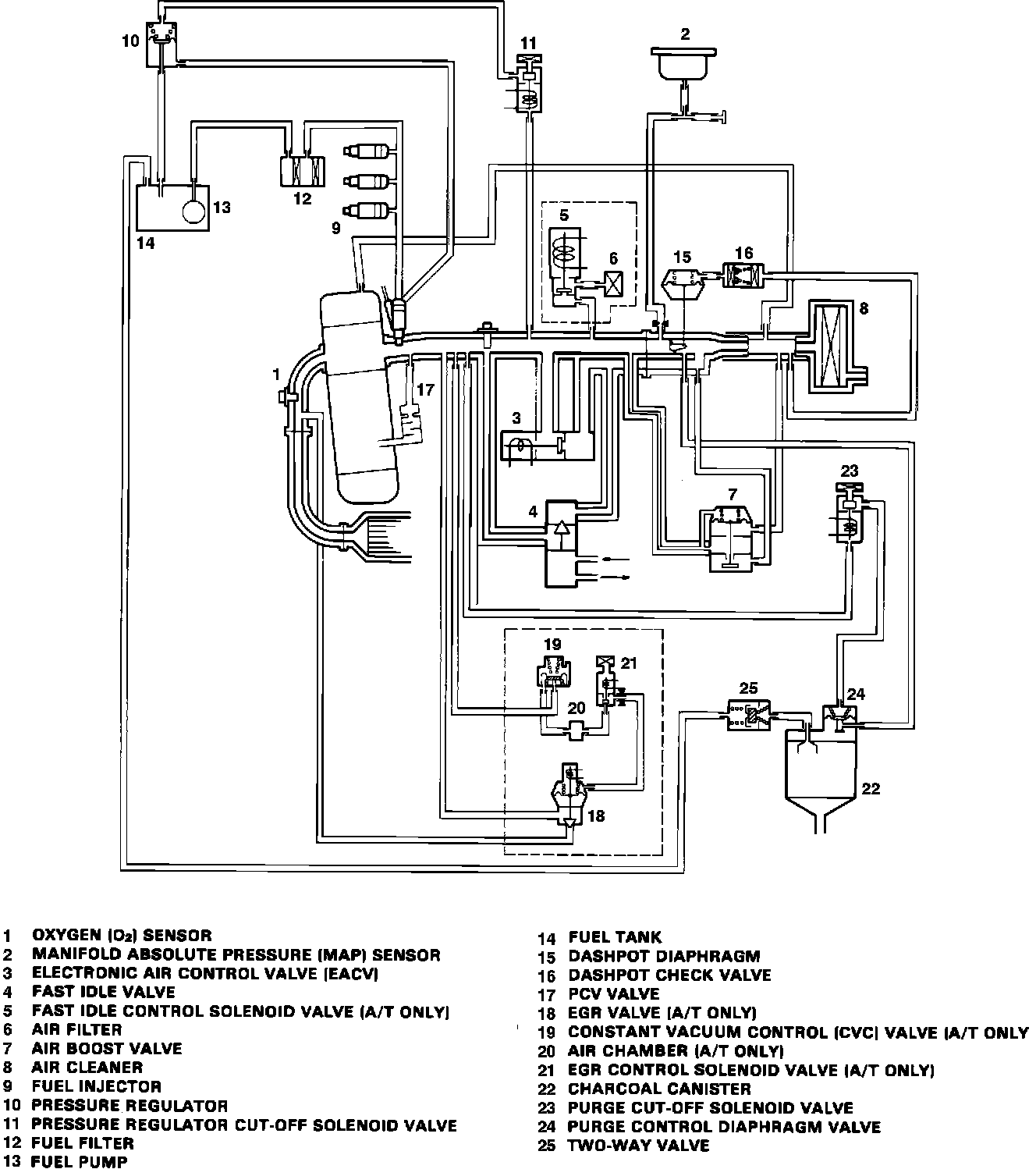

Fig. 12 Vacuum Diagram:
