Integra L4-1834cc 1.8L DOHC FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

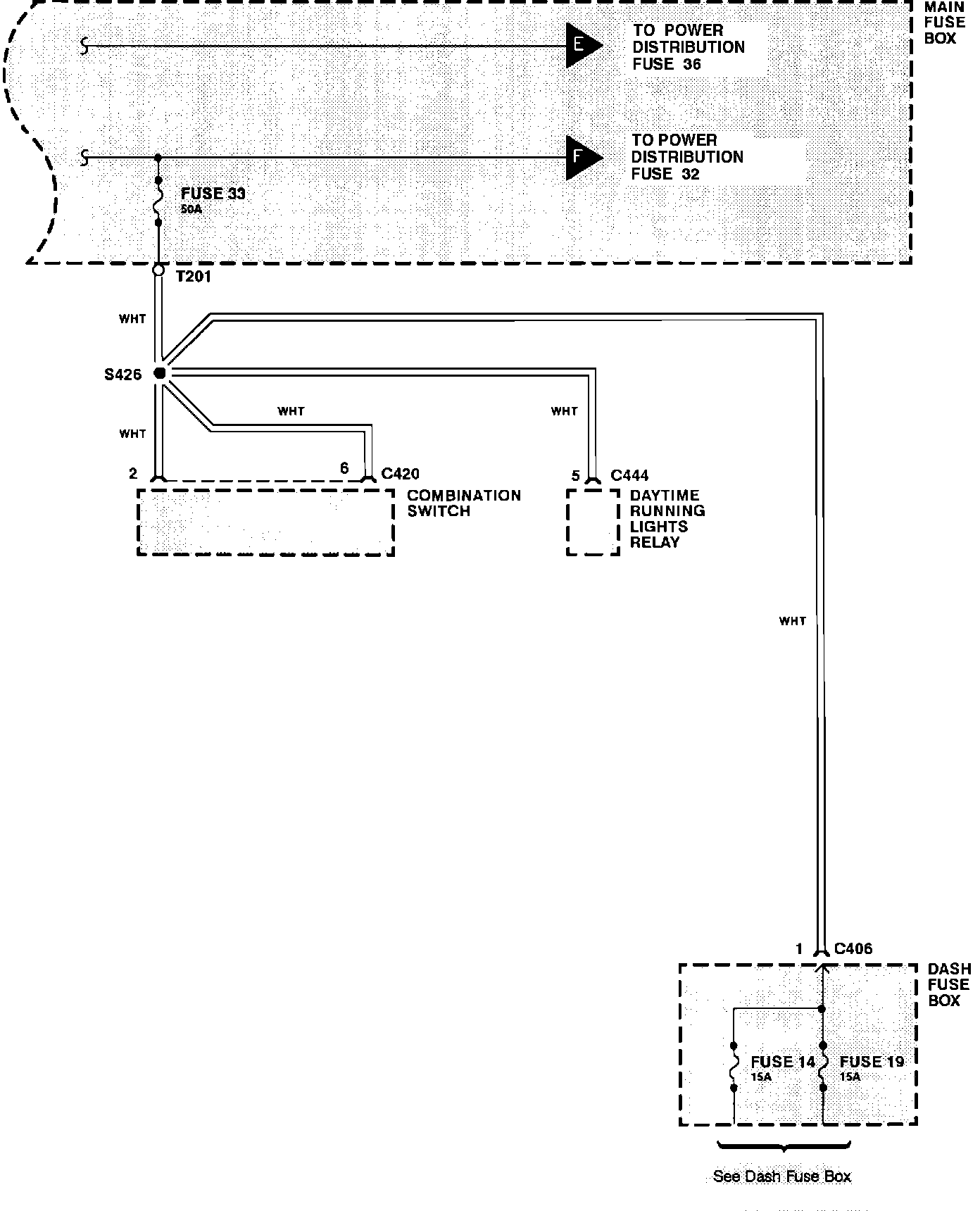

Power Distribution
Power Distribution

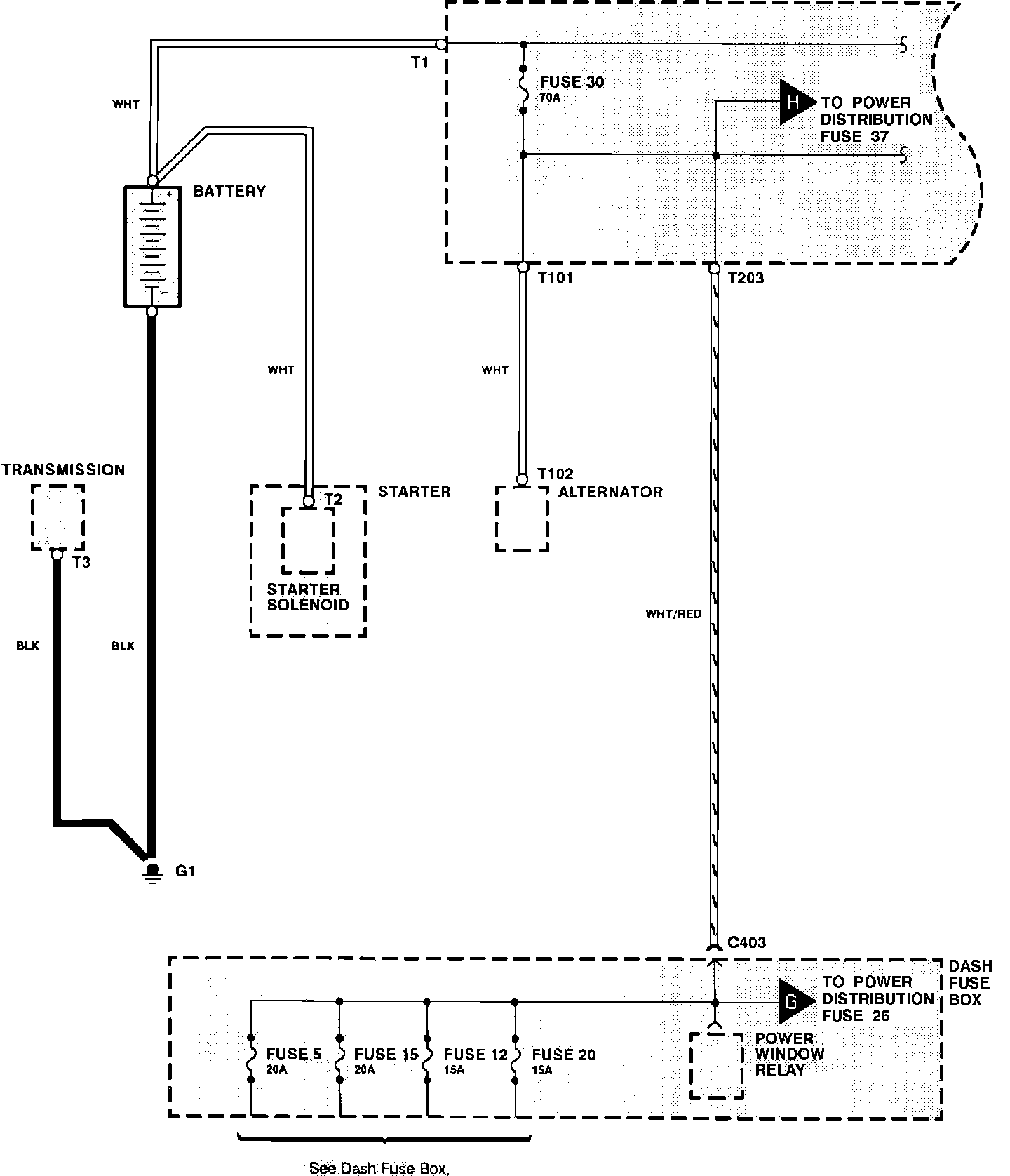

Power Distribution (Fuse 30):
Power Distribution (Fuse 30):
