Home >> Acura >> 1990 >> Integra L4-1834cc 1.8L DOHC FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> A/C System Troubleshooting Flowcharts >> Compressor

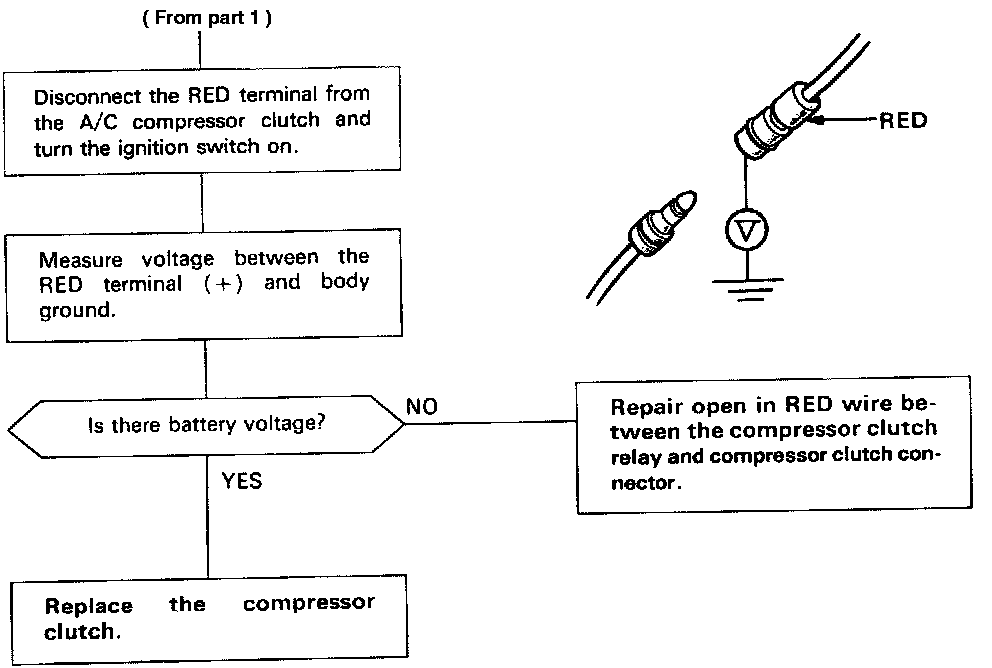

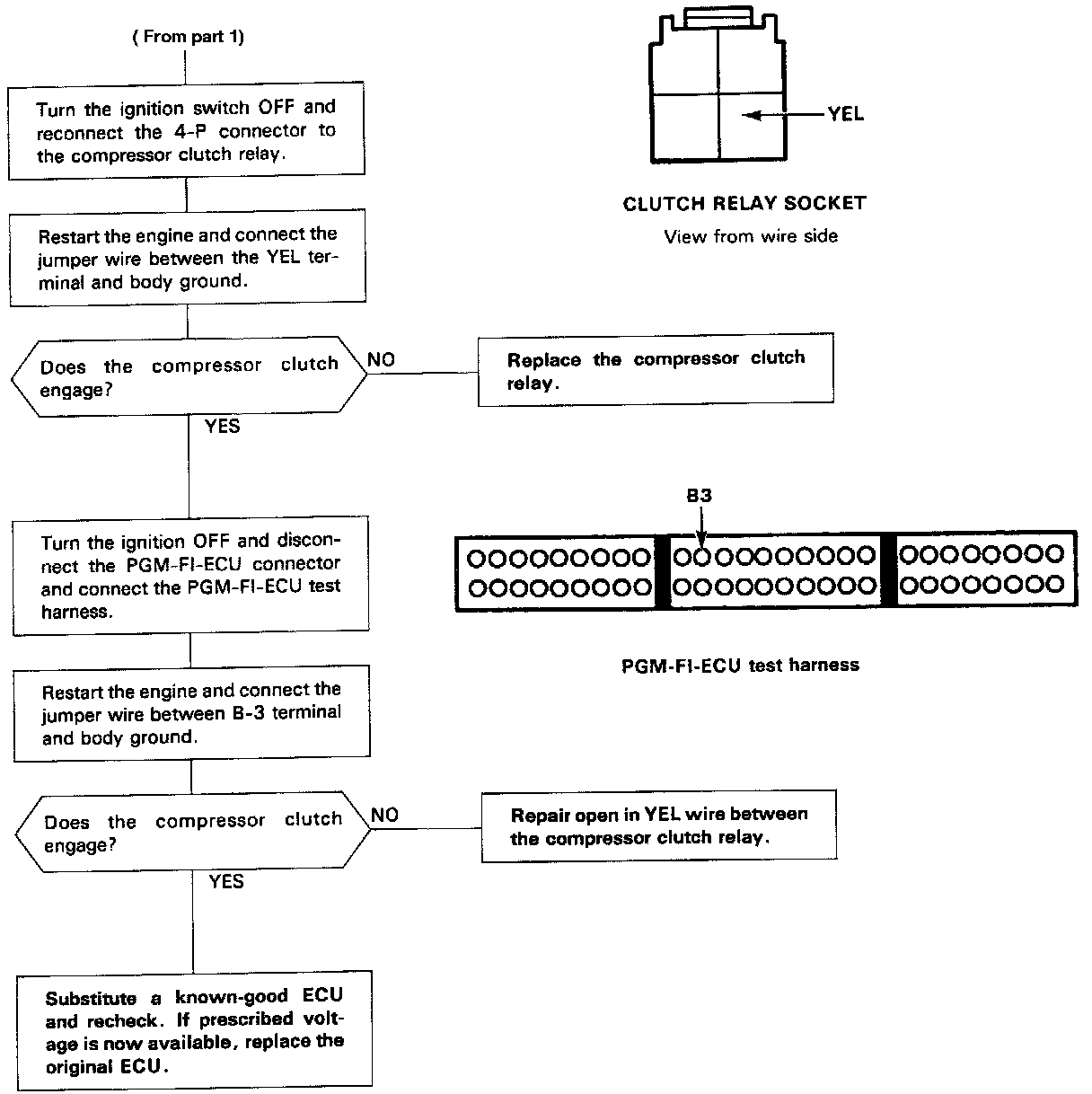

Compressor

Compressor

Part 1:

Part 2:

Part 3:
