System Diagram

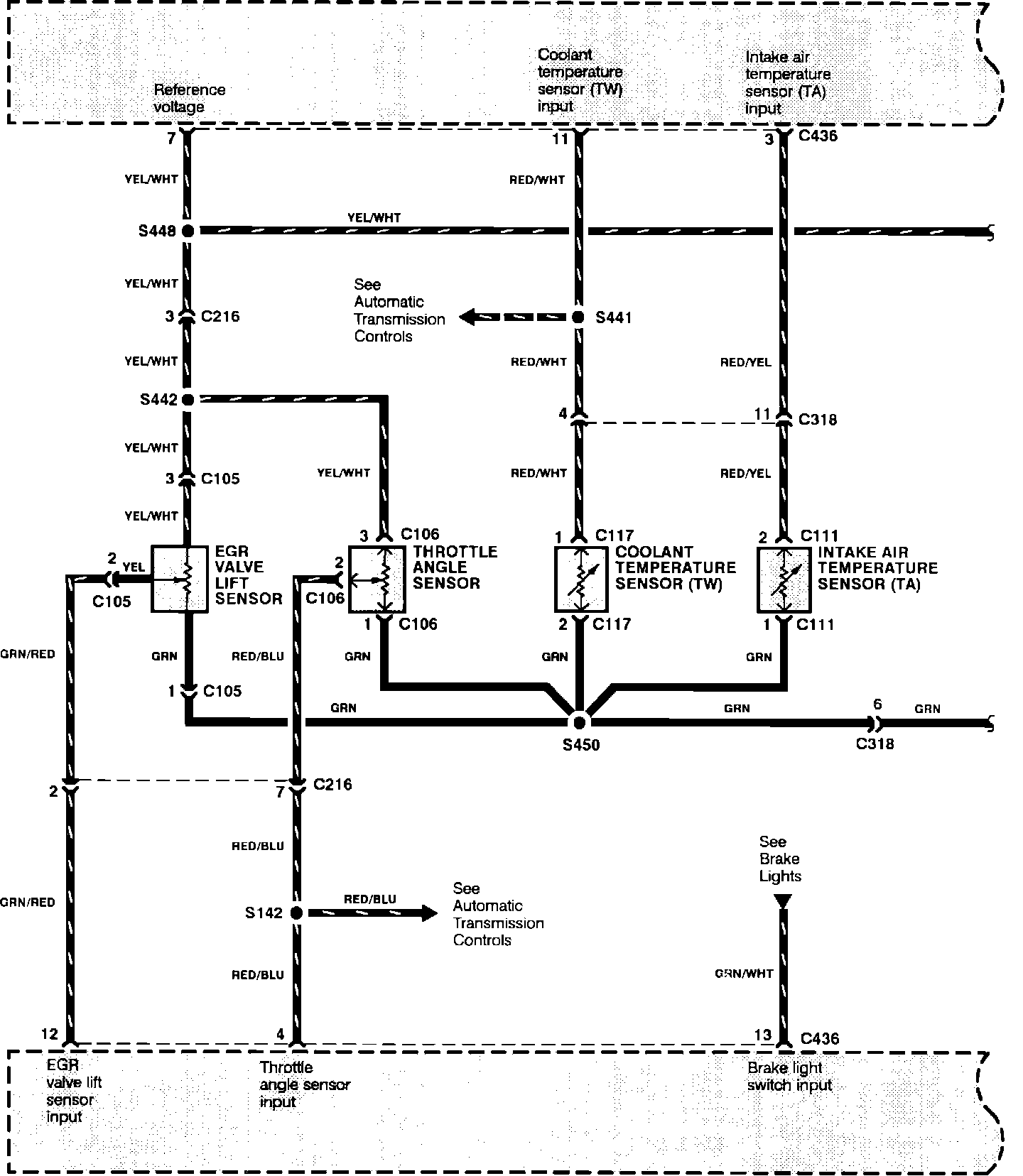

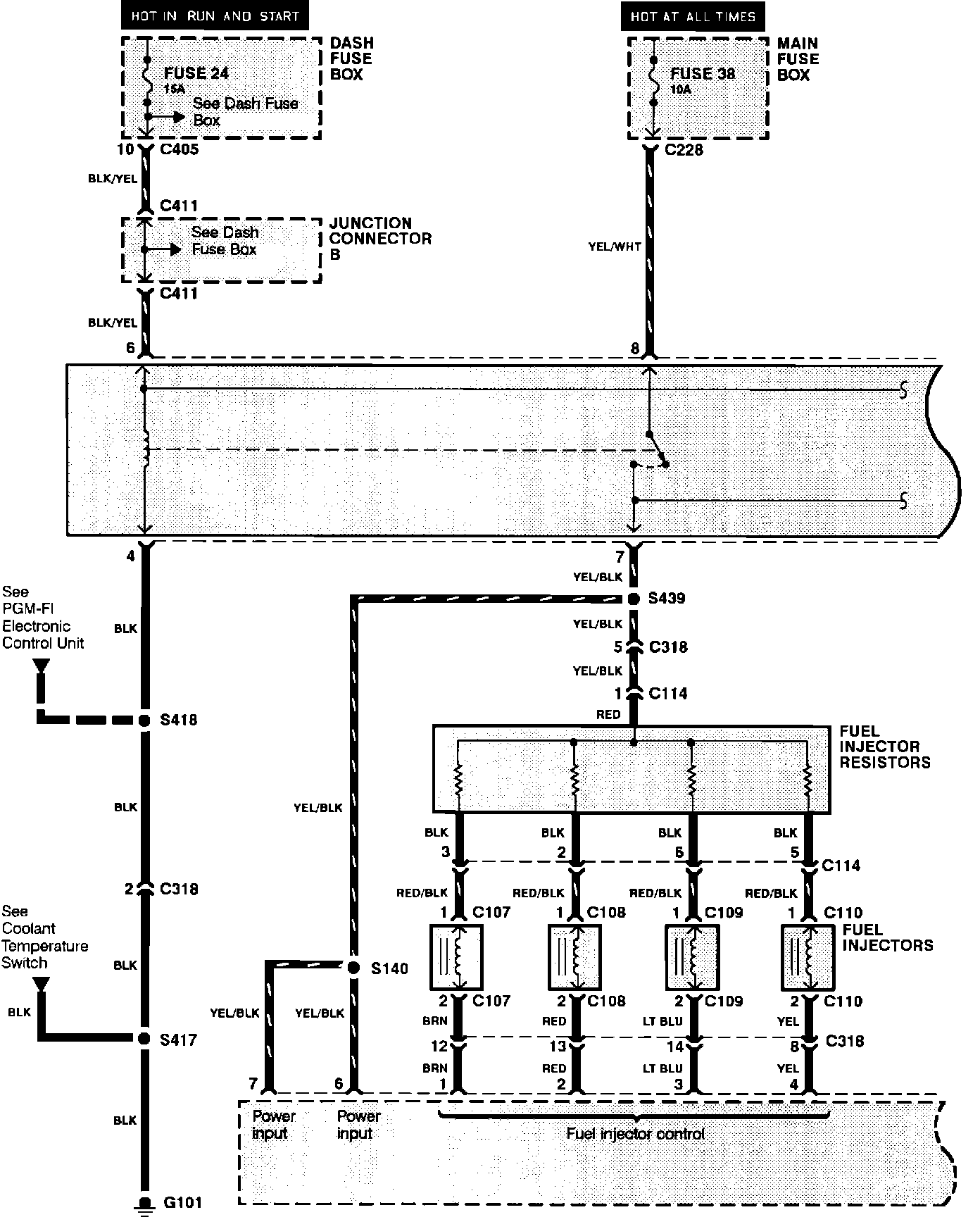

Fuel Injection:

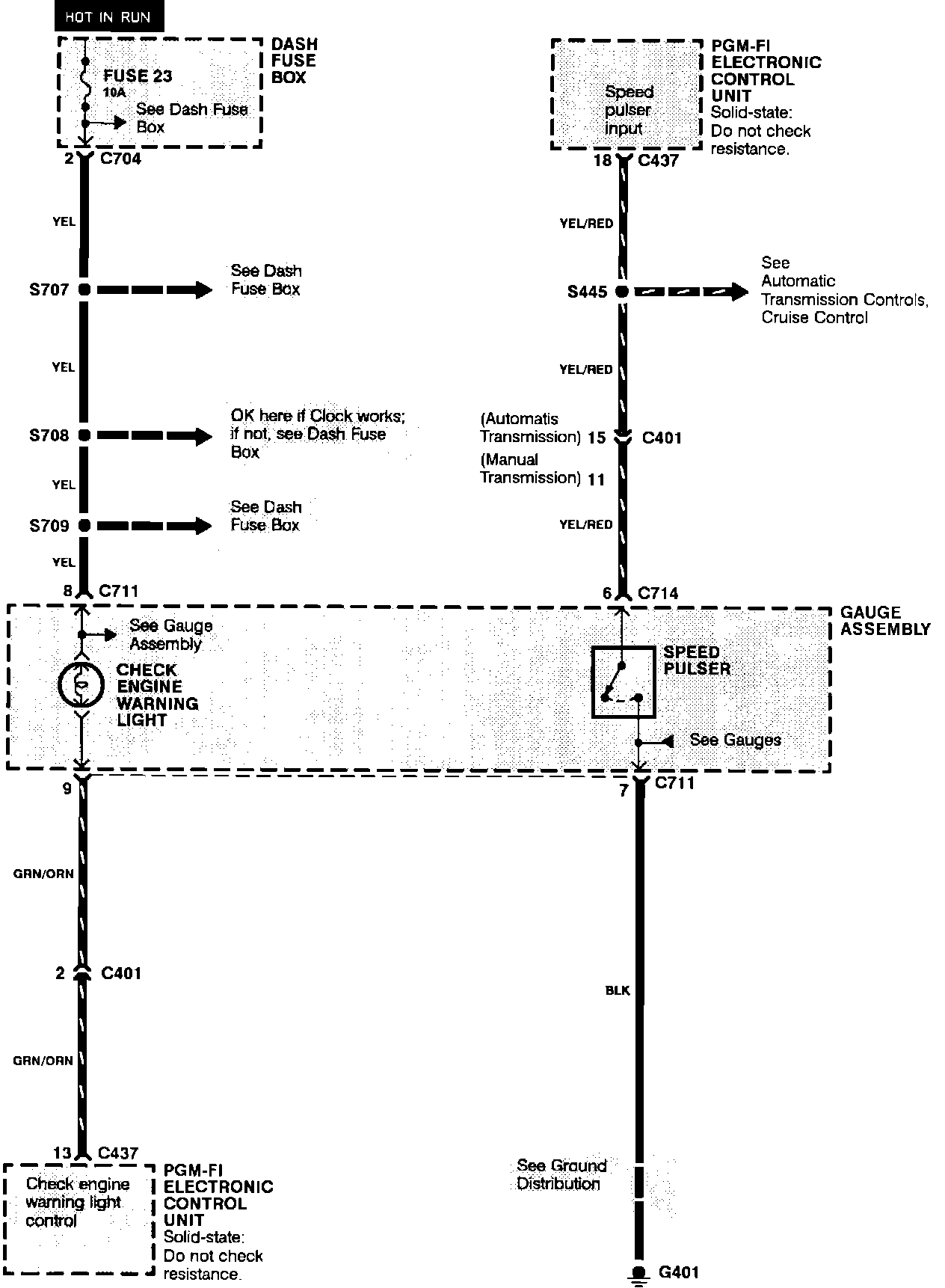

Fuel Injection & Fuel Pump:

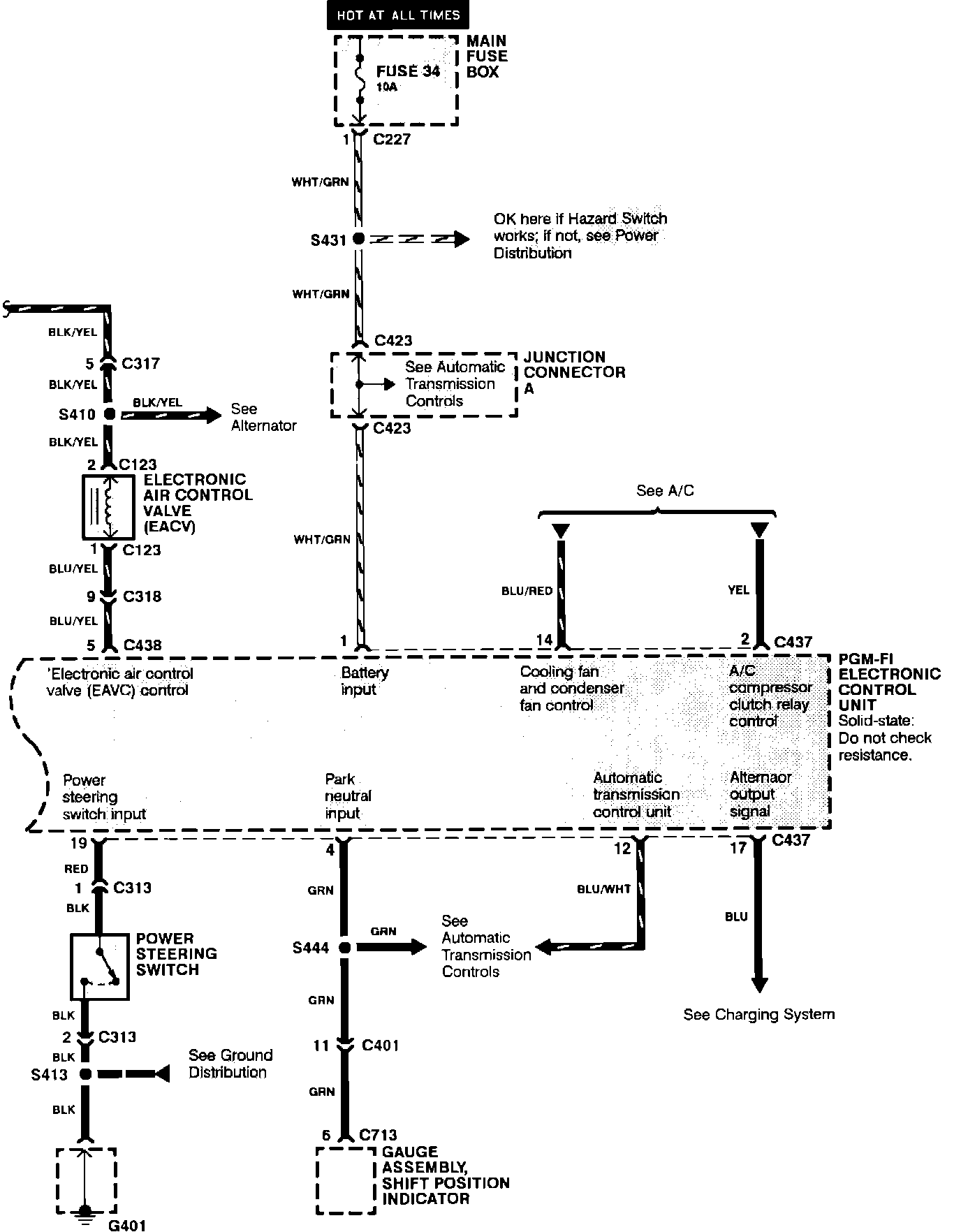

Fuel Injection:

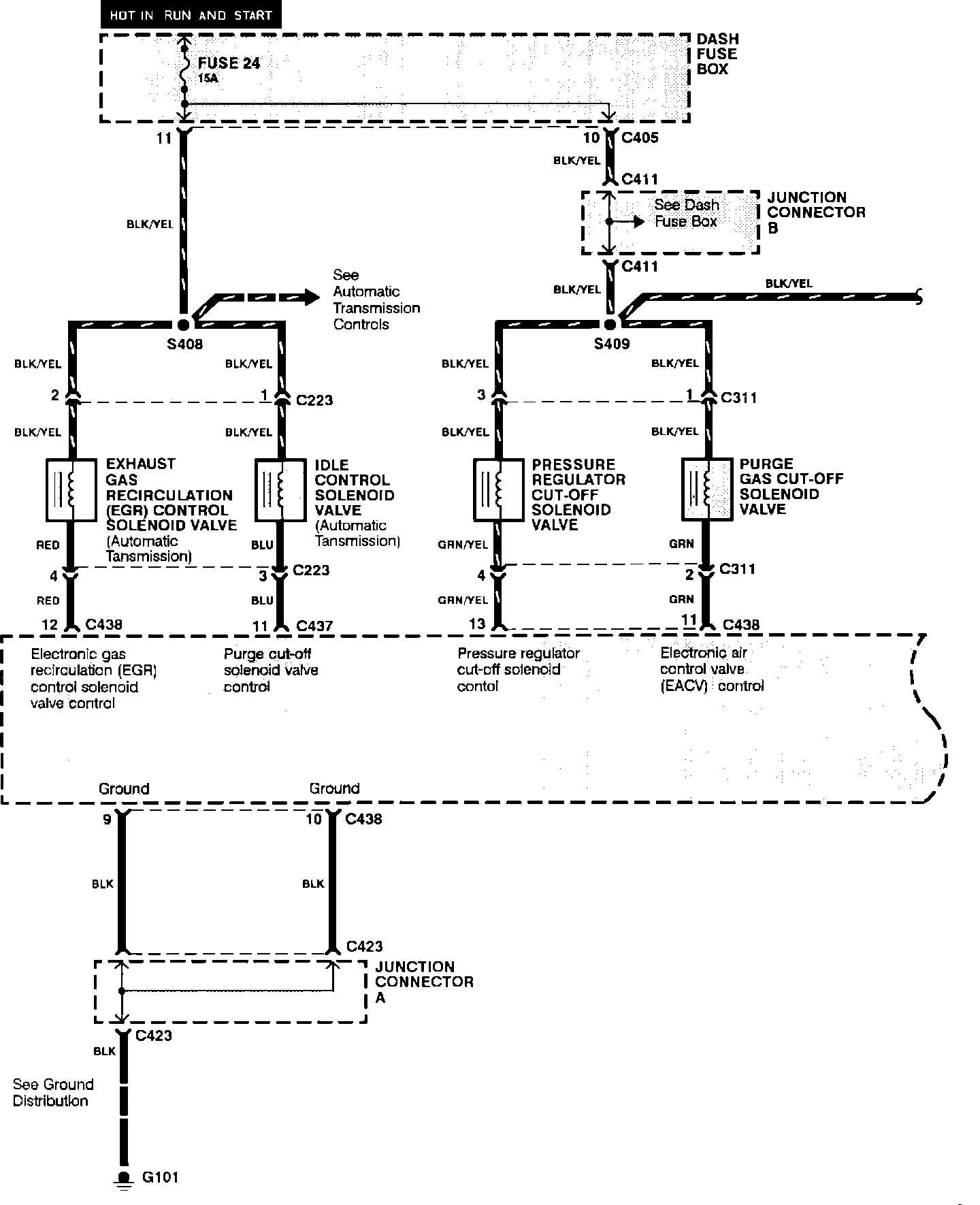

Fuel Injection:

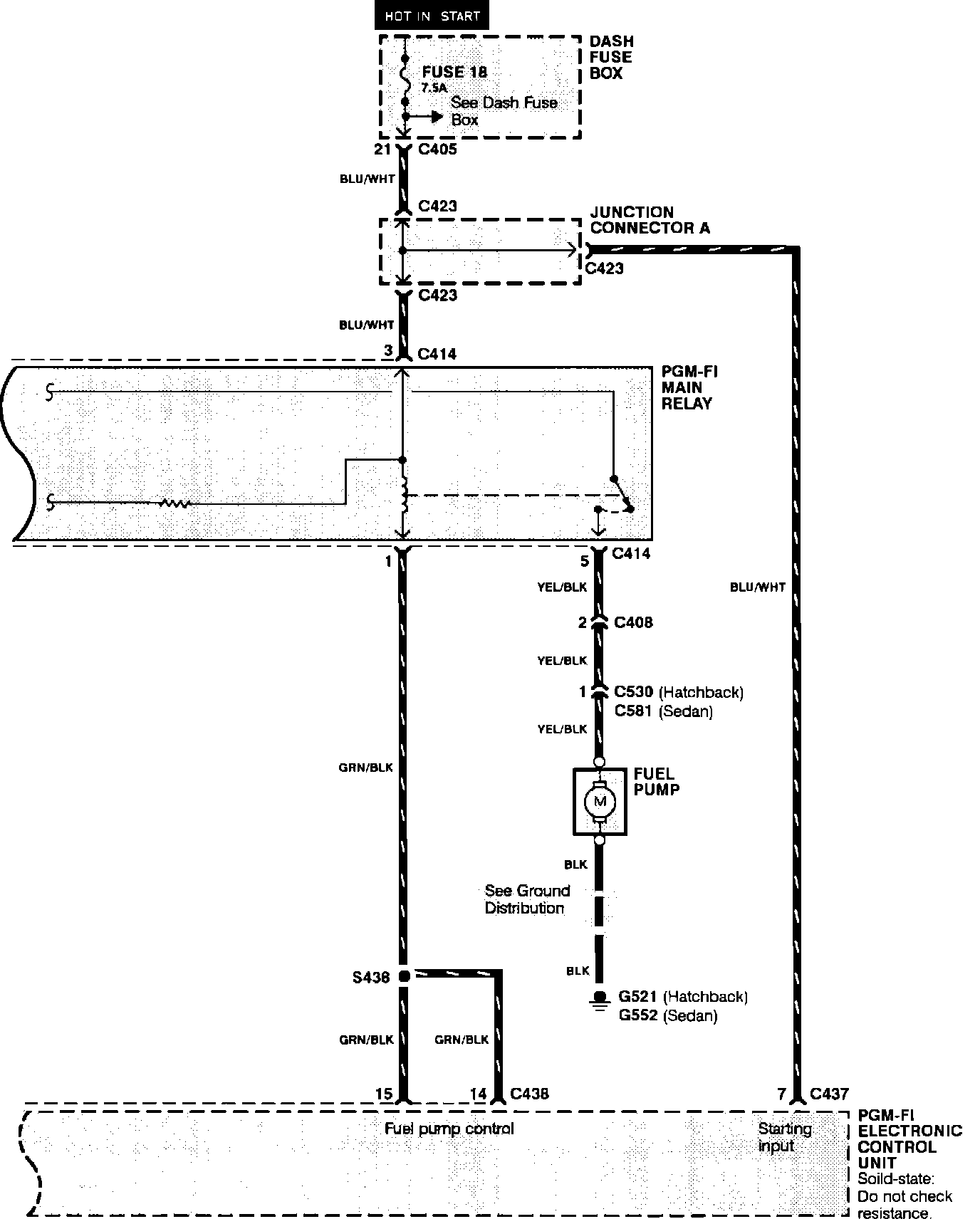

Fuel Injection:

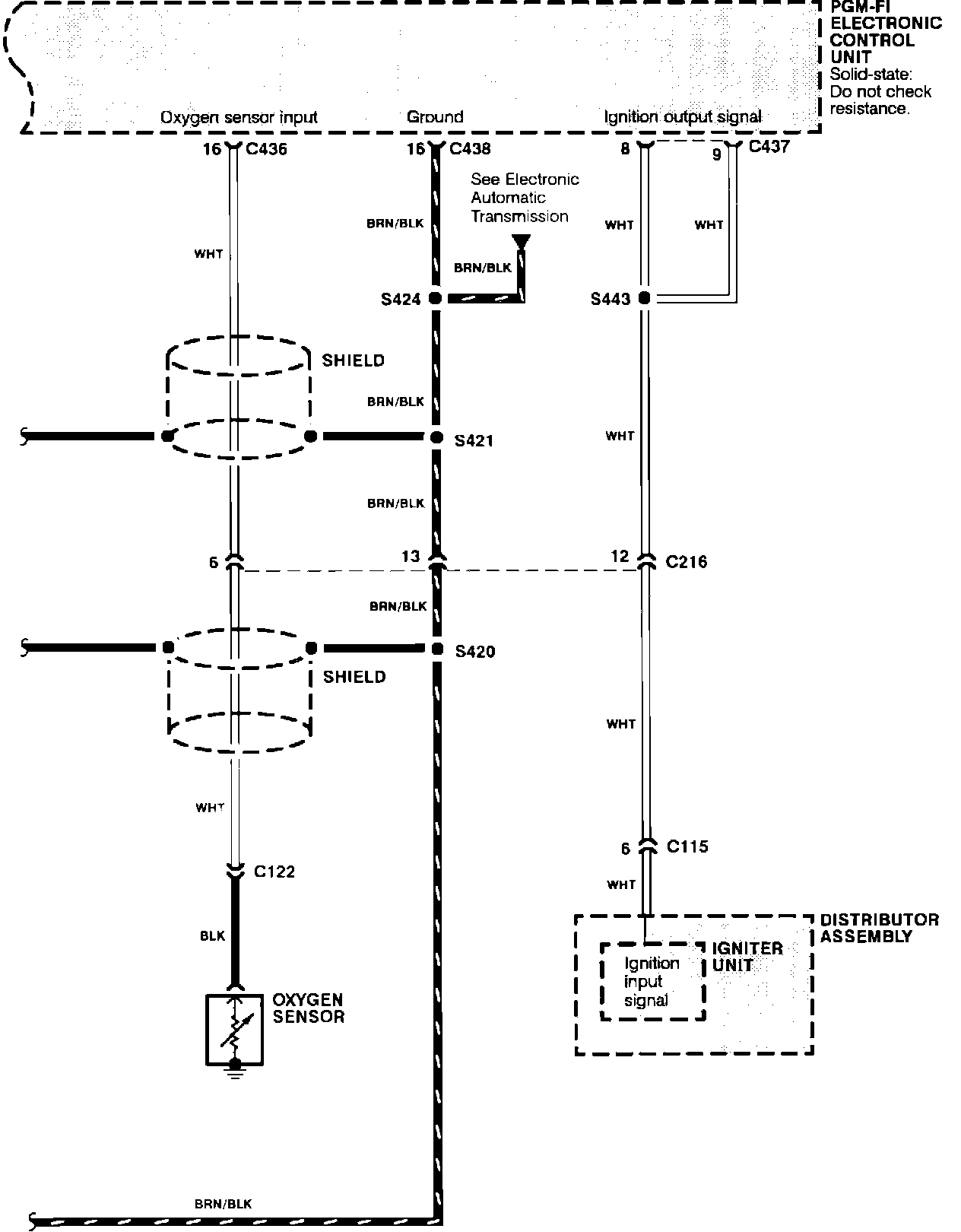

Fuel Injection:

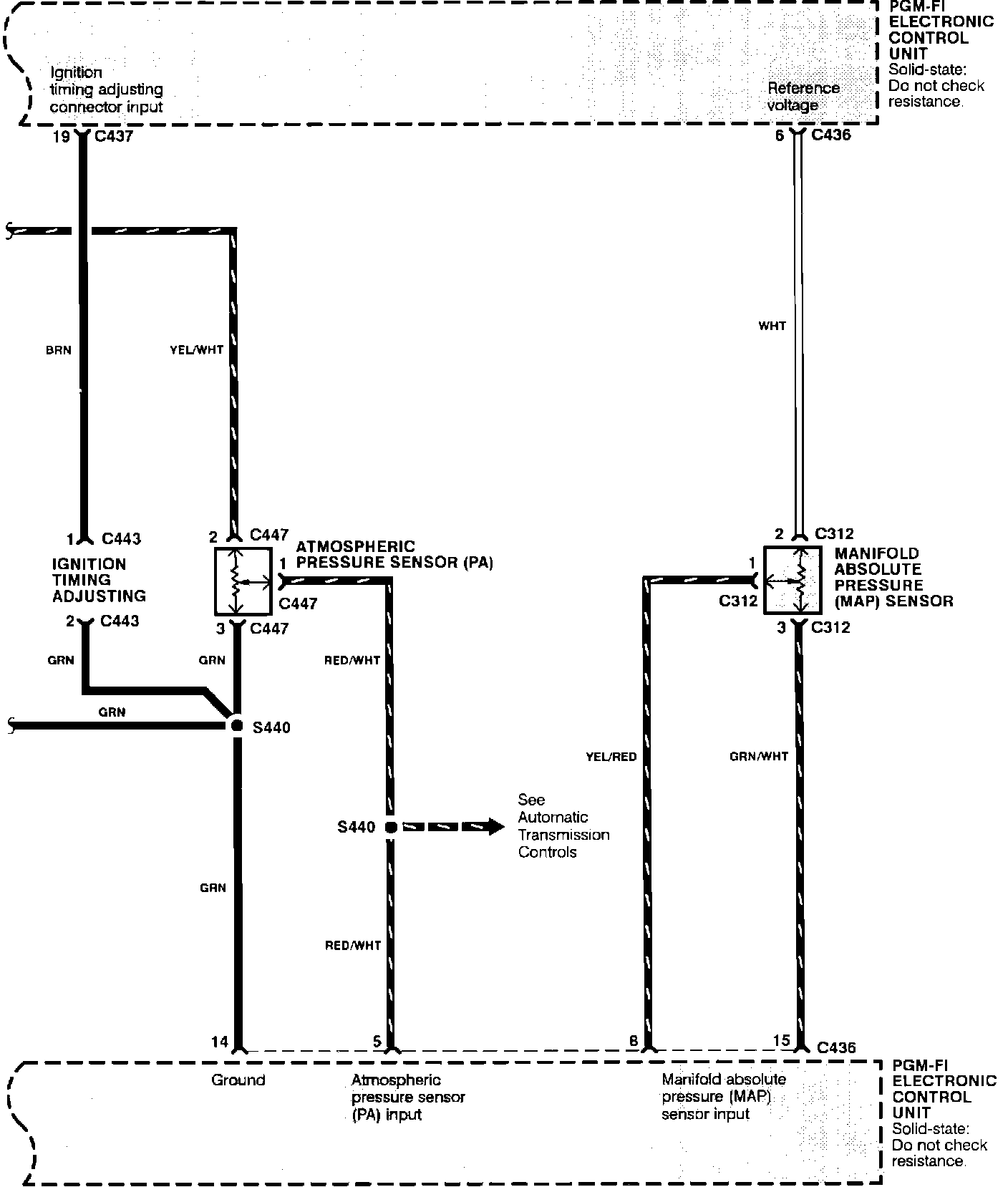

Fuel Injection:

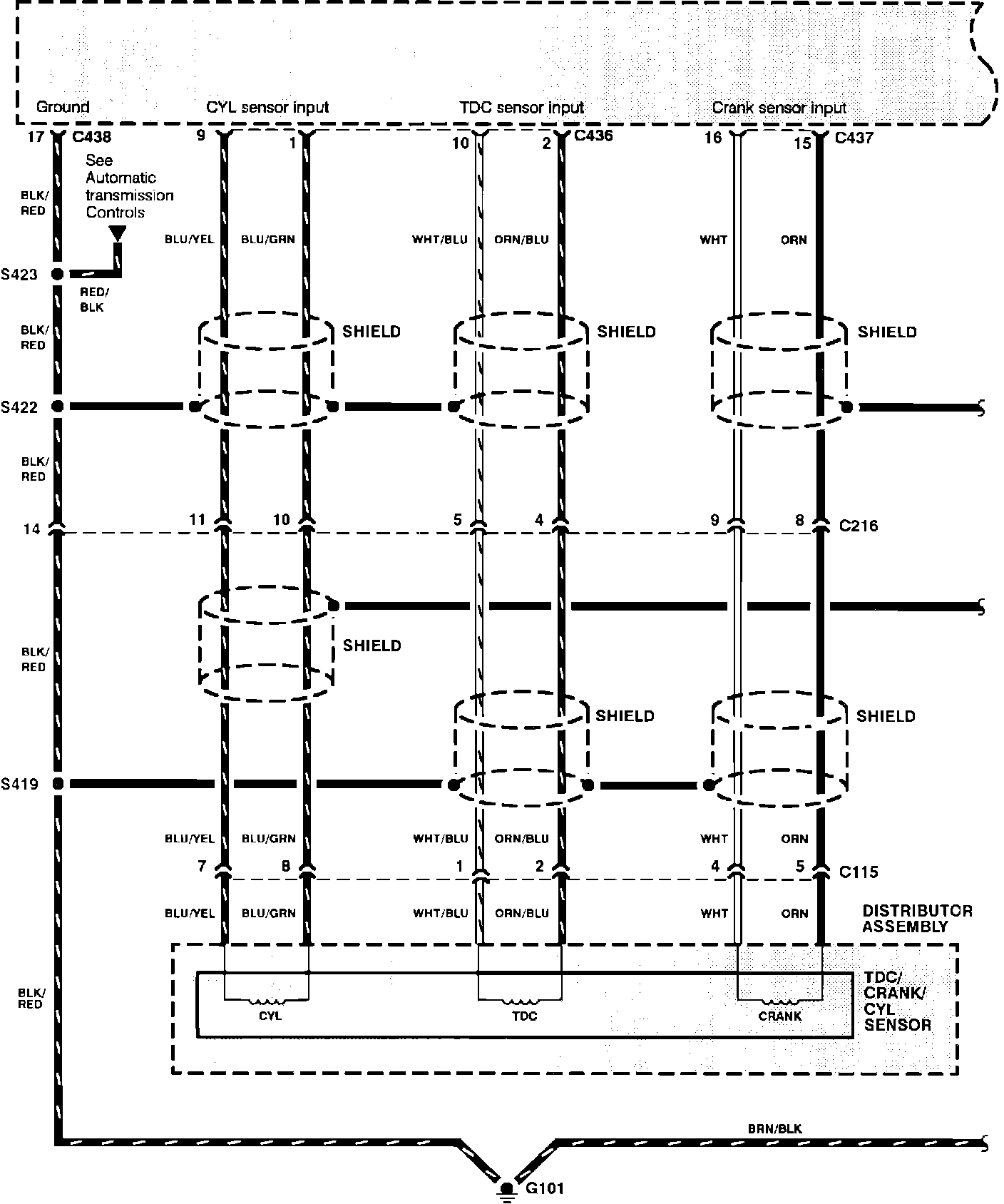

Fuel Injection:



Fuel Injection:
