Home >> Acura >> 1990 >> Integra L4-1834cc 1.8L DOHC FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 5

DTC 5








The MAP sensor converts manifold absolute pressure into electrical signals and inputs the ECU.

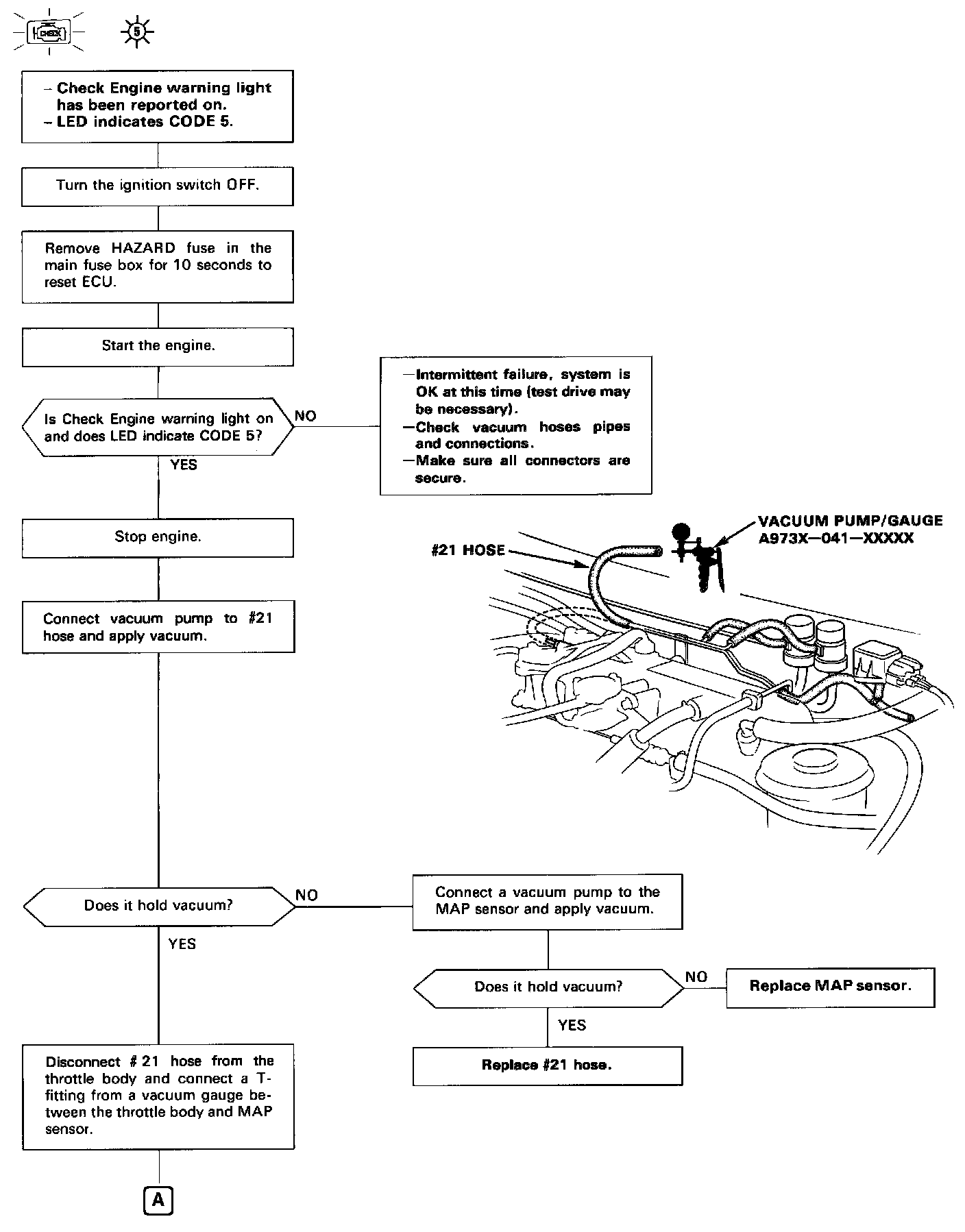

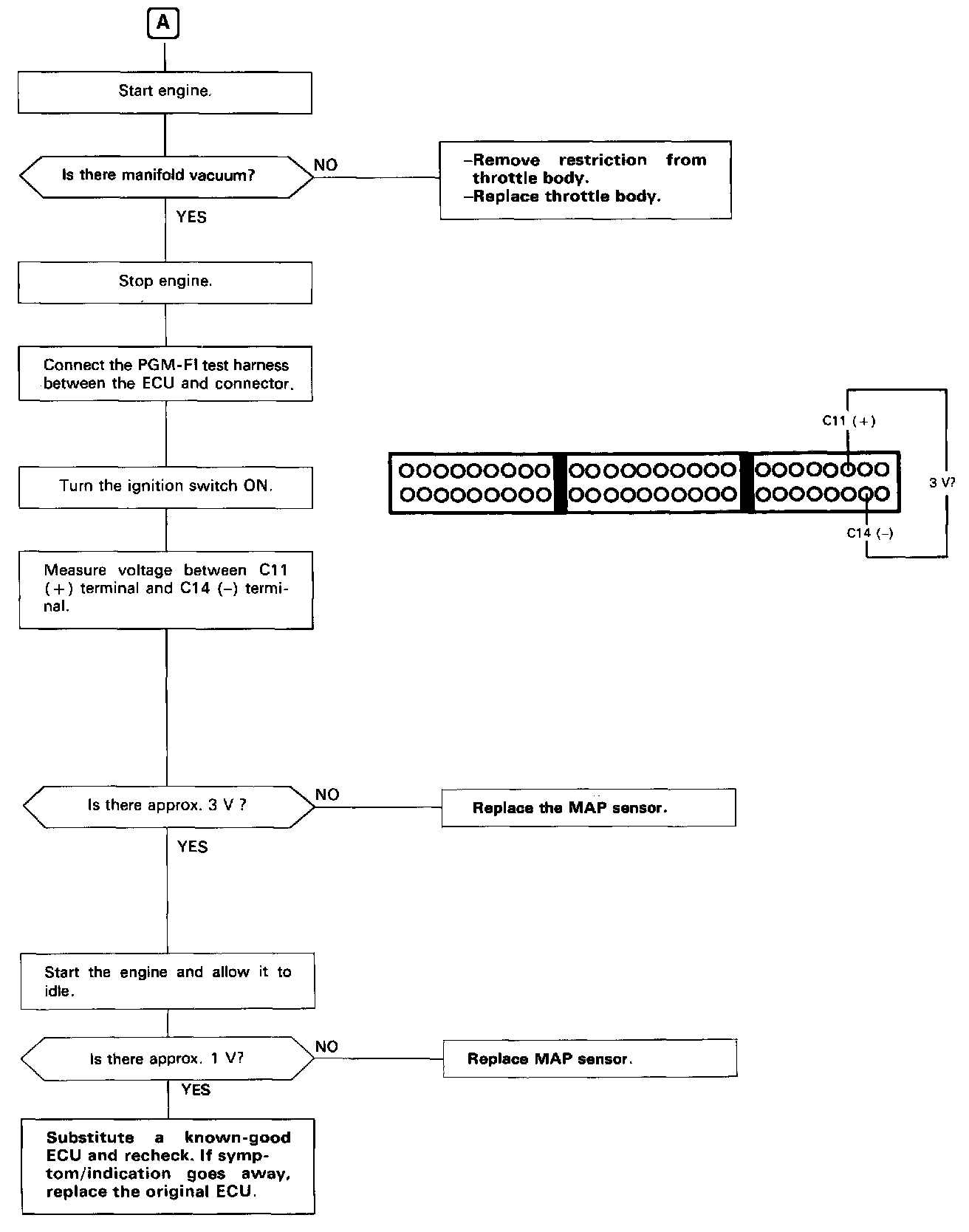

TROUBLESHOOTING FLOWCHART
