Manual Climate Control

NOTE: SRS wire harness is routed near the console.

WARNING: All SRS wire harnesses and connectors are colored yellow. Do not use electrical test equipment on these circuits.

CAUTION: Be careful not to damage SRS wire harness when servicing the console.

FUNCTION CONTROL PANEL REMOVAL





1. Remove the screws, then remove the front console.
2. Remove the radio/cassette player.

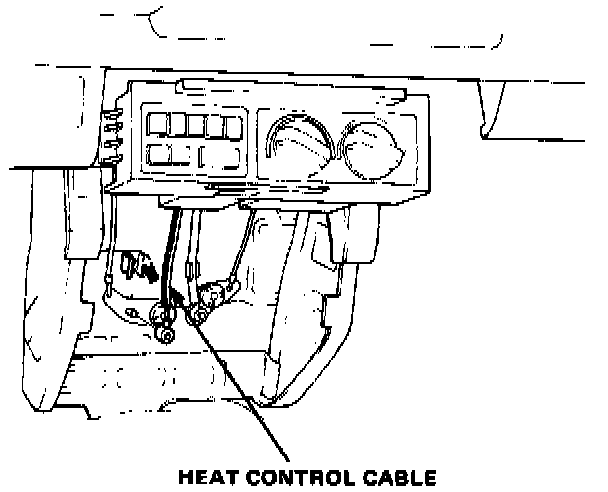

3. Remove the heat control cable from the heater.





4. Remove the screws (4).
5. Disconnect the connector and remove the function control panel.
Install in the reverse order of removal and make sure the heat control cable is properly adjusted.





DISASSEMBLY
Refer to image for disassembly details.
