Compressor Clutch Coil: Service and Repair

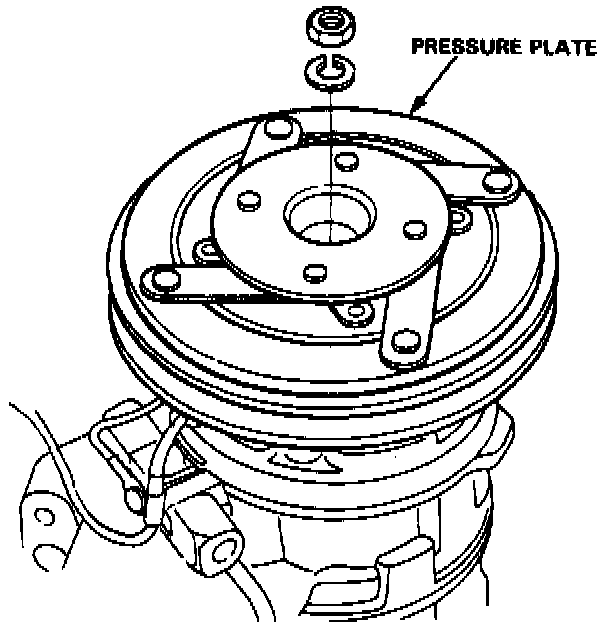

1. Remove the nut and spring washer while holding the pressure plate.

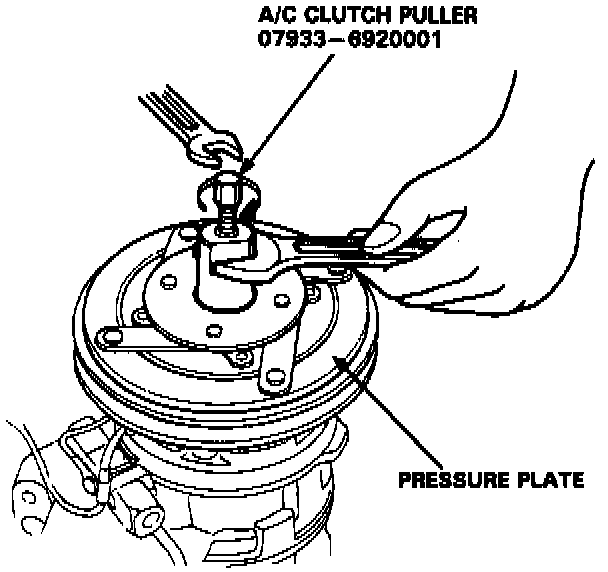

2. Thread the special tool into the pressure plate and remove the pressure plate by screwing in the center bolt.

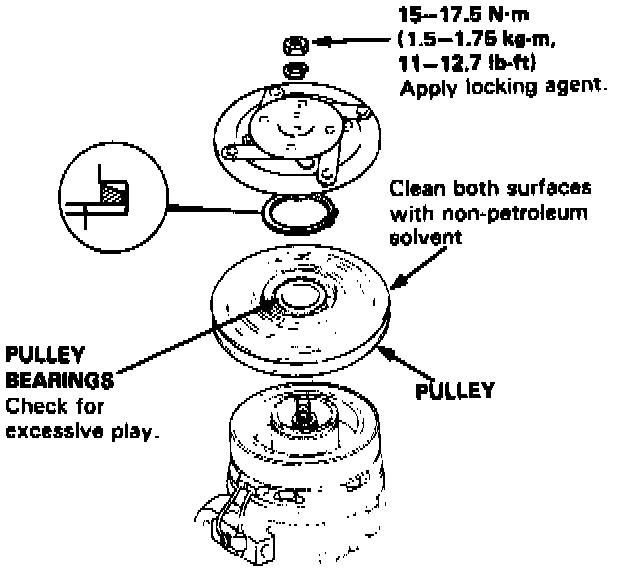

3. Use circlip pliers to take the circlip off and remove the pulley from the shaft with a 2 or 3 jaw puller.

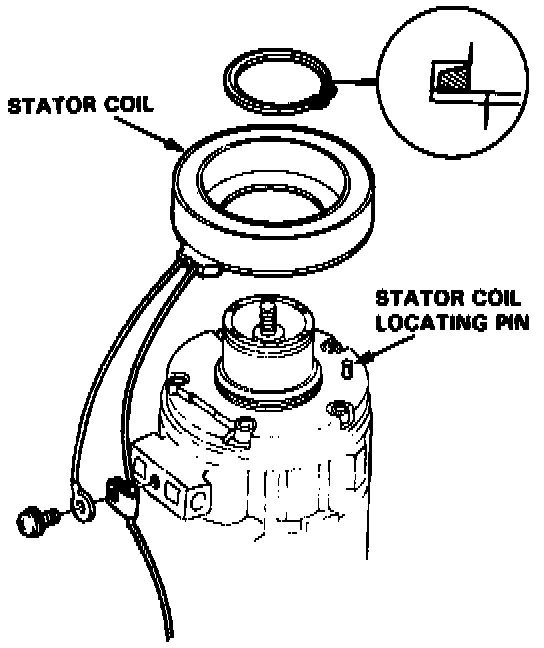

4. Remove the stator coil by removing the large circlip.
