Console: Service and Repair

NOTE: SRS wire harness is routed near the console.

WARNING: All SRS wire harness and connectors are colored Yellow. Do not use electrical test equipment on these circuit.

CAUTION: Be careful not to damage SRS wire harness when servicing the console.





CONSOLE REPLACEMENT

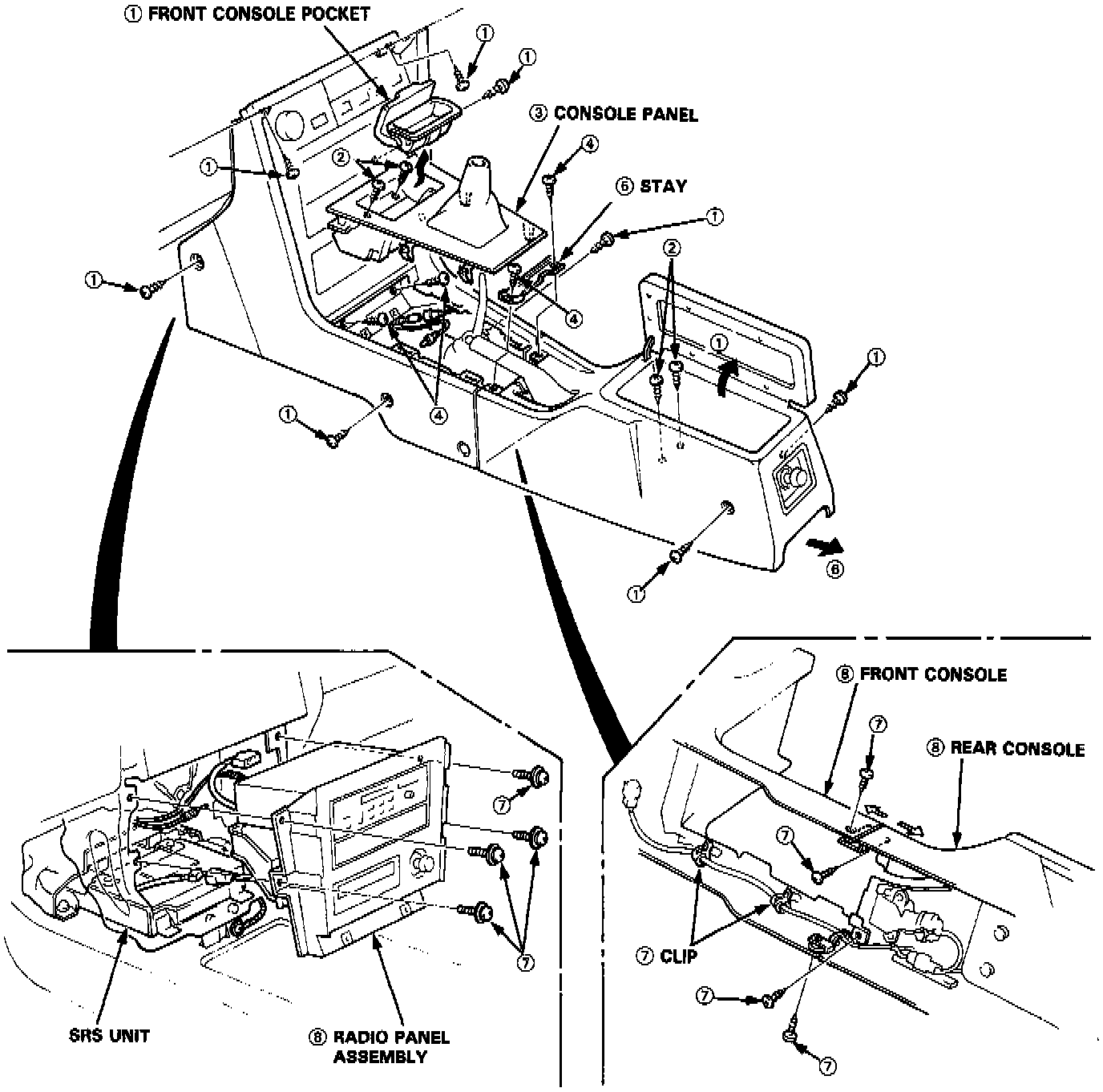

Disassemble in numbered sequence. (Refer to image.)

NOTE:
- Lift up the parking brake lever.
- After removing the front console, disconnect the wire harness inside the console.
- For manual transmission models, remove the shift lever knob.
