Home >> Acura >> 1988 >> Legend Sedan V6-2675cc 2.7L SOHC FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Windows and Glass >> Power Window Relay >> Locations

Power Window Relay: Locations

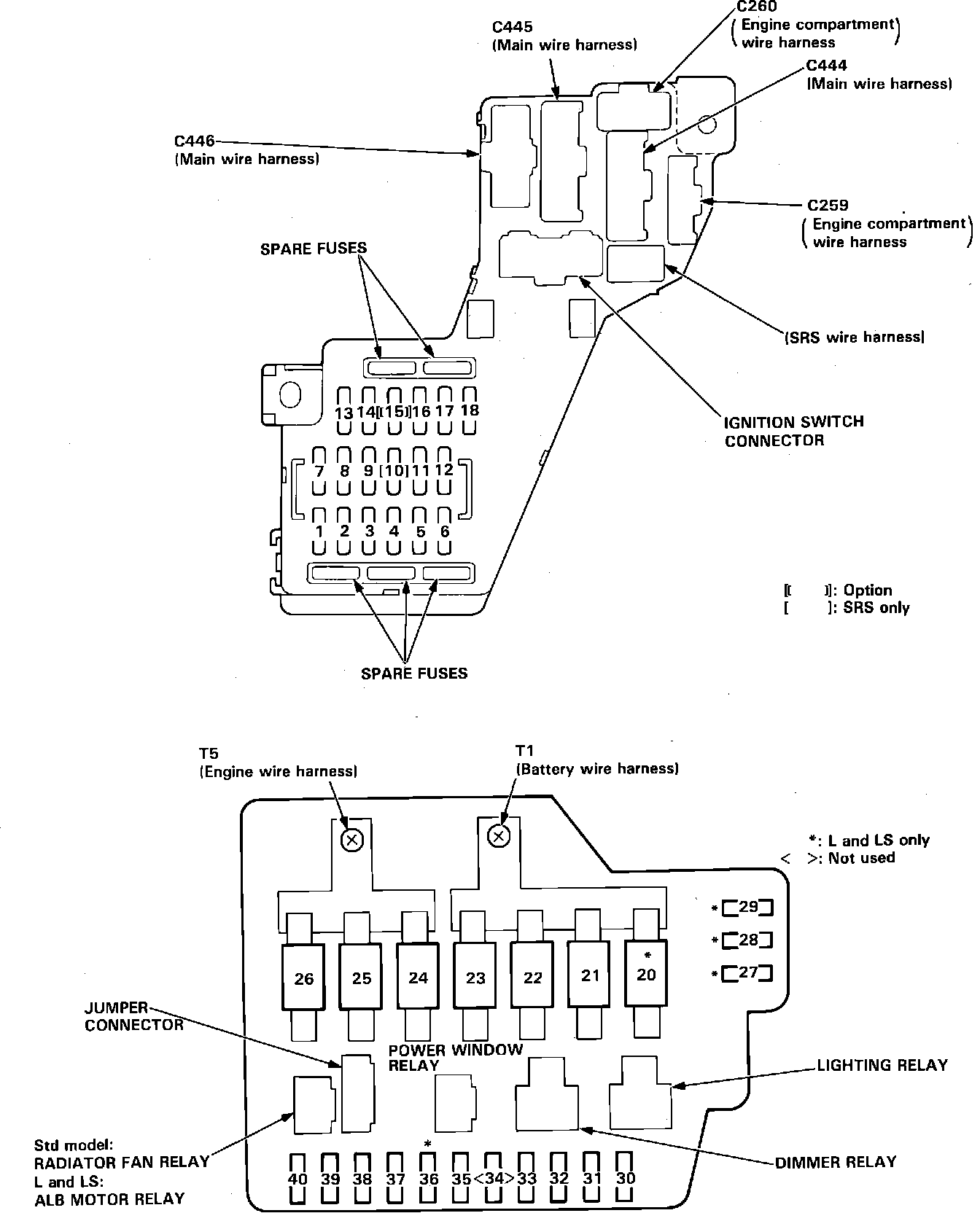

Fig. 22 Fuse Panel:
