COLD ENGINE

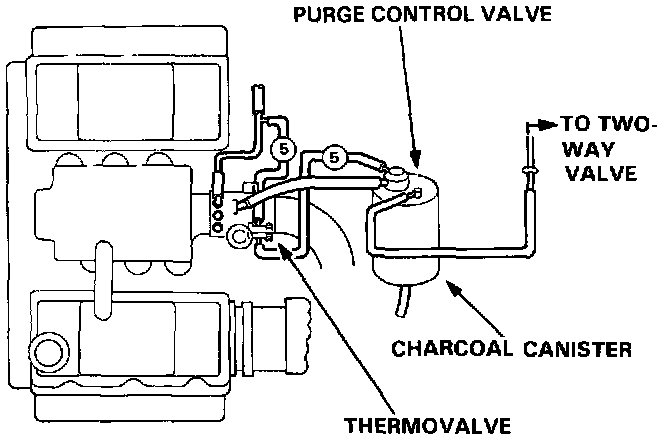

1. Check the vacuum line for proper connection, cracks, blockage or disconnected hose.

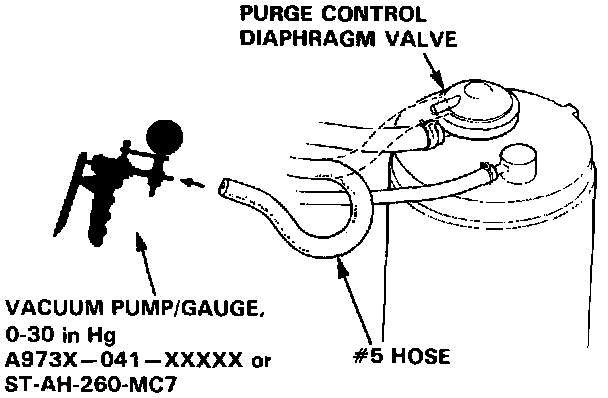

2. Disconnect #5 hose at the purge control diaphragm valve (on the charcoal canister) and connect a vacuum gauge to the hose.
3. Start the engine and allow it to idle.

NOTE: Engine coolant temperature must be below 70°C (158°F).

Vacuum should not be available.

- If there is vacuum, replace the thermovalve and retest.
