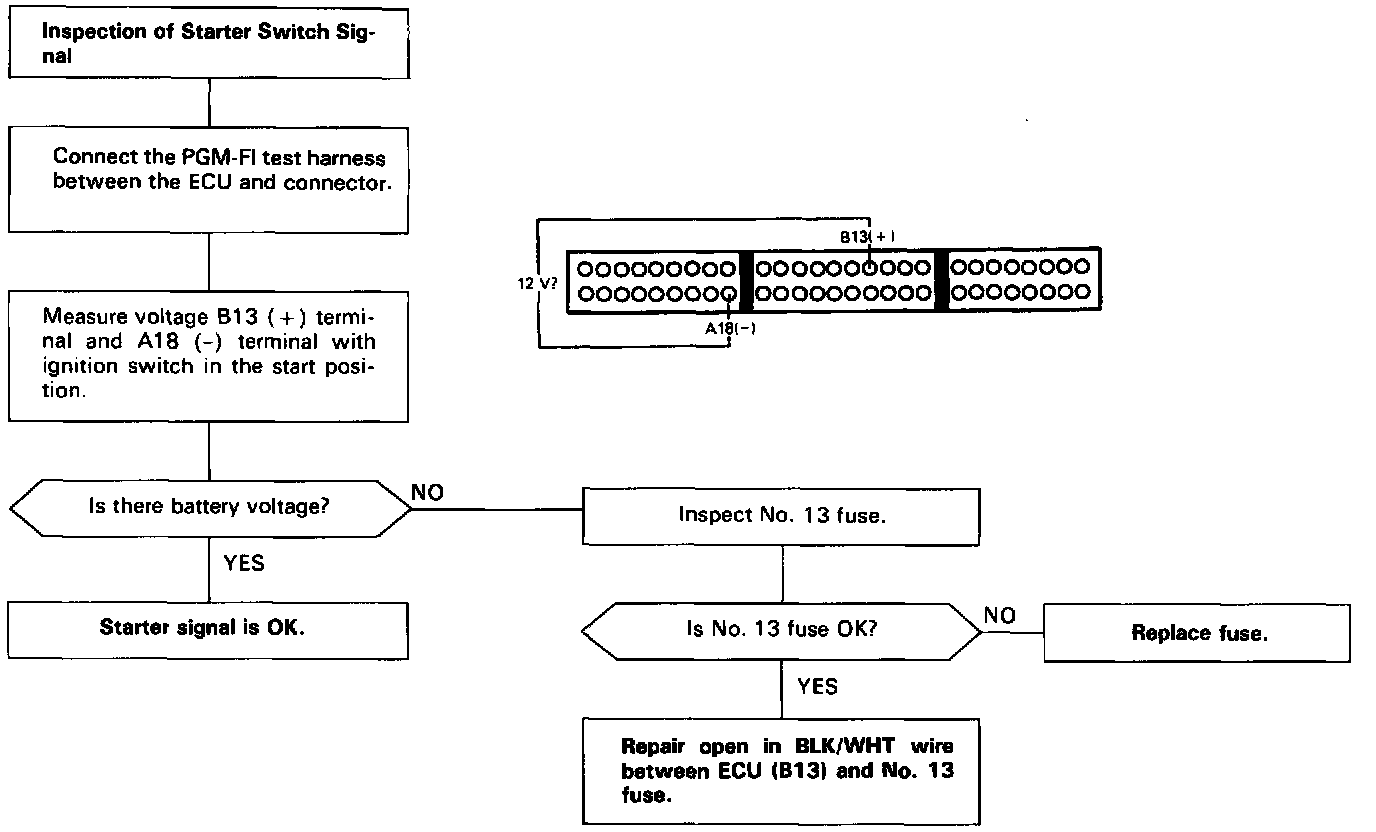

Starter Switch Signal Circuit Troubleshooting
>>
Sedan
Sedan
This signals the PGM-FI ECU when the engine is cranking. The ECU controls the current to the EACV to promote easy starting.
