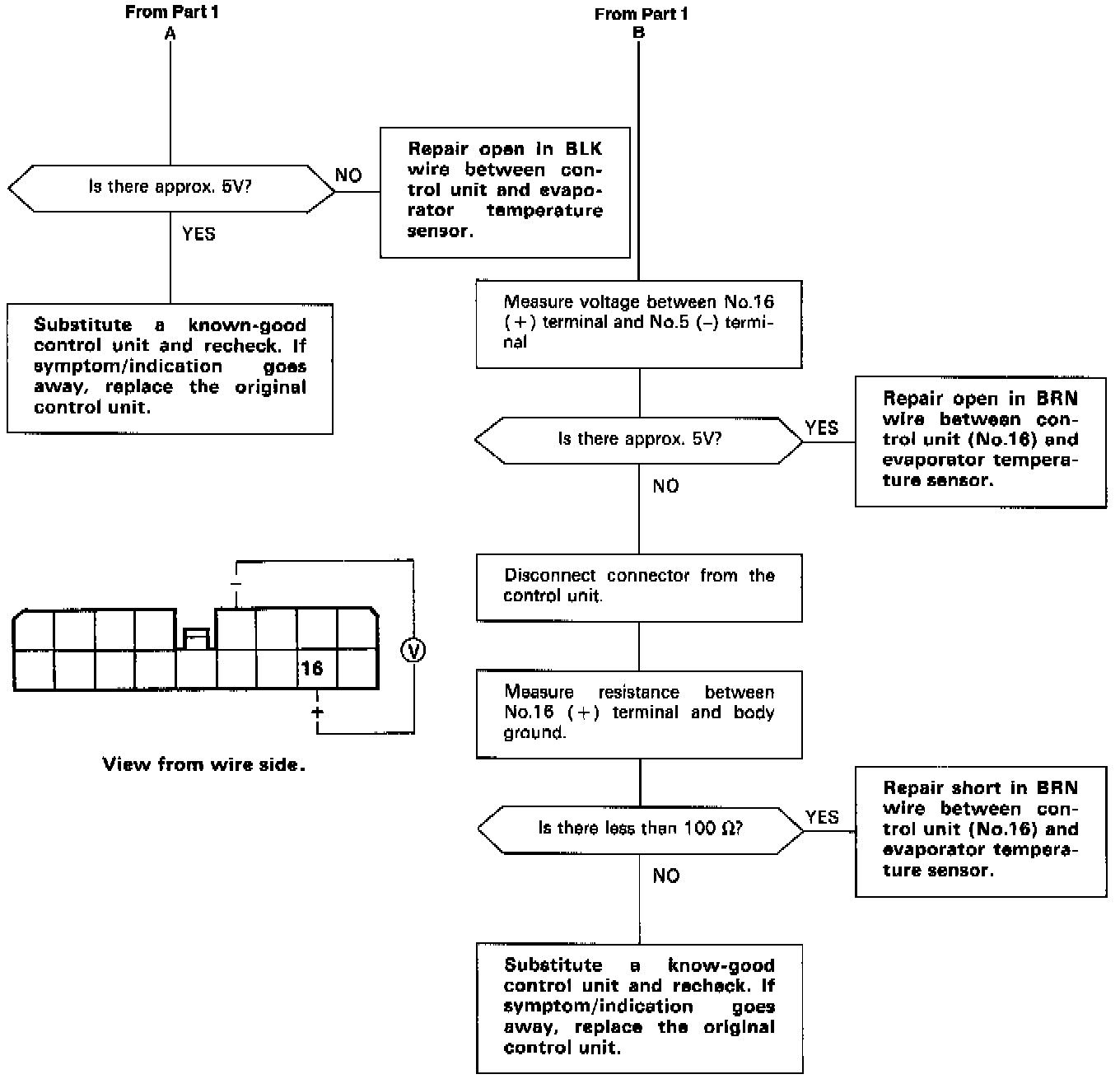

Self-diagnosis indicator light A comes on: Indicates a problem in the Evaporator Sensor circuit.

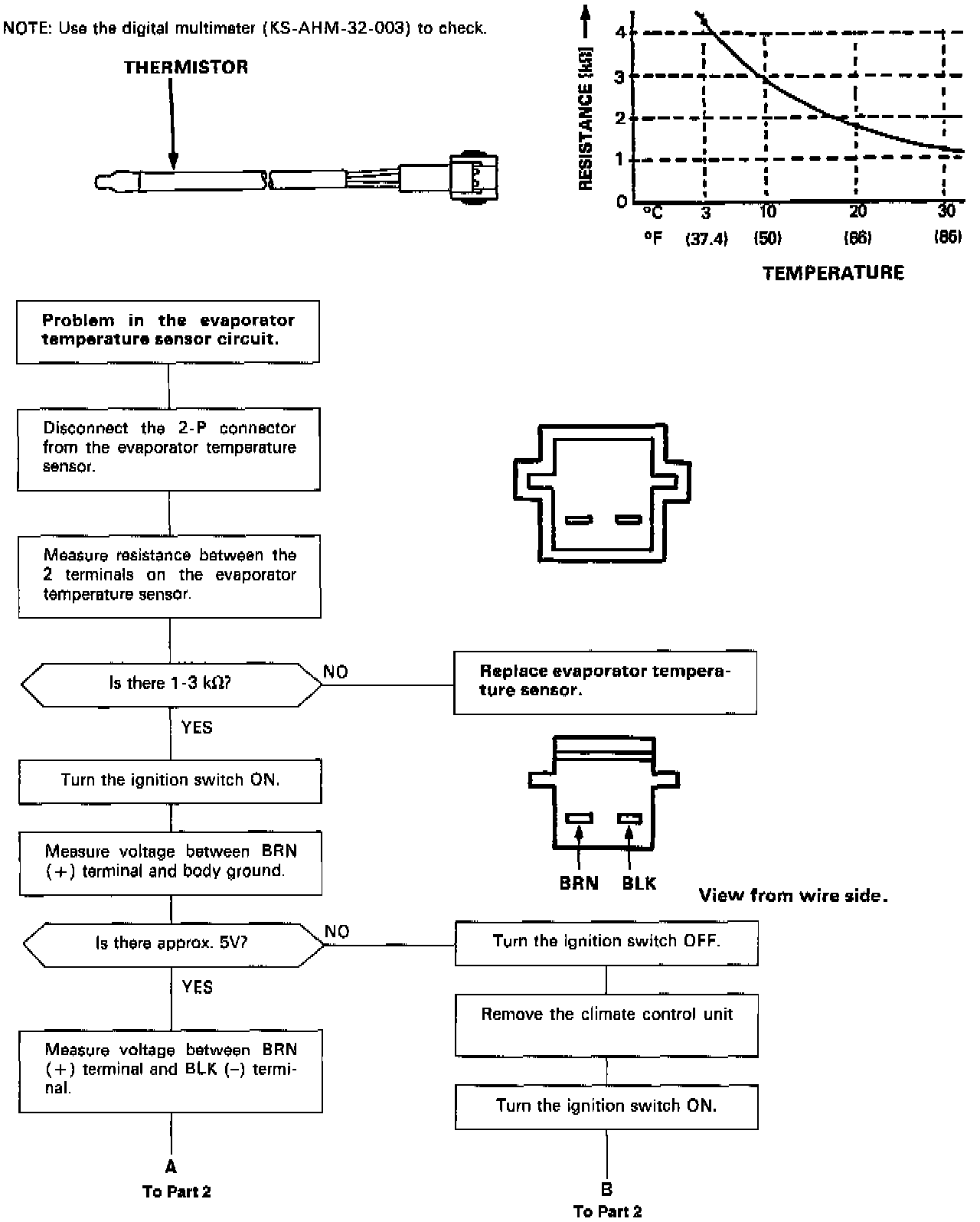

The evaporator temperature sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the evaporator outlet air temperature increases, as shown.

NOTE: Use the digital multimeter (KS-AHM-32-003) to check.
