Home >> Acura >> 1988 >> Legend Sedan V6-2675cc 2.7L SOHC FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Diagnostic Flowcharts - Automatic Climate Control - Sedan

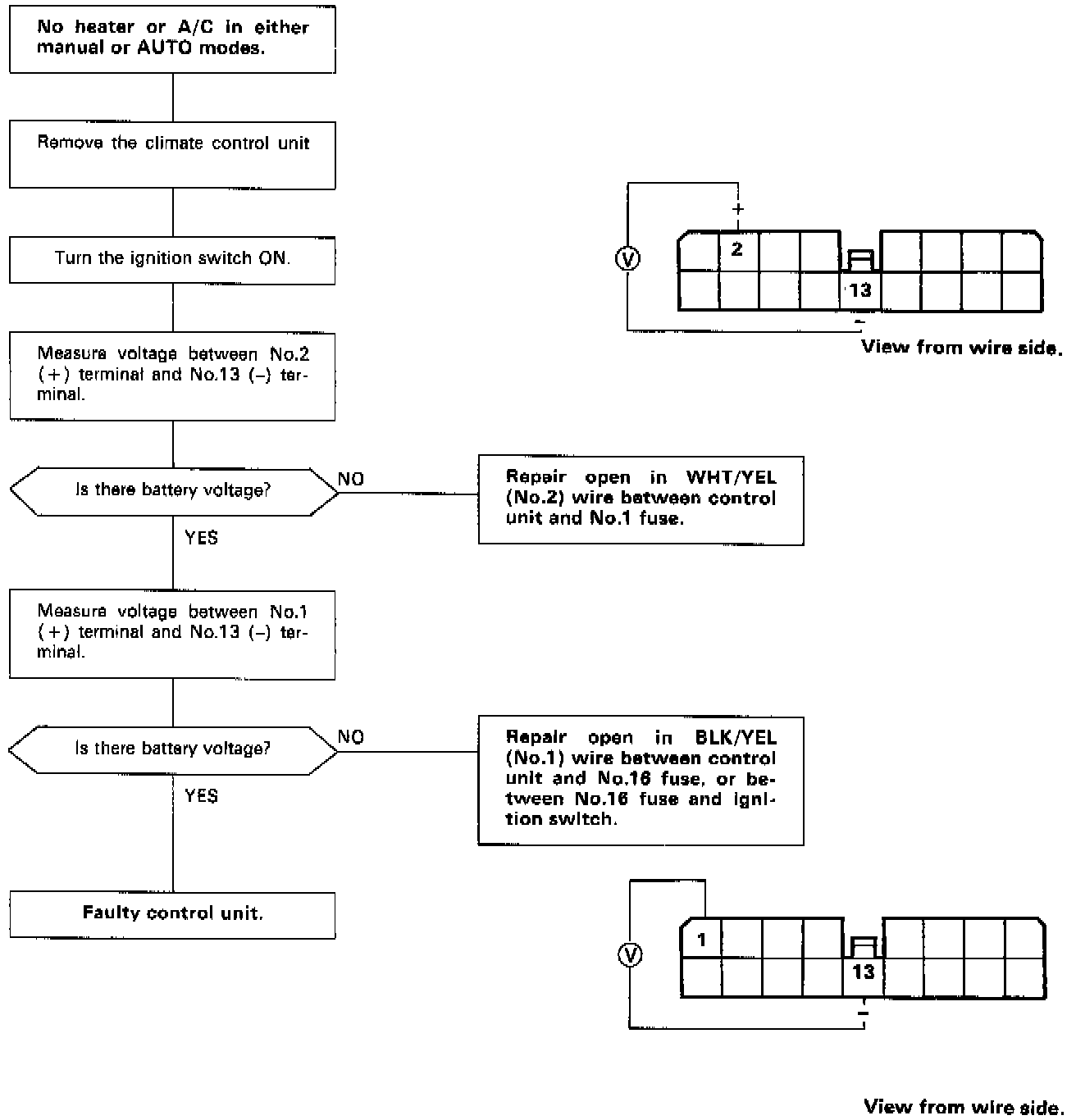

Diagnostic Flowcharts - Automatic Climate Control - Sedan

NOTE: Use a digital multimeter (KS-AHM-32-003) to check.
