Interior Lighting Module

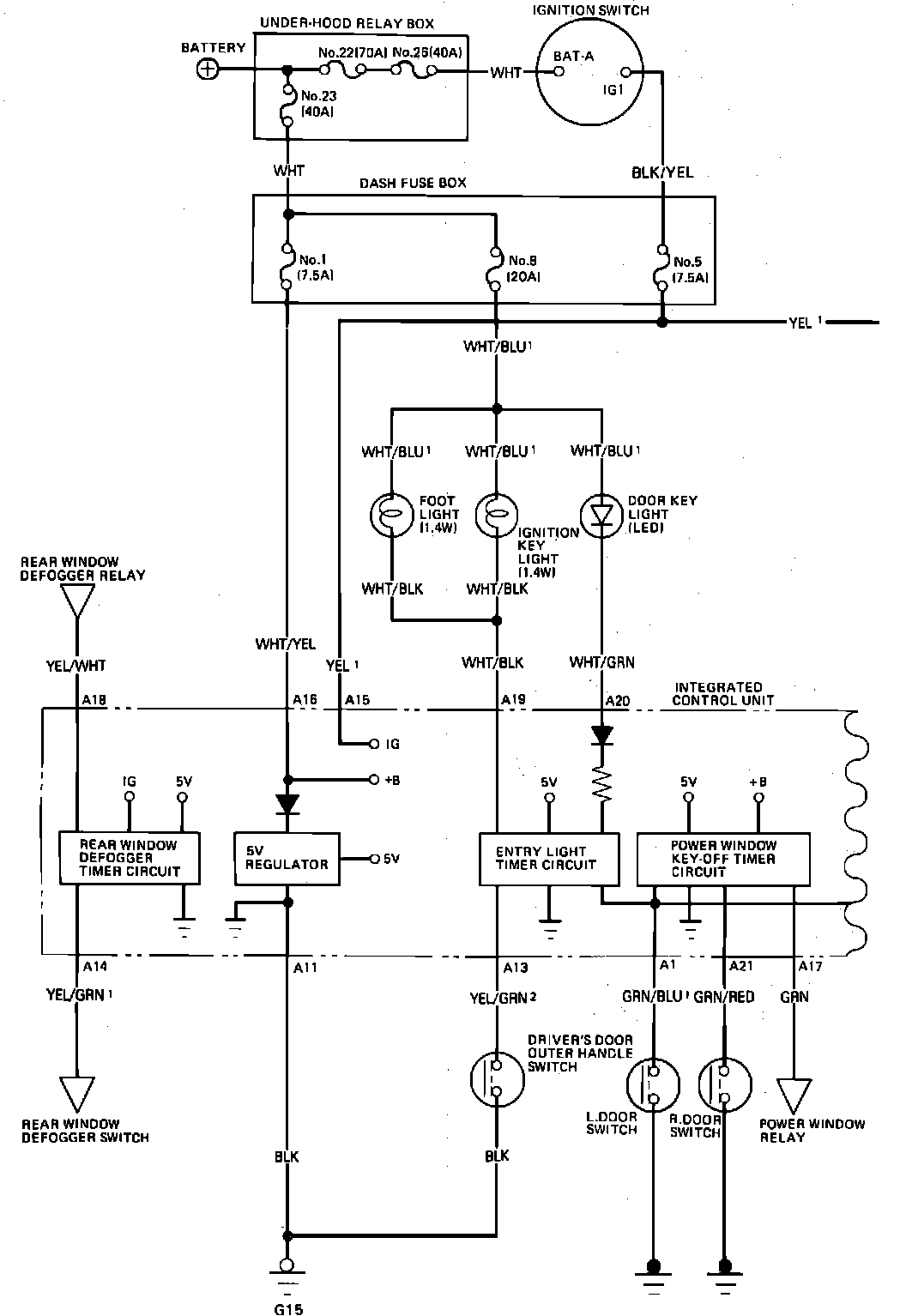

Fig. 32a Integrated Control Unit Wiring Diagram:

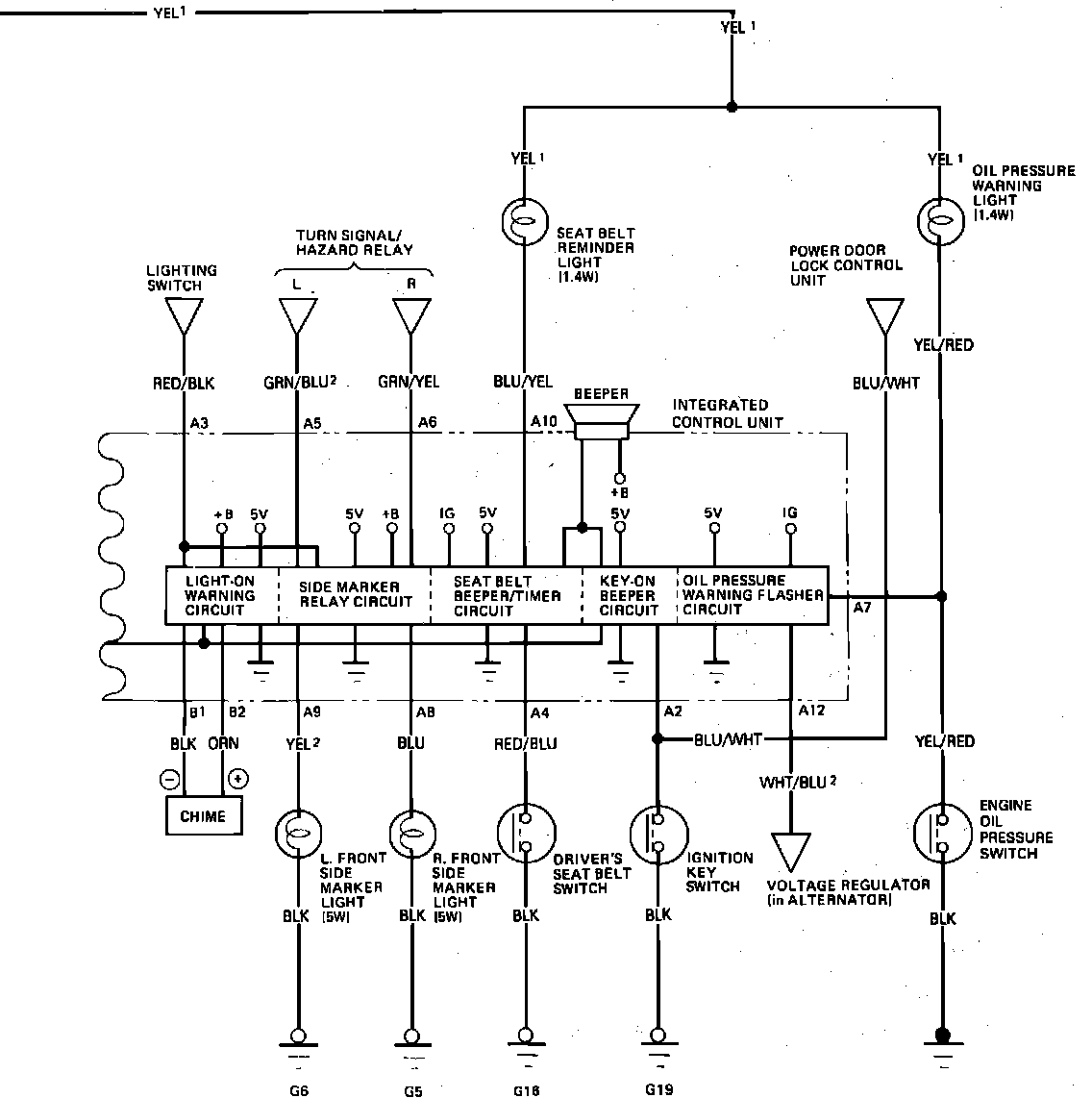

Fig. 32b Integrated Control Unit Wiring Diagram:
