CONSOLE
REPLACEMENT

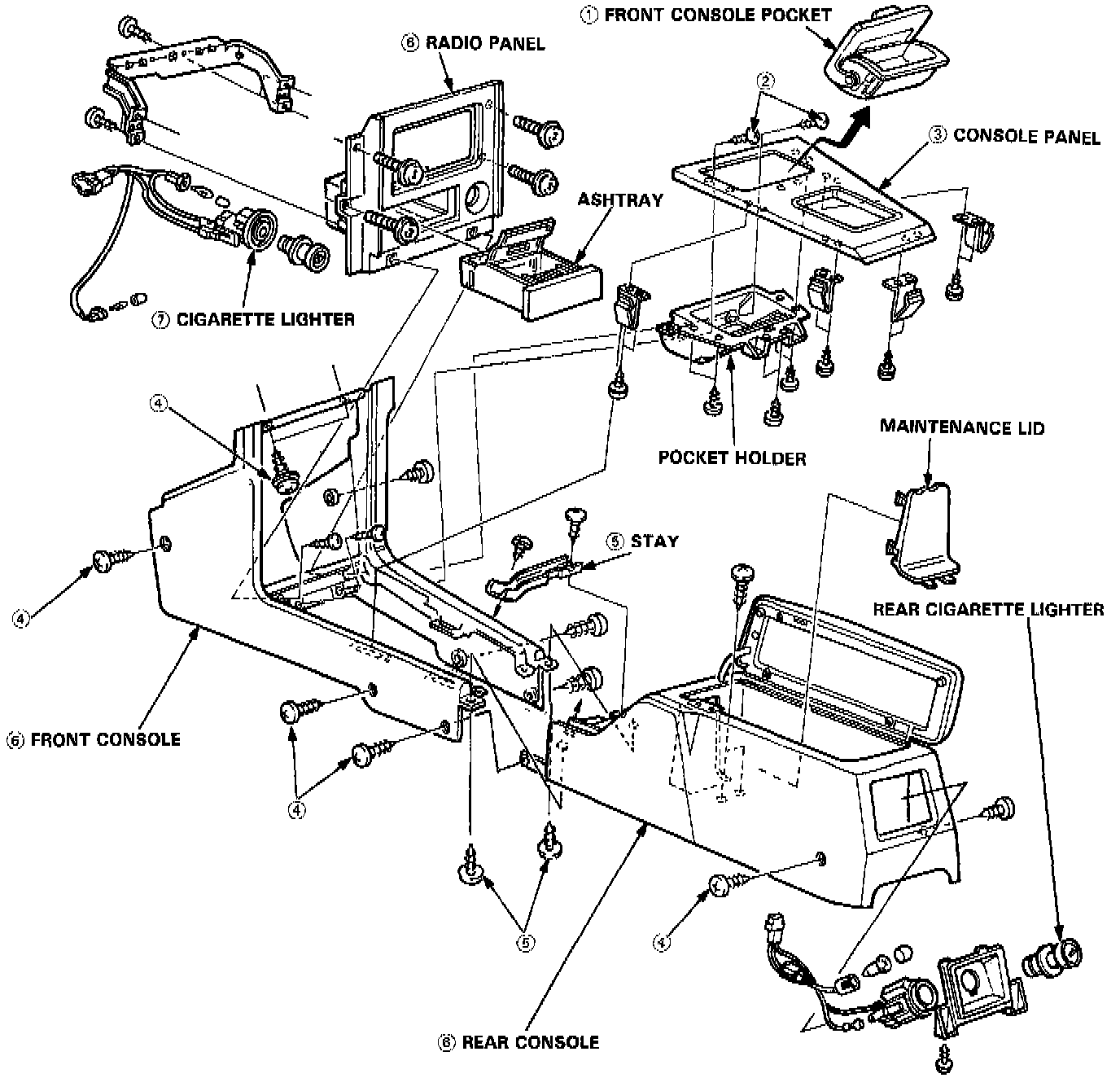

Disassemble in numbered sequence.
NOTE:
-
Lift up the parking brake lever.
-
After removing the front
console
, disconnect the wire harness inside the console.
-
For manual transmission models, remove the shift lever knob.
