P1 4-SPD A/T

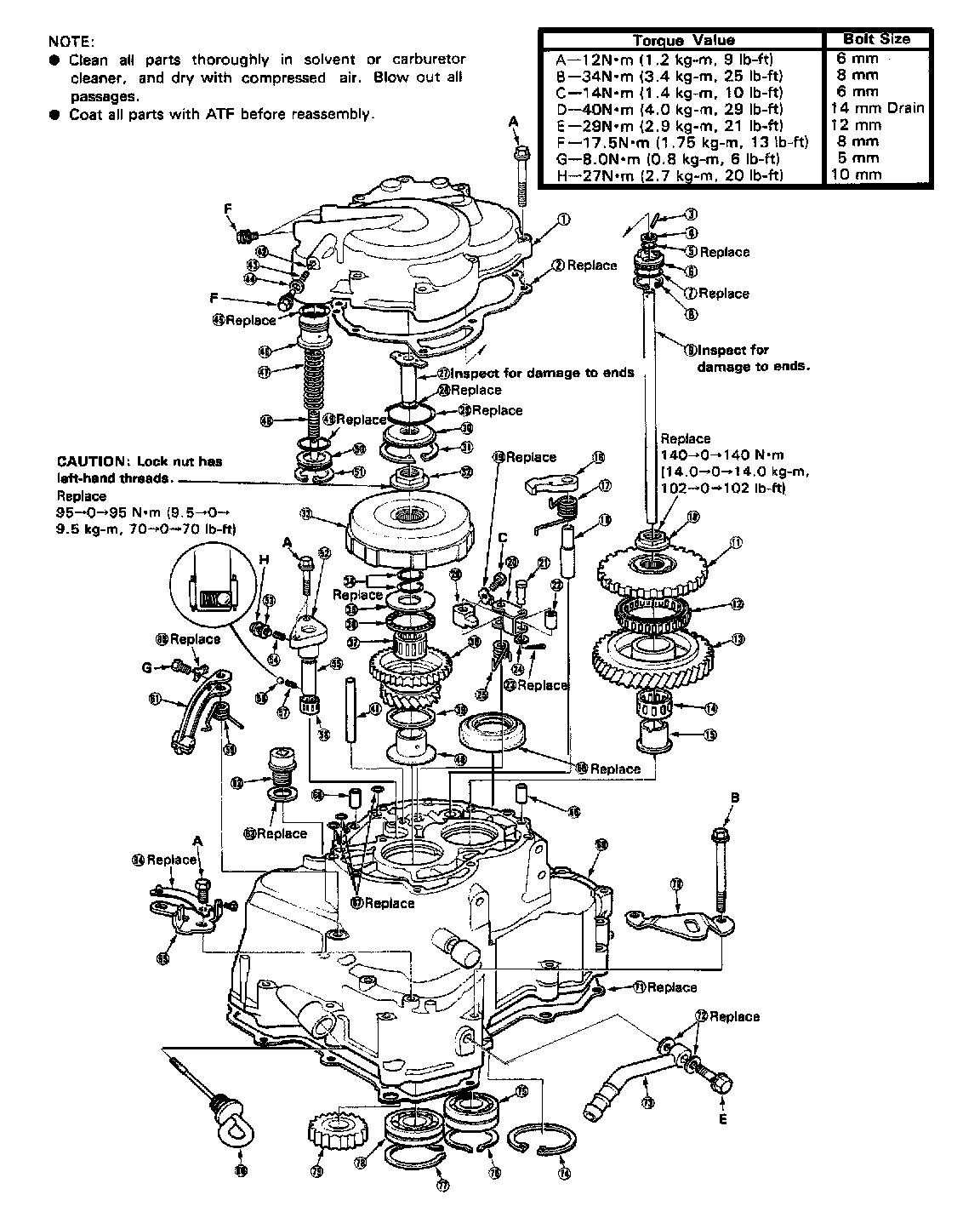

P1 4-spd A/T, Assembly Torque 1 Of 2:

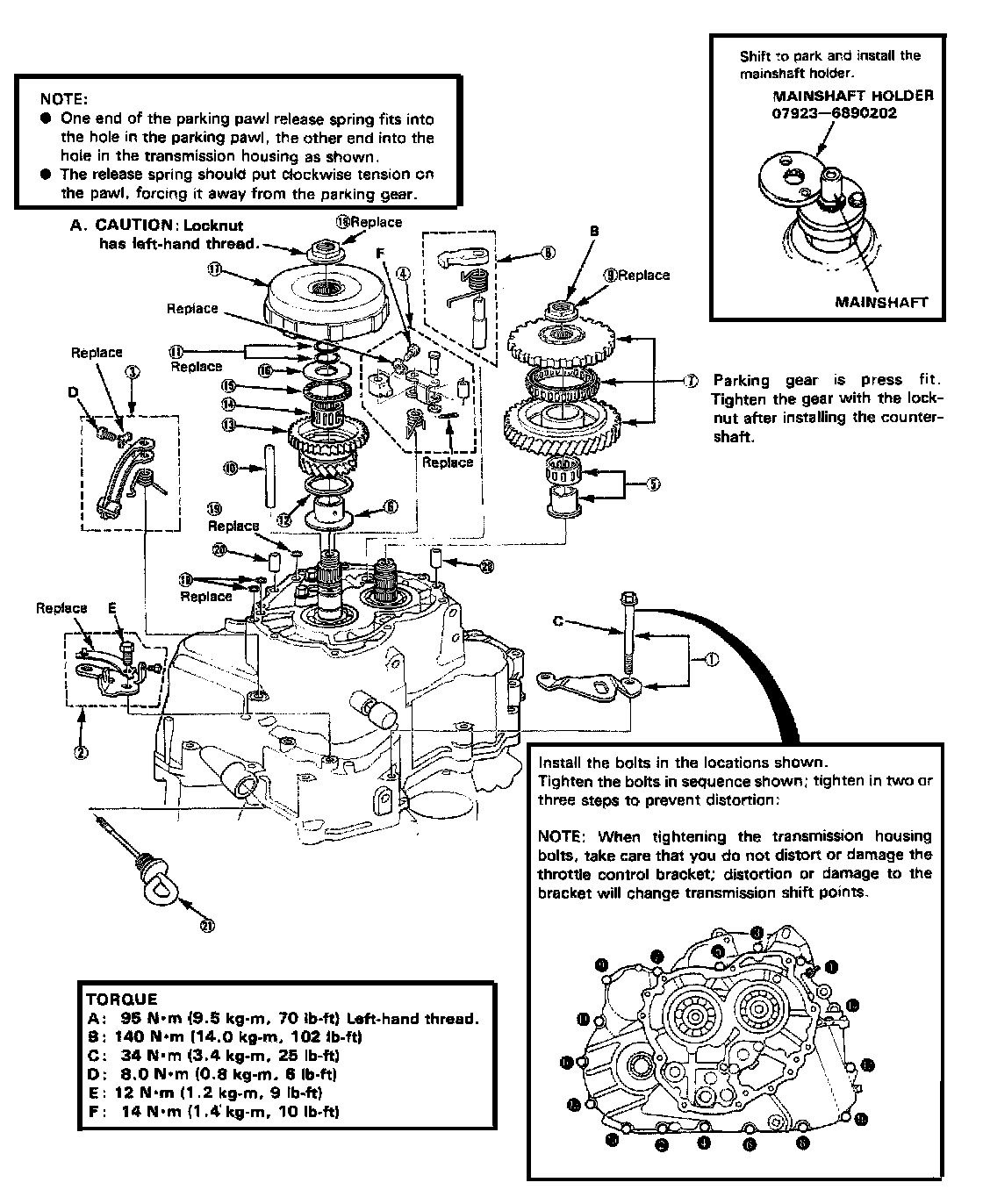

P1 4-spd A/T, Assembly Torque 2 Of 2:

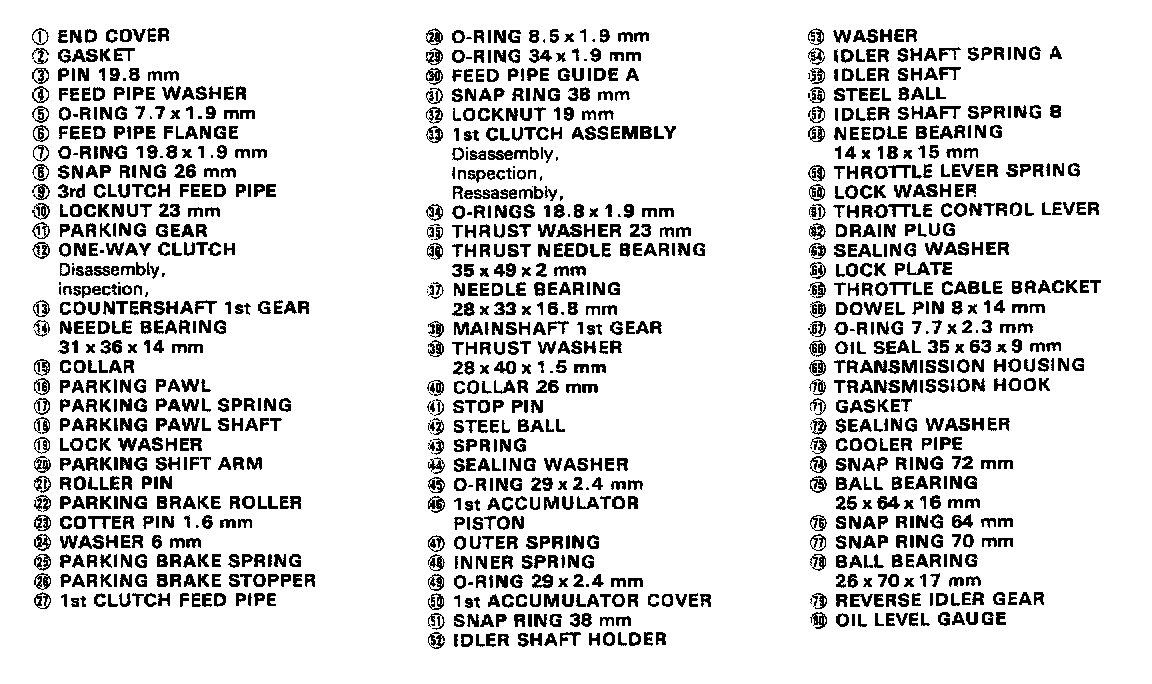

P1 4-spd A/T, Transmission Assembly:

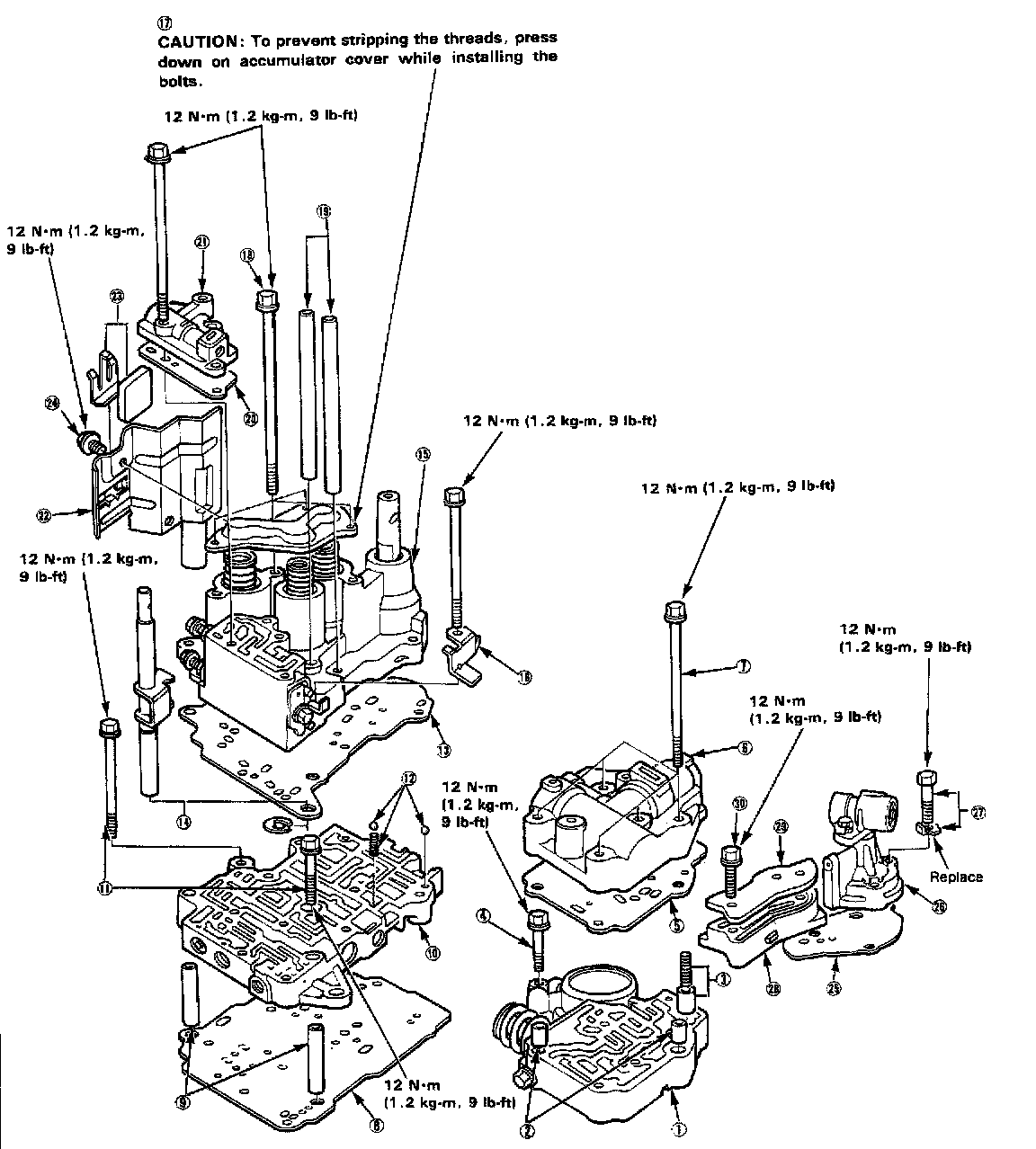

P1 4-spd A/T, Secondary Valve Body & Governor Valve:

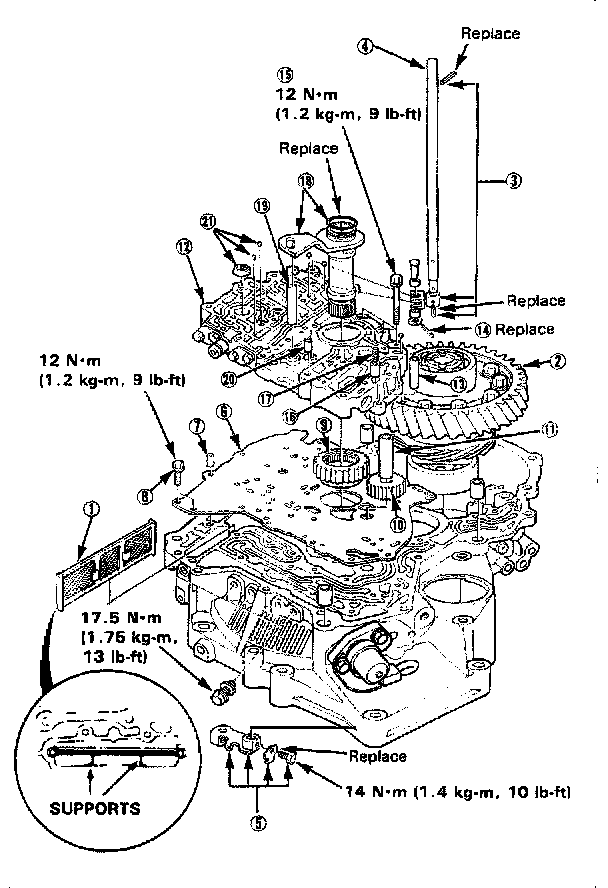

P1 4-spd A/T, Transmission Housing & Sequence:

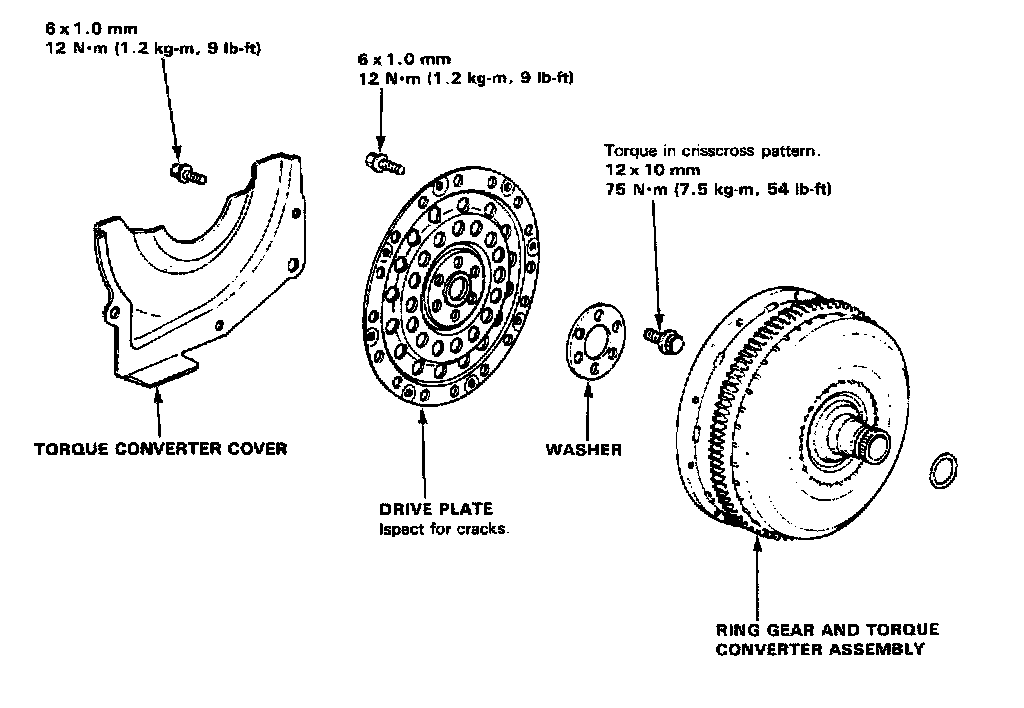

P1 4-spd A/T, Torque Converter Assembly:
