P1 4-SPD A/T

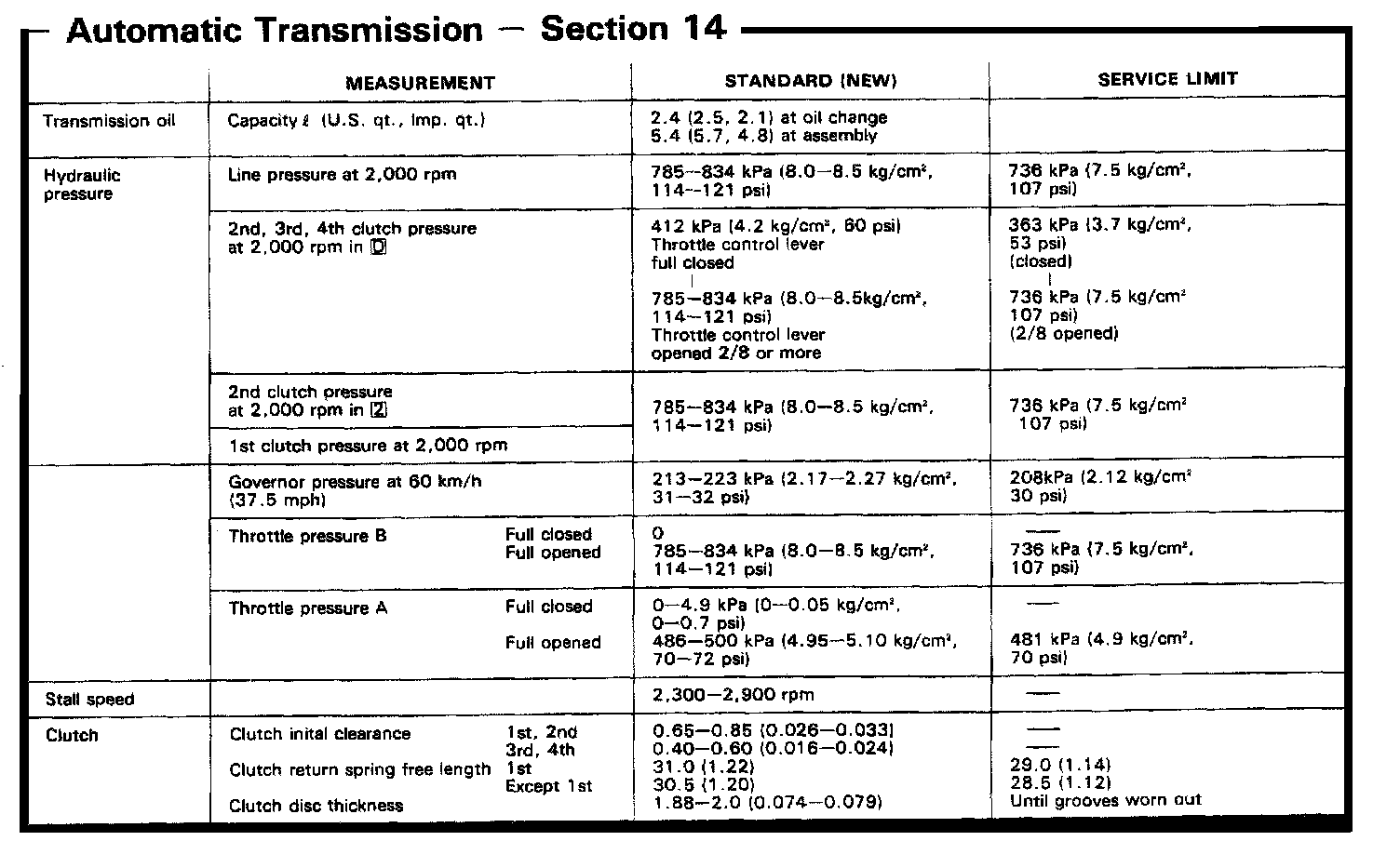

P1 4-spd A/T, Line Pressure, Stall Speed & Clutch:

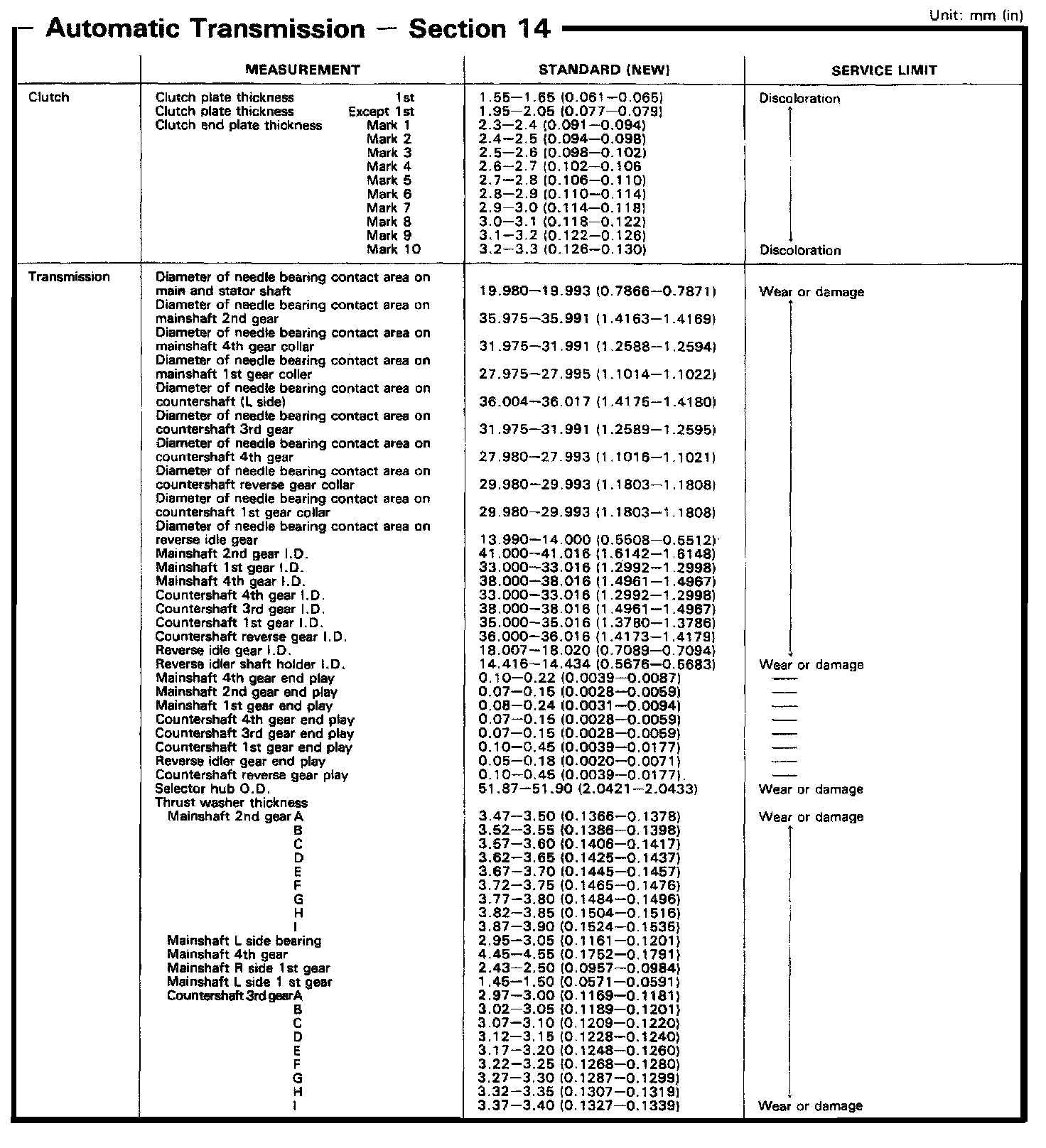

P1 4-spd A/T, Clutch Plate Thickness & Shaft Diameter/End Play:

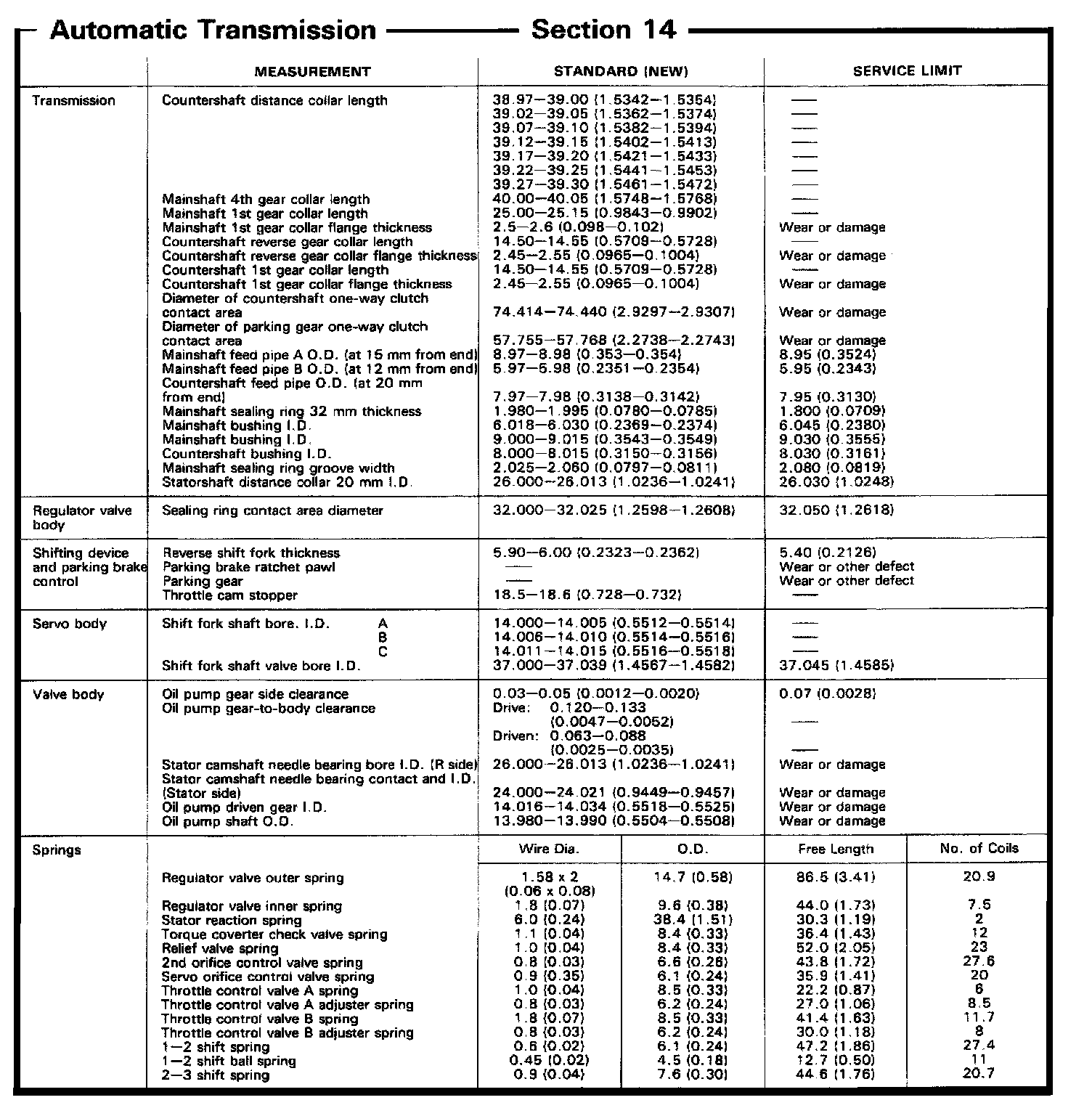

P1 4-spd A/T, Main/Counter Shaft & Valve Body:

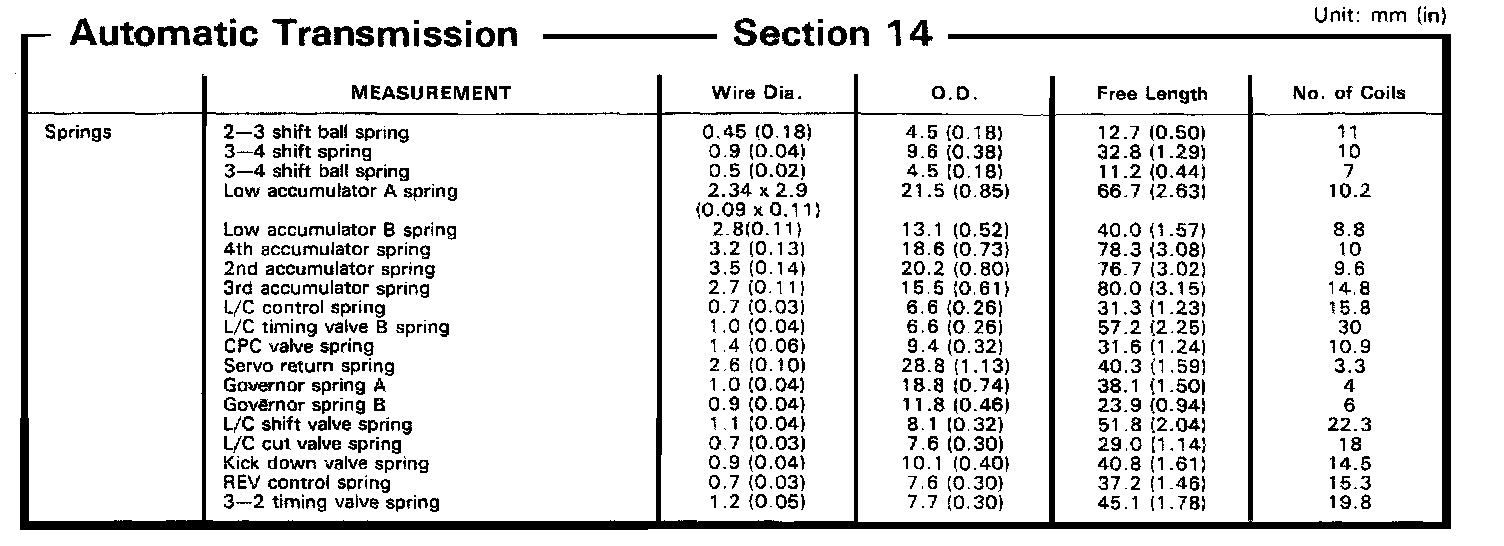

P1 4-spd A/T, Accumulator/ Valve Body Springs:

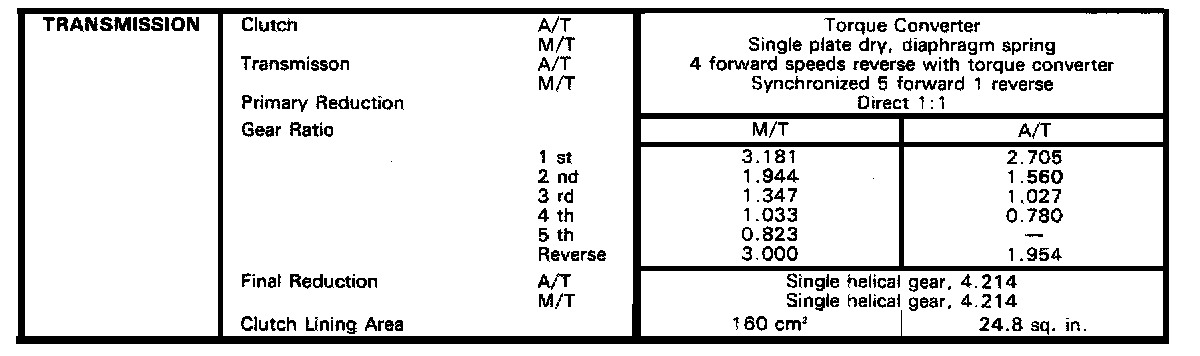

P1 4-spd A/T, Gear Ratios:
