Compressor Clutch Diode HVAC: Testing and Inspection

Diode Testing:

NOTE: Diodes pass current in only one direction.

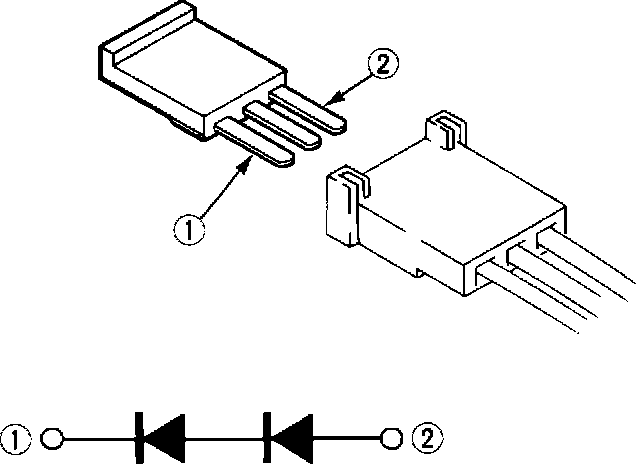

1. Check for continuity in both directions between terminals 1 and 2. There should be continuity in only one direction.
2. If not as specified, replace diode.
