Legend Coupe V6-2494cc 2.5L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Sedan
Sedan

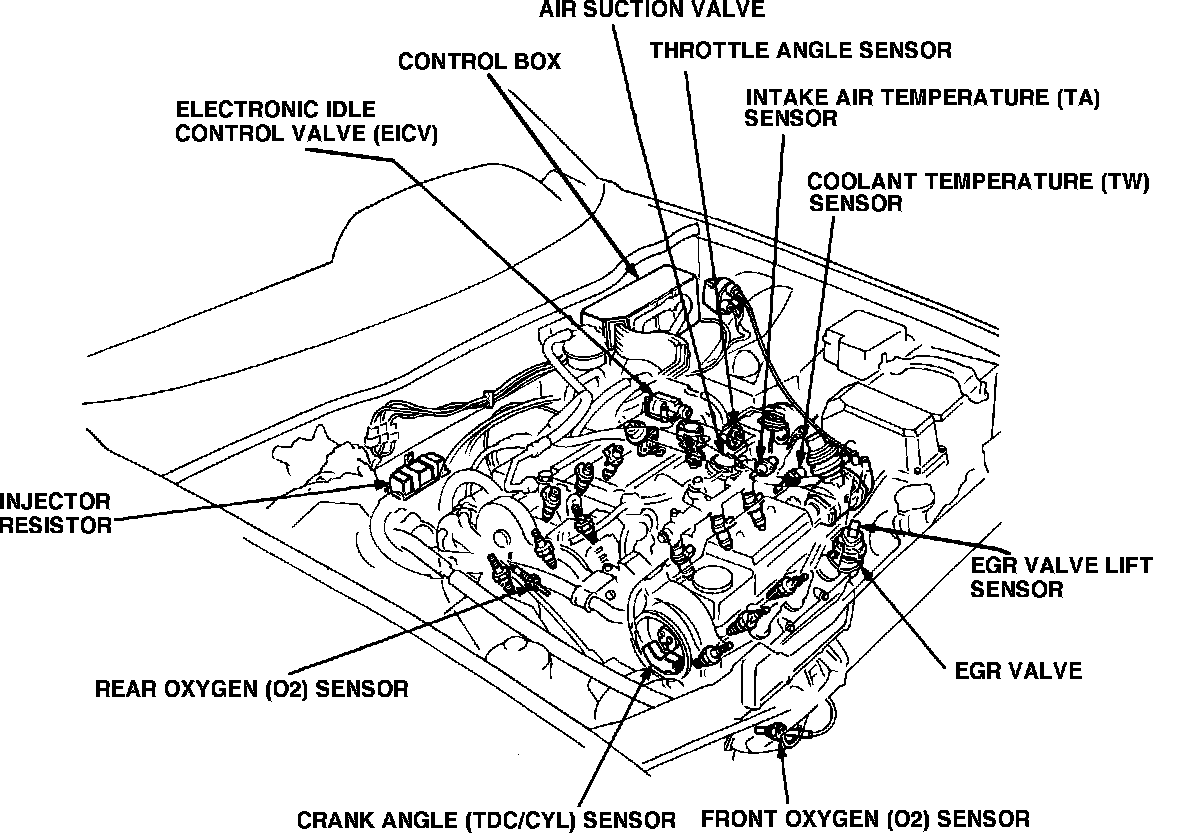

Fig. 2a Engine Compartment Reference Diagram:
