Transmission Controls Circuit Diagram
Transmission Controls Circuit Diagram

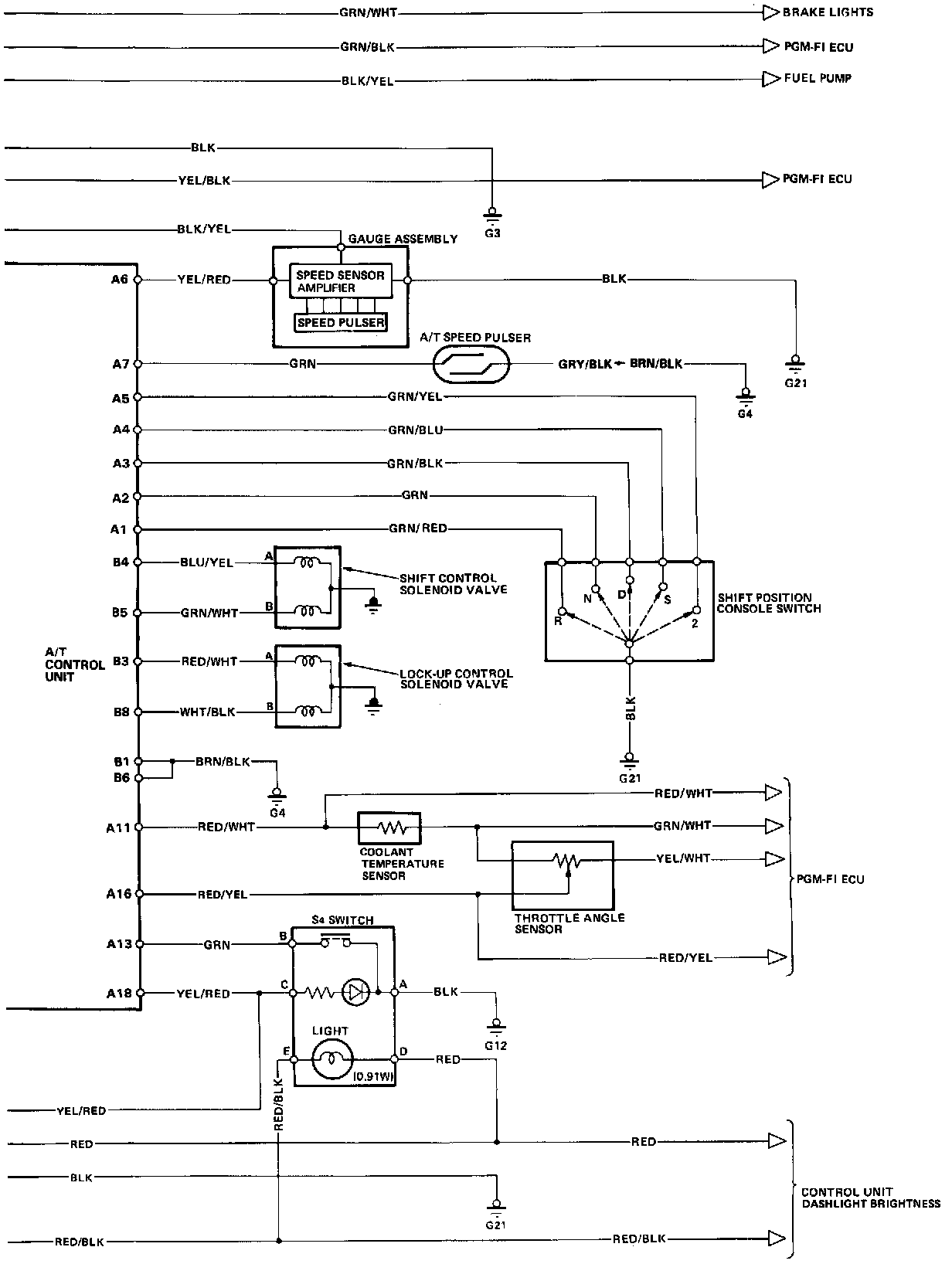

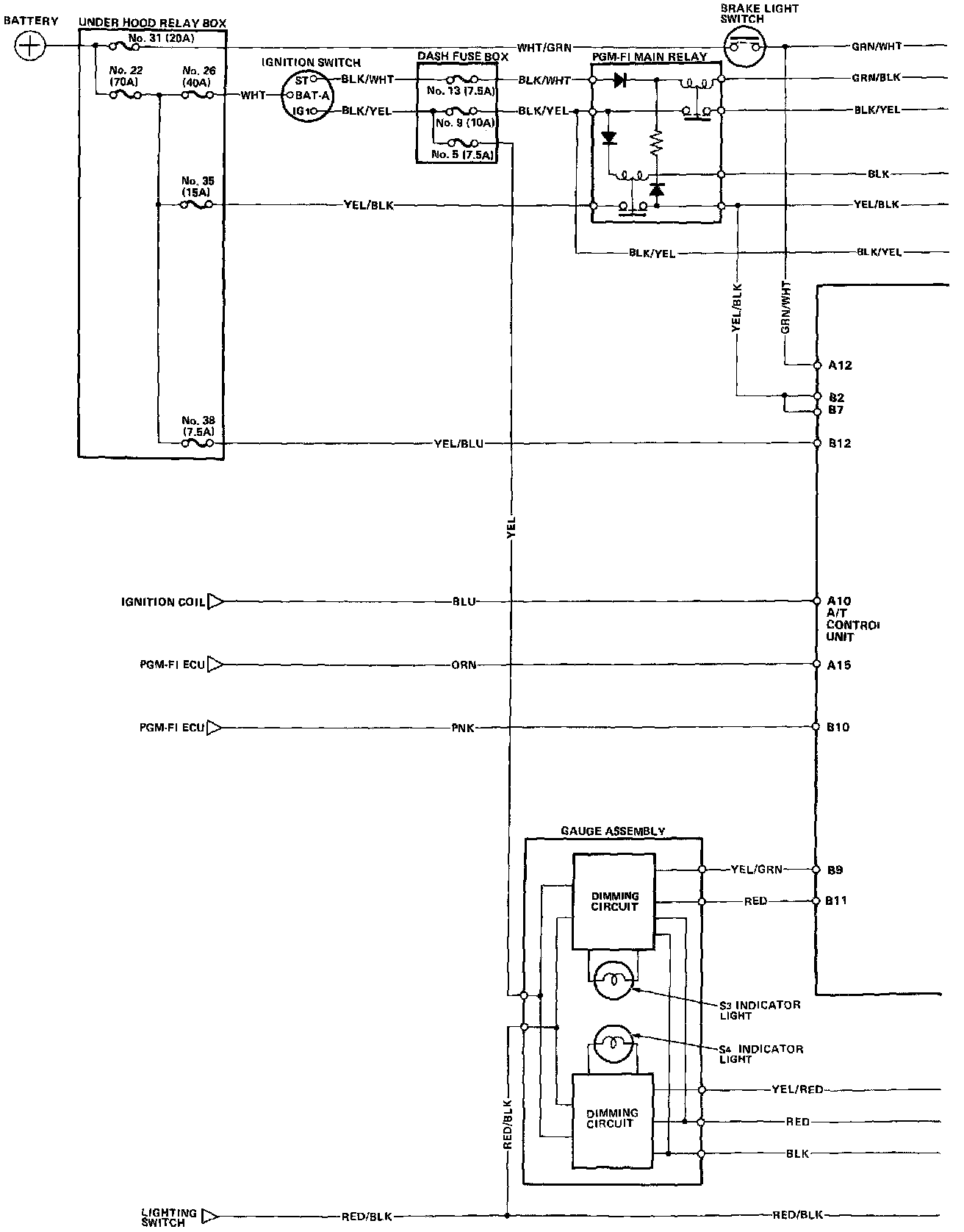

Electronic Control System Circuit Diagram - Coupe Only
