Sedan

CENTER CONSOLE REPLACEMENT

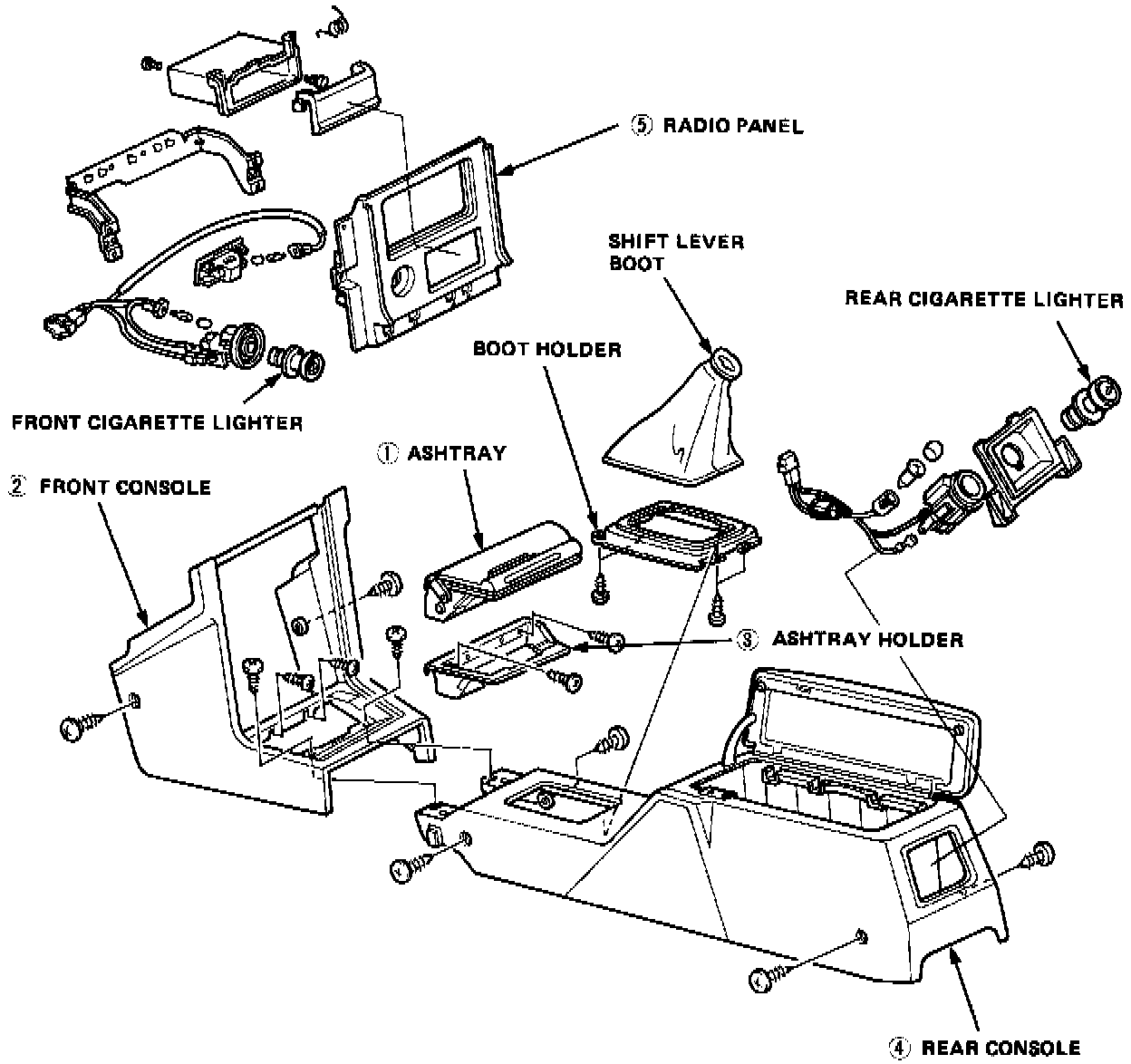

Disassemble in numbered sequence. (Refer to image.)

NOTE:
- Lift up the parking brake lever.
- After removing the front console, disconnect the wire harness inside the rear console.
- For manual transmission models remove the shift lever knob.
